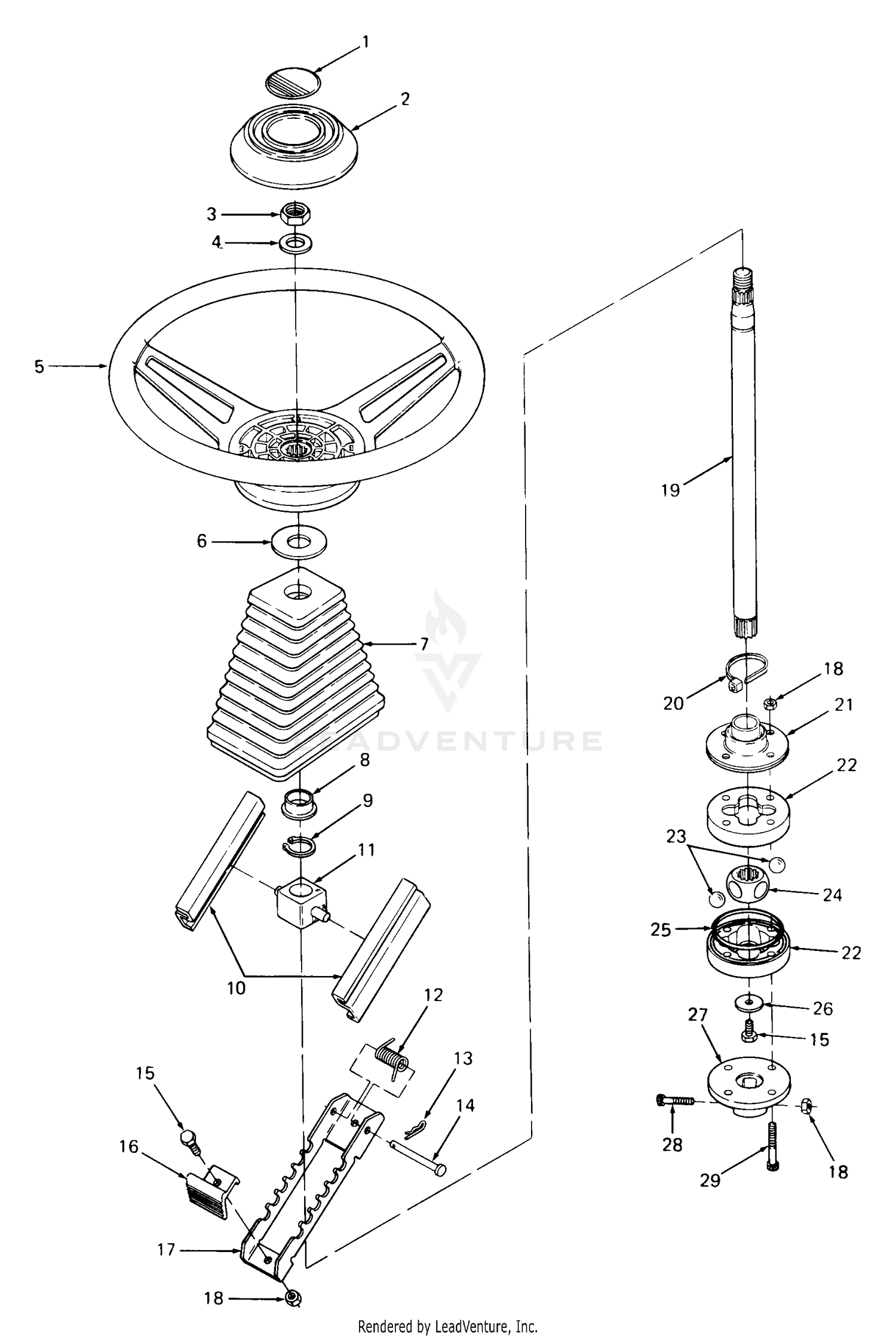

| Ref | Part Number | Description |
|---|
| 1 |
3234-12 |
SCREW-HHF Price: $0.61 |
| 1 |
779-3526 |
LABEL-STEE Not Available Price: |
| 2 |
69-8890 |
CAP-SPINDLE Price: $13.32 |
| 2 |
731-3104 |
CAP-STEERI Not Available Price: |
| 3 |
32151-10 |
RING-RETAINING Price: $0.81 |
| 3 |
712-3056 |
Nut, Hex Jam, 5/8-18 Price: $4.21 |
| 4 |
256-304 |
WASHER-THRUST Price: $3.94 |
| 4 |
736-0187 |
Washer, Flat, .640 X 1.24 X .06 Thk HDN Price: $4.02 |
| 5 |
69-6470 |
BUSHING-CASTOR Price: $5.82 |
| 5 |
731-3103 |
STEERING WHEEL Not Available Price: |
| 6 |
82-9850-03 |
AXLE-REAR This part replaces 82-9850. Price: $1,614.33 |
| 6 |
936-3094 |
FLAT WASHER .755X2.0X.0 Not Available This part replaces 736-3094. Price: |
| 7 |
735-3028 |
STEERING SHAFT BOOT Not Available Price: |
| 7 |
93-0311-03 |
SPINDLE-WHEEL, LH This part replaces 93-0311. Price: $378.60 |
| 8 |
69-2990 |
STUD-WHEEL Price: $4.85 |
| 8 |
741-0338 |
FLANGE BEARING Price: $8.37 |
| 9 |
117-8969 |
HUB ASM This part replaces 69-2960. Price: $336.24 |
| 9 |
716-0101 |
Ring, Snap Price: $3.37 |
| 10 |
254-72 |
BEARING-CUP, TAPERED Price: $9.67 |
| 10 |
731-3093 |
GUIDE Not Available Price: |
| 11 |
254-92 |
CONE-BEARING, OUTER Price: $15.84 |
| 11 |
731-3094 |
BUSHING-SHAFT GUIDE Not Available Price: |
| 12 |
69-9880 |
TIRE (23X10.5-12) 6-PLY Price: $189.93 |
| 12 |
732-3064 |
TORSION SPRING Not Available Price: |
| 13 |
23-7270 |
NUT-LUG Price: $10.37 |
| 13 |
714-0104 |
Pin, Internal Cotter Price: $3.90 |
| 14 |
217-116 |
WHEEL Price: $258.19 |
| 14 |
911-3295 |
CLEVIS PIN Not Available This part replaces 711-3295. Price: |
| 15 |
3272-13 |
PIN-COTTER Price: $0.25 |
| 15 |
710-3013 |
Screw, Hex Cap, 1/4-20 X .50 Lg GR5 Price: $4.02 |
| 16 |
69-2970 |
CAP-HUB Price: $20.74 |
| 16 |
731-3107 |
TILT CONTROL BUTTON Not Available Price: |
| 17 |
3220-7 |
NUT-JAM Price: $4.09 |
| 17 |
703-1805 |
PLATE-TILT CONTROL Not Available Price: |
| 18 |
912-0107 |
Hex L-Nut 1/4-20 Thd This part replaces 712-0107. Price: $4.06 |
| 18 |
93-0309 |
WASHER-TAB Price: $3.52 |
| 19 |
5108 |
VALVE This part replaces 232-27. Price: $6.29 |
| 19 |
738-3080 |
SHAFT-UPPER STEER 16.75 LG Not Available Price: |
| 20 |
254-107 |
CUP-BEARING, TAPERED Price: $9.93 |
| 20 |
725-0157 |
Strap, Tie Price: $3.46 |
| 21 |
254-106 |
CONE-BEARING, TAPERED Price: $19.51 |
| 21 |
735-3029 |
COUPLING BOOT Not Available Price: |
| 22 |
69-2980 |
SEAL Price: $33.94 |
| 22 |
748-3030A |
DRIVE COUPLING Not Available Price: |
| 23 |
110-6141-03 |
RH TIE ROD END ASM This part replaces 2116-4. Price: $148.18 |
| 23 |
723-3022 |
BALL-5/8 DIA Not Available Price: |
| 24 |
302-33 |
FITTING-GREASE Price: $2.31 |
| 24 |
748-3029 |
HUB-DRIVE Not Available Price: |
| 25 |
2412-7 |
CLAMP ASM Price: $23.32 |
| 25 |
721-3025 |
O-RING 2.489 ID x .070 Not Available Price: |
| 26 |
736-3092 |
Washer, Flat, .265 X 1.0 X .030 Thk HDN Price: $3.68 |
| 27 |
110-9719-03 |
TIE ROD ASM This part replaces 82-9260. Price: $380.21 |
| 27 |
748-3033 |
ADAPTER-STEERING Not Available Price: |
| 28 |
710-3213 |
SCREW 1/4-20X1.12 Not Available Price: |
| 29 |
3272-12 |
PIN-COTTER Price: $0.25 |
| 29 |
710-3211 |
Screw, Socket Hd Cap, 1/4-20 X 1.75 Lg Price: $4.52 |
| 30 |
32136-2 |
NUT-SHH Price: $3.55 |
| 31 |
32136-13 |
NUT-SHH Price: $2.85 |
| 32 |
3296-49 |
NUT-LOCK, NI Price: $4.93 |
| 33 |
48-6640 |
BEARING Price: $10.04 |
| 34 |
48-6660 |
WASHER Price: $5.22 |
| 35 |
98-7414 |
HOSE-HYD Price: $84.76 |
| 36 |
115-8014 |
CYLINDER-HYDRAULIC This part replaces 77-4800. Price: $1,015.97 |
| 37 |
98-7415 |
HOSE-HYD Price: $72.36 |
| 38 |
237-22 |
O-RING Price: $2.43 |
| 39 |
340-97 |
FITTING-ELBOW, 90 DEG Price: $36.21 |
| 40 |
237-78 |
O-RING Price: $3.85 |
| 41 |
60-3670 |
PIN Price: $12.56 |
| 42 |
82-9210 |
SHAFT-PIVOT Price: $187.73 |
| 44 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 45 |
106-6895-03 |
BALL JOINT ASM This part replaces 69-9810. Price: $258.08 |
| 47 |
93-0310-03 |
SPINDLE-WHEEL, RH This part replaces 93-0310. Price: $584.69 |
| 48 |
58-6520 |
DECAL-GREASE Price: $2.57 |
| 49 |
302-11 |
FITTING-LUBE, 45 DEG Price: $1.56 |
| 50 |
93-0307 |
NUT-LOCK, RETAINER Price: $3.36 |
| 503213512 |
503213512 |
SCREW Price: $2.99 |
| 503217520 |
503217520 |
SCREW Price: $3.99 |
| 503871802 |
576469501 |
STARTER-CYLINDER COVER KIT This part replaces 503871802. Price: $89.99 |
| 503961301 |
503961301 |
SCREW MT5X11 Price: $0.50 |
| 503972101 |
503972101 |
COVER Price: $5.99 |
| 537104401 |
537104401 |
PROTECTOR Price: $8.99 |
| 537320801 |
537320805 |
MUFFLER COVER This part replaces 537320801. Price: $17.99 |
| 537353313 |
537353313 |
DECAL CYLINDER COVER Price: $3.99 |
| 537353314 |
503981241 |
DECAL, CYLINDER COVER 323L This part replaces 537353314. Price: $3.99 |
| 537353315 |
537353315 |
DECAL CYLINDER COVER Price: $3.99 |
| 537353316 |
537353316 |
DECAL CYLINDER COVER Price: $2.99 |
| 537353317 |
537353317 |
DECAL CYLINDER COVER Price: $3.99 |
| 537353320 |
537353320 |
DECAL CYLINDER COVER Price: $2.99 |
| 537353322 |
537353322 |
DECAL CYLINDER COVER Price: $3.99 |
| 537353323 |
537353323 |
DECAL CYLINDER COVER Price: $2.99 |
| 537353324 |
537353324 |
DECAL CYLINDER COVER Price: $3.99 |
| 537353325 |
537353325 |
DECAL CYLINDER COVER Price: $3.99 |
| 537353326 |
537353326 |
DECAL CYLINDER COVER Price: $3.99 |
