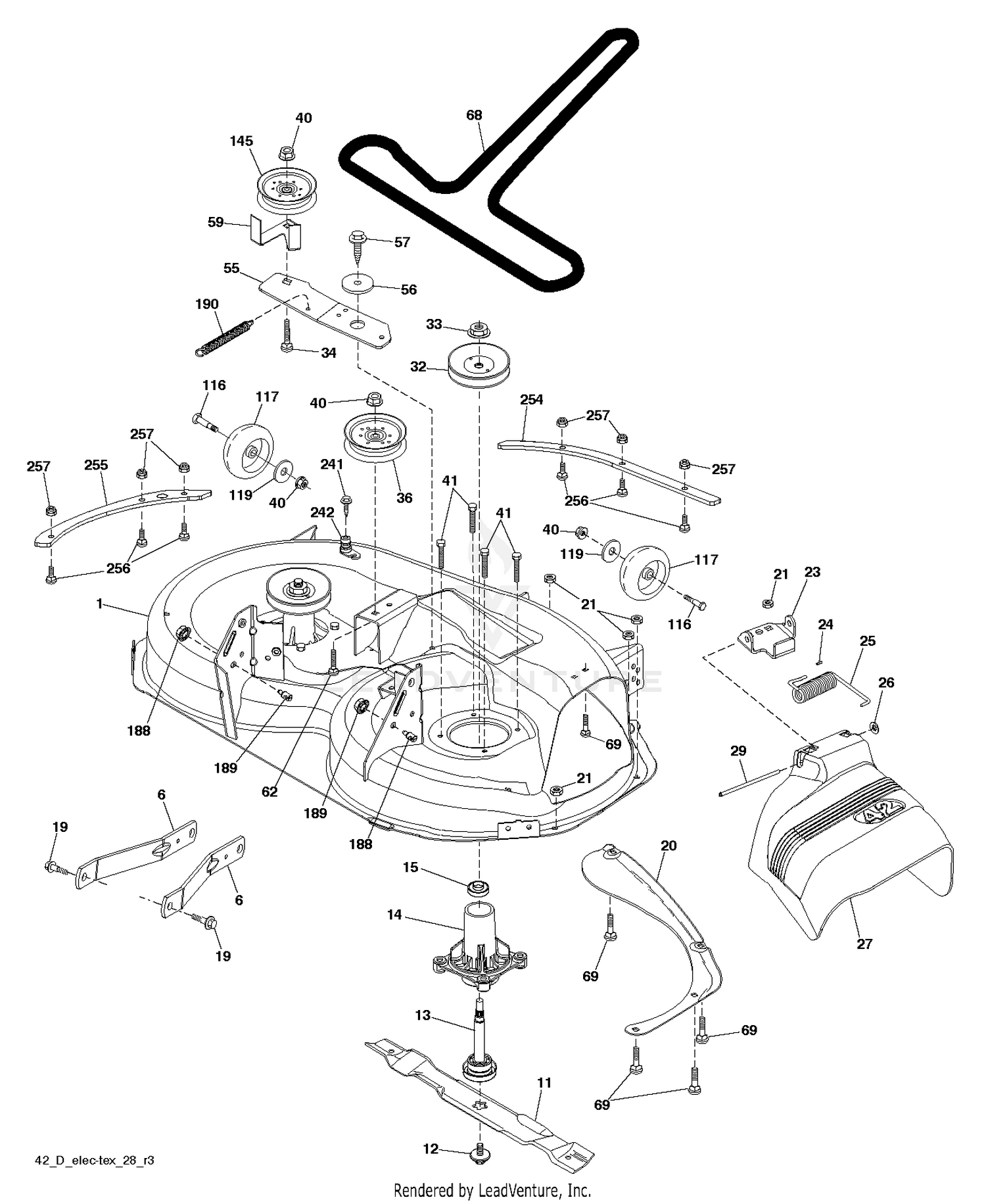

| Ref | Part Number | Description |
|---|
| 1 |
598602801 |
Decks This part replaces 532441275. Price: $349.99 |
| 1 |
93-7974-03 |
PLATE-BOX, BATTERY This part replaces 93-7974. Price: $87.76 |
| 2 |
33105-030 |
SCREW-HHF Price: $1.56 |
| 3 |
2412-108 |
CLAMP-WORM Price: $1.29 |
| 4 |
110-4113 |
HOSE-FUEL This part replaces 63-7627. Price: $9.44 |
| 5 |
33005-00 |
NUT-HF Price: $0.68 |
| 6 |
108-3282 |
HOSE-FUEL This part replaces 92-7522. Price: $36.93 |
| 6 |
529846401 |
SERVICE.KIT ARM.SUSPENSION.MOW This part replaces 532195186. Price: $14.99 |
| 7 |
66-8121 |
STANDPIPE Price: $23.18 |
| 8 |
46-6550 |
FITTING-ELBOW, 90 DEG Price: $37.39 |
| 9 |
46-6560 |
BUSHING Price: $2.94 |
| 10 |
93-3102 |
CAP-FUEL Price: $24.02 |
| 11 |
2412-36 |
CLAMP-HOSE Price: $1.28 |
| 12 |
304-46 |
DRAINCOCK Price: $7.55 |
| 12 |
532193003 |
BOLT.WASHER.ASM.7/16-2 This part replaces 584309301. Price: $6.99 |
| 13 |
33105-025 |
SCREW-HHF Price: $1.56 |
| 13 |
587819701 |
KIT.MANDREL.NONGREASE.TALL This part replaces 587256501. Price: $49.99 |
| 14 |
587819701 |
KIT.MANDREL.NONGREASE.TALL This part replaces 532187281. Price: $49.99 |
| 14 |
63-8410 |
WASHER Price: $1.76 |
| 15 |
240-11 |
BUSHING-FLANGE Price: $5.32 |
| 15 |
585323901 |
BEARING.MANDREL.TOP.EXTENDED Price: $12.99 |
| 16 |
105-7949 |
TANK-FUEL This part replaces 92-7422. Price: $768.96 |
| 17 |
62-7650 |
GASKET Price: $4.28 |
| 18 |
63-7640 |
SENDER-FUEL Price: $94.22 |
| 19 |
3253-15 |
WASHER-LOCK Price: $1.49 |
| 19 |
532196539 |
BOLT.SHOULDER Price: $5.99 |
| 20 |
32122-24 |
SCREW-PTH Price: $0.27 |
| 21 |
110-6184 |
HOSE-FUEL This part replaces 92-7521. Price: $49.59 |
| 21 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 23 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 23 |
532192557 |
BRKT.DEFLECTOR.38"2005+ Price: $7.99 |
| 24 |
532105304 |
CAP-SLEEVE LT Price: $3.99 |
| 25 |
532197026 |
SPRING.TORSION.DEFLECT Price: $8.99 |
| 26 |
532110452 |
NUT PUSH M Price: $2.99 |
| 27 |
532403004 |
SHIELD.DEFLECTOR.MOWER.42"BLAC Price: $29.99 |
| 29 |
595297001 |
Rods This part replaces 532131491. Price: $4.99 |
| 32 |
532173436 |
PULLEY MANDREL This part replaces 532153535. Price: $14.99 |
| 33 |
596134801 |
Nuts This part replaces 532400234. Price: $1.00 |
| 34 |
596136101 |
GSPW Bolts This part replaces 872110612. Price: $2.99 |
| 36 |
532196106 |
PULLEY.IDLER.2006 This part replaces 532197379. Price: $34.99 |
| 40 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 41 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 Price: $3.99 |
| 55 |
531171201 |
SERVICE KIT IDLER.ARM.42" This part replaces 532437110. Price: $5.99 |
| 56 |
532199092 |
SPACER.RETAINER Price: $5.99 |
| 57 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 59 |
531165901 |
SERVICE KIT GUARD This part replaces 532141043. Price: $4.99 |
| 62 |
596136301 |
Bolts This part replaces 872110616. Price: $2.99 |
| 68 |
532144959 |
BELT V SECONDARY Price: $37.99 |
| 69 |
596136401 |
Bolts This part replaces 872140505. Price: $2.99 |
| 116 |
596434404 |
Bolts This part replaces 532193406. Price: $4.99 |
| 117 |
589527301 |
WHEEL.GAUGE.RALLY This part replaces 532174873. Price: $8.99 |
| 119 |
596134901 |
GSPH This part replaces 819132012. Price: $2.99 |
| 145 |
532177968 |
PULLEY.IDLER.FLAT This part replaces 532193197. Price: $27.99 |
| 188 |
593824001 |
STUD.W/"D"ANTI-ROTATION This part replaces 532195161. Price: $3.99 |
| 189 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 190 |
532197251 |
SPRING.MOWER.DRIVE.ELECTRIC Price: $9.99 |
| 241 |
532152927 |
SCREW.TT.#10-32X.5.3/8.FLANGE Price: $3.99 |
| 242 |
532415598 |
PORT.WASHOUT Price: $6.99 |
| 254 |
585316805 |
PLATES.RENFRC.42DECK.PT431FRNT Price: $11.99 |
| 255 |
585317005 |
PLATES.RENFRCE.42DECK.X431SIDE Price: $11.99 |
| 256 |
592807801 |
BOLT CUP HEAD SQUARE NECK 1/4- This part replaces 539109800. Price: $2.99 |
| 257 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873900400. Price: $3.99 |
| 532416405 |
COUPLING.QUICK |
CONNECT Price: $8.99 532416405 |
