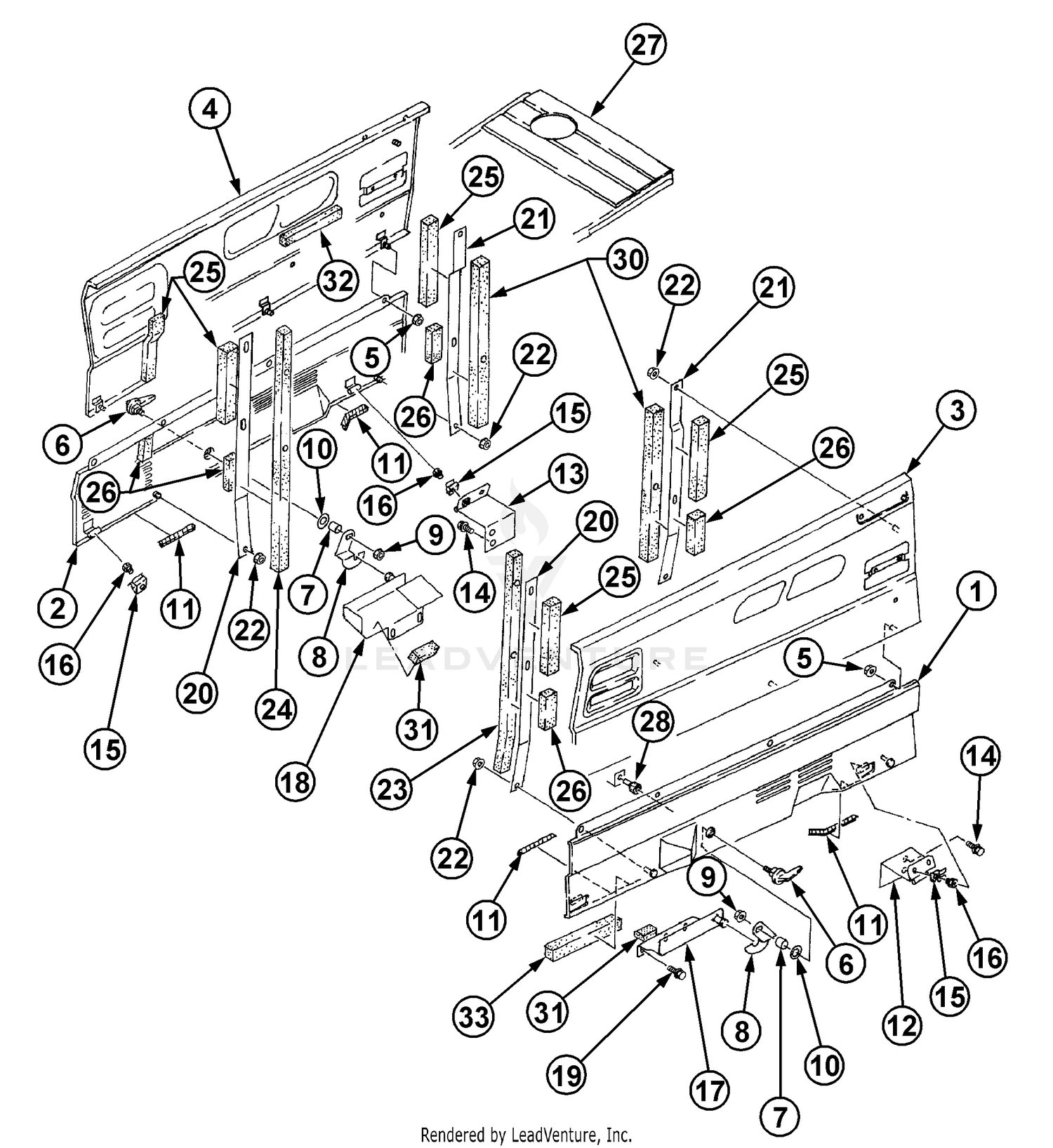

| Ref | Part Number | Description |
|---|
| 1 |
MA-10372629BC0 |
PANEL-LOWER (LH) SID Not Available Price: |
| 2 |
532007070 |
KEY 1/4 X 2.5 Price: $4.99 |
| 2 |
MA-10302631BC0 |
PANEL-LOWER (RH) SID Not Available Price: |
| 3 |
532007563 |
WASHER T Price: $6.99 |
| 3 |
MA-10362643BC0 |
PANEL-UPPER (LH) SIDE Not Available Price: |
| 4 |
MA-10362644BC0 |
PANEL-UPPER (RH) SID Not Available Price: |
| 5 |
MA-F3010108000 |
NUT Not Available Price: |
| 6 |
596029501 |
Pins This part replaces 876020412. Price: $2.99 |
| 6 |
MA-10253315001 |
LEVER-RELEASE Not Available Price: |
| 7 |
532140507 |
HUB ASMBLY Price: $149.99 |
| 7 |
MA-10253316000 |
COLLAR-RELEASE LEV Not Available Price: |
| 8 |
MA-10253317001 |
HOOK-LOWER PANEL Not Available Price: |
| 9 |
596218701 |
Bolts This part replaces 532140080. Price: $2.99 |
| 9 |
MA-F3010108000 |
NUT Not Available Price: |
| 10 |
MA-67474-00600 |
WAVE WASHER Not Available Price: |
| 11 |
MA-10302663000 |
RUBBER Not Available Price: |
| 12 |
MA-10352646AG0 |
BRACKET (LH) LOWER C Not Available Price: |
| 13 |
MA-10352647AG0 |
BRACKET (RH) Not Available Price: |
| 14 |
MA-H1550112025 |
BOLT W/WASHER Not Available Price: |
| 15 |
MA-10253320000 |
SPRING Not Available Price: |
| 16 |
MA-H1240106012 |
BOLT W/WASHER Not Available Price: |
| 17 |
MA-10302634AG1 |
BRACKET (LH) HOOK Not Available Price: |
| 18 |
MA-10352648AG0 |
BRACKET (RH) Not Available Price: |
| 19 |
MA-H1540108016 |
BOLT,W/WASHER Not Available Price: |
| 20 |
873940800 |
NUT.HEX.1/2-20 Price: $3.99 |
| 20 |
MA-10302648BC0 |
PLATE-SIDE PANEL F Not Available Price: |
| 21 |
MA-10302649BC0 |
PLATE-SIDE PANEL R Not Available Price: |
| 22 |
532180235 |
LOWER SHIFT LEVER ASM Price: $27.99 |
| 22 |
MA-F3010108000 |
NUT Not Available Price: |
| 23 |
532140845 |
KNOB.DELUXE.(PISTOL.GRIP).BLAC Price: $11.99 |
| 23 |
MA-10302652000 |
CUSHION (LH) PANEL Not Available Price: |
| 24 |
MA-10372653000 |
CUSHION (RH) PANEL Not Available Price: |
| 25 |
MA-10253346000 |
CUSHION-UPPER PANE Not Available Price: |
| 26 |
MA-37047235100 |
SEAL-SIDE PANEL Not Available Price: |
| 27 |
MA-10352649000 |
COVER-REAR HOOD Not Available Price: |
| 28 |
MA-11742653000 |
CUSHION Not Available Price: |
| 29 |
532176600 |
BRAKE, ROD Price: $14.99 |
| 30 |
MA-10352654000 |
CUSHION-SIDE PANEL Not Available Price: |
| 31 |
MA-43566201100 |
SEAL-HOOK BRACKET Not Available Price: |
| 32 |
MA-10362652000 |
CUSHION-SIDE PANEL Not Available Price: |
| 33 |
812000053 |
E RING HYT Price: $3.99 |
| 34 |
532071673 |
PLUNGER CAP Price: $4.99 |
| 35 |
532137648 |
PARKING BRAKE ROD Price: $9.99 |
| 36 |
532149412 |
SPRING DRIVE GROUND Price: $4.99 |
| 37 |
532121749 |
WASHER Price: $2.99 |
| 38 |
532150035 |
NYLINER Price: $3.99 |
| 39 |
874321016 |
Screw, Fin. #10-24 x 1 Price: $2.99 |
| 40 |
532178575 |
ACTUATOR INTERLOCK SWITCH Price: $3.99 |
| 41 |
873931000 |
Nut Centerlock 10-24 unc Price: $4.99 |
| 42 |
510089501 |
PAD, FOOT PEDAL This part replaces 532124872. Price: $4.99 |
| 46 |
532145170 |
RETAINER SPRING Price: $3.99 |
| 48 |
596136201 |
Bolts This part replaces 872110614. Price: $3.99 |
| 50 |
597025001 |
CLG This part replaces 532131494. Price: $22.99 |
| 52 |
532139245 |
PULLEY IDLER This part replaces 532127783. Price: $32.99 |
| 55 |
532105706 |
BEARING LT (2 2) Price: $5.99 |
| 56 |
532161597 |
BELT, V GROUND DRIVE Price: $39.99 |
| 58 |
874760724 |
BOLT.HEX.7/16-14.FINISHED Price: $3.99 |
| 61 |
532143995 |
PULLEY, TRANSAXLE Price: $27.99 |
| 64 |
532176601 |
SHAFT.ASM.PEDAL.BRAKE Price: $37.99 |
| 65 |
532179613 |
BOLT.SHLDR.3/8-16 Price: $4.99 |
| 68 |
532005142 |
ROLL PIN STD Price: $3.99 |
| 69 |
532123800 |
WASHER Price: $3.99 |
| 70 |
532181788 |
CONSOLE AUTOMATIC YT.GT Price: $8.99 |
| 73 |
874490548 |
BOLT HEX FLGHD 5/16-18X3 GR. 5 Price: $4.99 |
| 74 |
596134101 |
Screws This part replaces 532142432. Price: $2.99 |
| 77 |
596238601 |
Bolts This part replaces 874780716. Price: $2.99 |
| 89 |
873680700 |
Nut Crownlock 7/16-14 unc Price: $2.99 |
| 94 |
532133835 |
FASTENER.XMAS.TREE Price: $3.99 |
| 98 |
532141004 |
SHIFT BRACKET Price: $3.99 |
| 106 |
532142918 |
O-RING KIT 70110 Price: $22.99 |
| 107 |
532154739 |
LINE.VENT.HYDRO-GEAR Price: $4.99 |
| 108 |
532142578 |
VENT CAP 70109 This part replaces 532142917. Price: $37.99 |
| 111 |
532156240 |
SPACER SHIFT LEVER VGTH Price: $2.99 |
| 112 |
532178558 |
WASHER NYLON HIGH TEMP Price: $4.99 |
| 114 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 117 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 120 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 121 |
532175611 |
BRACKET STRAP TORQUE Price: $6.99 |
| 122 |
872010520 |
BOLT.5/16-18X2.5 Price: $4.99 |
| 123 |
532183254 |
ROD SHIFT Price: $24.99 |
| 124 |
532165492 |
BOLT.SHOULDER.5/16-18X Price: $8.99 |
| 125 |
594094101 |
Bolts This part replaces 817490510. Price: $1.99 |
| 126 |
596218801 |
Washers This part replaces 532166002. Price: $1.99 |
| 127 |
532177362 |
LINK CONTROL CLUTCH Price: $7.99 |
| 128 |
532176624 |
SPRING DRIVE GRND Price: $4.99 |
| 129 |
532179473 |
BRACKET ARM IDLER TENSIONING Price: $22.99 |
| 130 |
819131016 |
WASHER Price: $2.99 |
| 131 |
596917601 |
Pins This part replaces 876020312. Price: $1.99 |
| 132 |
532175467 |
BRACKET MTG HYDRO 3500 LH VGT Price: $3.99 |
| 133 |
532175468 |
BRACKET MTG HYDRO 3500 RH VGT Price: $4.99 |
| 135 |
532177364 |
LINK ASM CONTROL HYDRO 3500 Price: $48.99 |
| 137 |
532124949 |
LOCKNUT Price: $3.99 |
| 138 |
532001370 |
THRUST WASHER Price: $4.99 |
| 142 |
532175469 |
STRAP TORQUE HT-3500 Price: $32.99 |
| 143 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK This part replaces 817060512. Price: $4.99 |
| 145 |
532163168 |
WASHER.AXLE.FLANGE.HG-3000 Price: $7.99 |
| 146 |
532140462 |
FAN 7" HYDRO Price: $9.99 |
| 147 |
532141322 |
WASHER Price: $3.99 |
| 151 |
596322201 |
BOLT HEXAGON BOLT 5/16-18 X 7/ This part replaces 874760514. Price: $2.99 |
| 152 |
532178705 |
BOLT HEX 5/16X1 W/PATCH Price: $2.99 |
| 189 |
805449 |
Washer Price: Call Us |
| 304 |
807898 |
Housing-Blower Price: Call Us |
| 305 |
805406 |
Screw Price: Call Us |
| 307 |
805025 |
Screw Price: Call Us |
| 308 |
808310 |
Cover-Air Guide (Cyl. #1) Price: Call Us |
| 308A |
808100 |
Cover-Air Guide (Cyl. #2) Price: Call Us |
| 353 |
806101 |
Washer-Lock Price: Call Us |
| 373 |
805383 |
Nut Price: Call Us |
| 423 |
805260 |
Screw Price: Call Us |
| 526 |
805448 |
Screw Price: Call Us |
| 573 |
807663 |
Plate-Back Price: Call Us |
| 657 |
805009 |
Screw Price: Call Us |
| 727 |
805505 |
Shield-Starter Price: Call Us |
| 865 |
807661 |
Cover-Air Guide Price: Call Us |
| 866 |
805738 |
Cover-Air Guide Price: Call Us |
| 879 |
805841 |
Cover-Carburetor Price: Call Us |
| 1036 |
499366 |
Label Kit-Emission Price: Call Us |
