| Ref | Part Number | Description |
|---|
| 1 |
136-5873 |

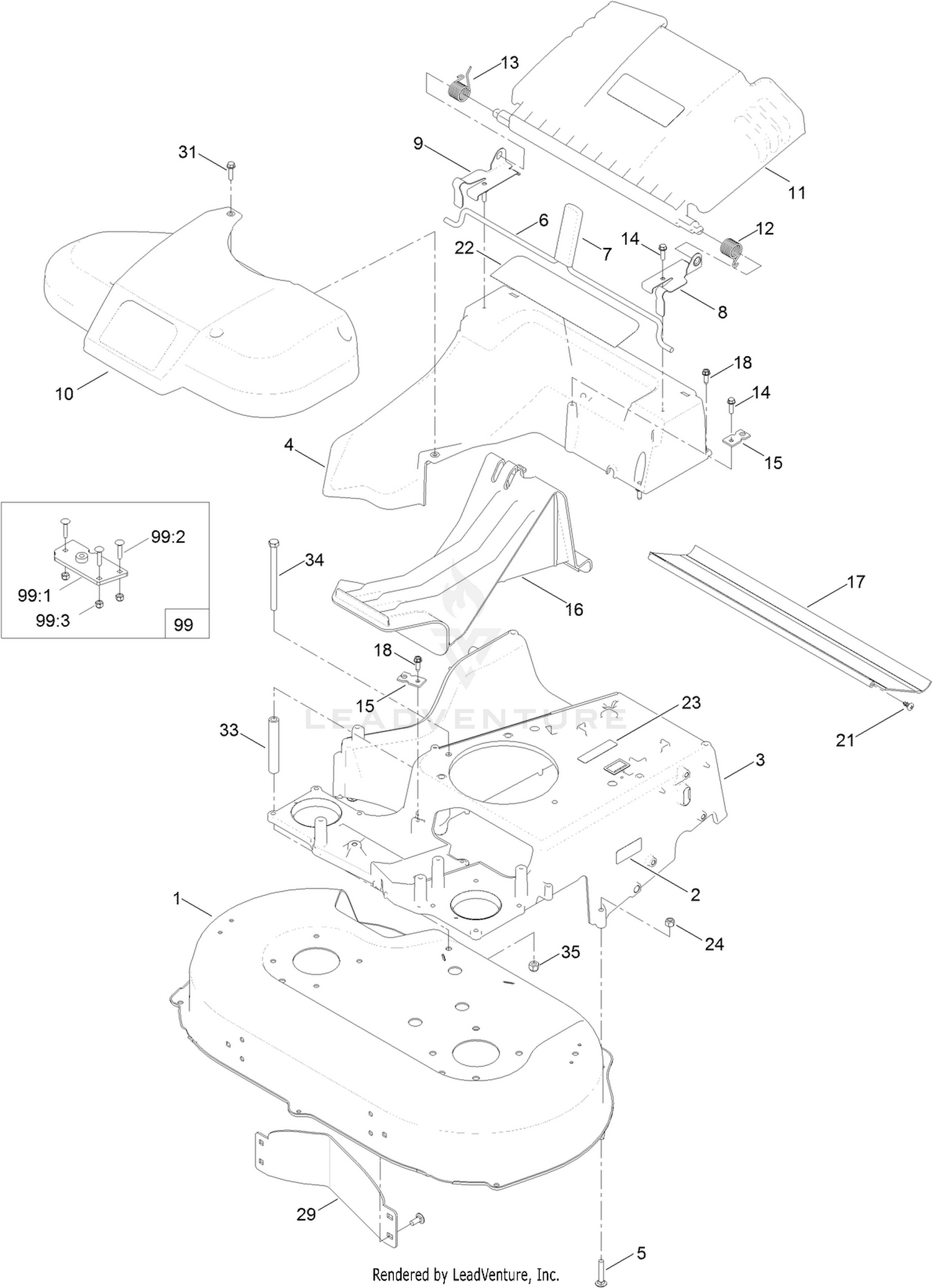

HOUSING ASM Price: $177.79 |
| 2 |
121-5684 |
DECAL-LOCATION, SERVICE DEALER Price: $1.19 |
| 3 |
136-5908-01 |
FRAME Price: $120.10 |
| 4 |
133-8177 |
CHUTE Price: $37.67 |
| 5 |
3230-5 |
BOLT-CAR Price: $0.54 |
| 6 |
120-3344 |
ROD-RELEASE, HANDLE Price: $9.97 |
| 7 |
120-7018 |
GRIP-LEVER Price: $2.48 |
| 8 |
121-9114 |
BRACKET-DOOR, LH Price: $12.59 |
| 9 |
121-9115 |
BRACKET-DOOR, RH Price: $12.59 |
| 10 |
139-5408 |
BELT COVER ASM This part replaces 120-7049. Price: $34.37 |
| 11 |
120-7048 |
REAR DEFLECTOR ASM Price: $25.31 |
| 12 |
115-2859 |
SPRING-TORSION Price: $3.33 |
| 13 |
114-7924 |
SPRING-TORSION Price: $2.22 |
| 14 |
46-8091 |
SCREW-HWH Price: $3.59 |
| 15 |
138-3224 |
BRACKET-CABLE, TRACTION This part replaces 107-7497. Price: $1.46 |
| 16 |
120-5225 |
PLUG-MULCH Price: $19.07 |
| 17 |
120-6241 |
SHIELD-TRAILING Price: $10.93 |
| 18 |
49-2040 |
SCREW-HWHTF Price: $1.99 |
| 21 |
139-1692 |
SCREW-THD This part replaces 117-1092. Price: $0.32 |
| 22 |
121-2398 |
DECAL-POSITION, HANDLE Price: $5.28 |
| 23 |
117-2718 |
DECAL-ARRESTER, SPARK Price: $5.95 |
| 24 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 29 |
130-2352-01 |
BAFFLE-CONTROL Price: $17.32 |
| 31 |
32144-86 |
SCREW-HWHTF Price: $1.29 |
| 33 |
1-323283 |
SPACER-SHIELD Price: $6.49 |
| 34 |
323-39 |
SCREW-HH Price: $1.60 |
| 35 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 99 |
125-5072 |
FRAME PLATE KIT Price: $28.73 |
