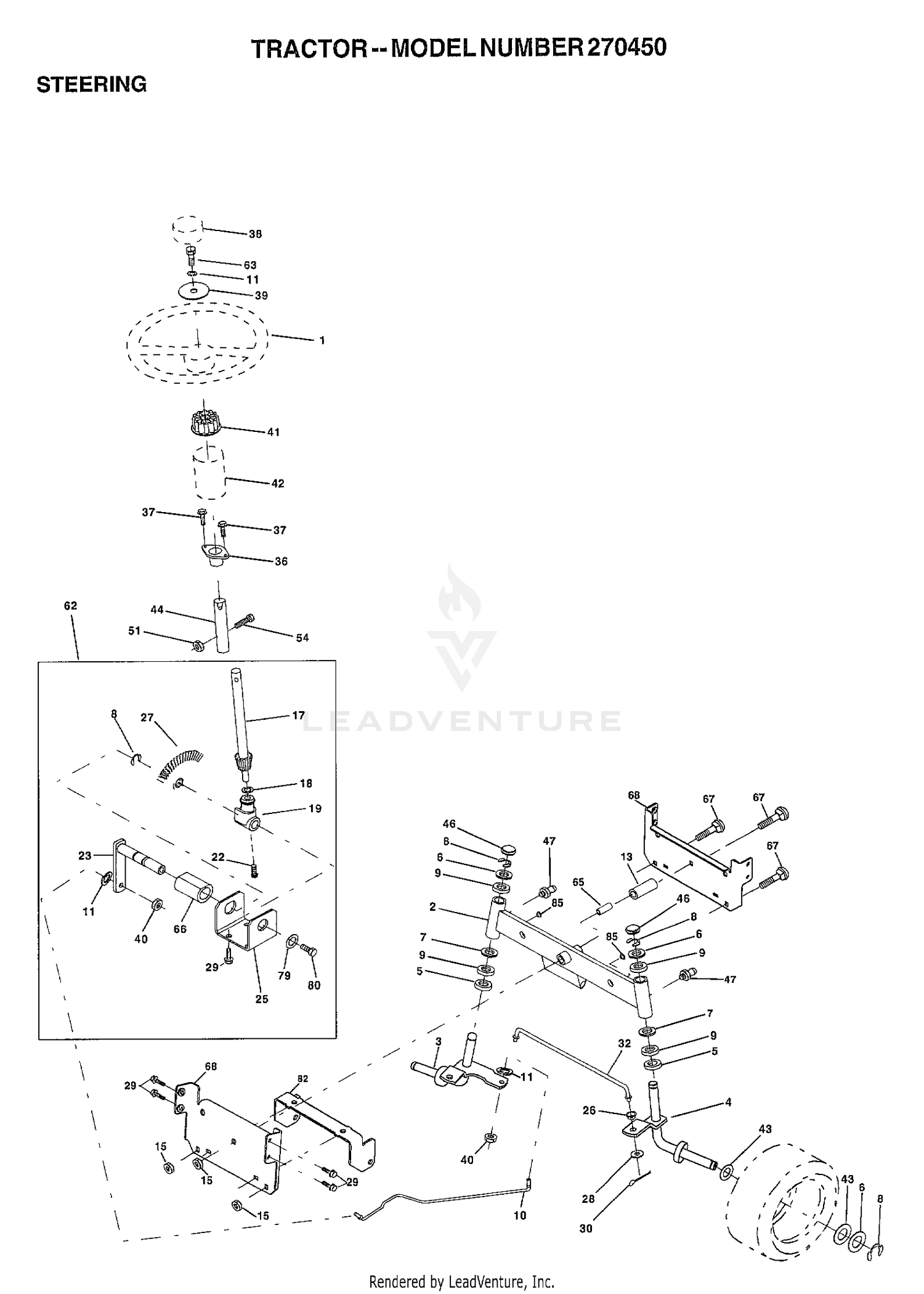

| Ref | Part Number | Description |
|---|
| 1 |
140044 |
WHEEL STR AYP BLK Price: Call Us |
| 2 |
154427 |
AXLE ASM Price: Call Us |
| 3 |
156483 |
SPINDLE.ASM.LH Price: Call Us |
| 5 |
6266H |
WASHER .T Price: Call Us |
| 6 |
121748X |
WASHER Price: Call Us |
| 7 |
19272016 |
WASHER Price: Call Us |
| 8 |
12000029 |
RING Price: Call Us |
| 9 |
3366R |
COL. SRTG. BEAR. Price: Call Us |
| 10 |
131-6557 |
ALTERNATOR ASM This part replaces 98-9474. Price: $443.05 |
| 10 |
169832 |
LINK DRAG Price: Call Us |
| 11 |
10040600 |
Washer, Lock Hvy. Hlcl. Spr. 3/8 Price: Call Us |
| 13 |
136518 |
SPACER BEARING Price: Call Us |
| 15 |
145212 |
NUT.HXFLG.LOCK. Price: Call Us |
| 17 |
156546 |
SHAFT ASM STEERIN Price: Call Us |
| 18 |
57079 |
THRUST WASHER Price: Call Us |
| 19 |
160395 |
SUPPORT.SHAFT.STEER Price: Call Us |
| 20 |
98-9453 |
PULLEY-DYNAMO Price: $138.04 |
| 22 |
165857 |
SCREW.HX.WSH.HD Price: Call Us |
| 23 |
165851 |
SHAFT.ASM.PITMAN Price: Call Us |
| 25 |
154406 |
BRKT-STEERING Price: Call Us |
| 26 |
126847X |
BUSHING.DRAGLINK Price: Call Us |
| 27 |
136874 |
GEAR SECTOR Price: Call Us |
| 28 |
19131416 |
WASHER Price: Call Us |
| 29 |
17060612 |
SCREW Price: Call Us |
| 30 |
76020412 |
COTTER PIN Price: Call Us |
| 30 |
98-7708 |
NUT Price: $7.76 |
| 32 |
130465 |
TIE ROD Price: Call Us |
| 36 |
155099 |
BUSHING.STEERING Price: Call Us |
| 38 |
140045 |
CAP STEER AYP Price: Call Us |
| 39 |
19133812 |
WASHER Price: Call Us |
| 40 |
7810H |
GRIPCO NUT Price: Call Us |
| 40 |
98-7709 |
COLLAR Price: $8.79 |
| 41 |
100711L |
ADAPTER LT Price: Call Us |
| 42 |
145054X428 |
BOOT.STEERING.DASH.P/L Price: Call Us |
| 43 |
121749X |
WASHER Price: Call Us |
| 44 |
153720 |
EXT SHAFT STEERIN Price: Call Us |
| 46 |
121232X |
CAP Price: Call Us |
| 47 |
6855M |
ZERK M Price: Call Us |
| 50 |
107-0136 |
ROTOR ASM Price: $268.62 |
| 51 |
73510500 |
NUT Price: Call Us |
| 54 |
74780520 |
BOLT Price: Call Us |
| 60 |
98-7711 |
COVER-BEARING Price: $7.32 |
| 62 |
167902 |
KIT.STEER.ASM Price: Call Us |
| 63 |
74780616 |
BOLT Price: Call Us |
| 67 |
72140618 |
BOLT RDHD 3/8-16 Price: Call Us |
| 68 |
169827 |
BRACE AXLE Price: Call Us |
| 70 |
107-0138 |
BEARING-BALL Price: $48.37 |
| 79 |
19132012 |
WASHER Price: Call Us |
| 80 |
74950612 |
BOLT.HX.NYLON3/8-16X3/ Price: Call Us |
| 80 |
98-7713 |
WASHER-THRUST Price: $4.49 |
| 82 |
169835 |
BRKT SUSP CHASSIS FRT Price: Call Us |
| 90 |
107-0139 |
DRIVE END FRAME ASM Price: $446.71 |
| 100 |
98-7715 |
PLATE-RETAINER Price: $9.38 |
| 110 |
98-7716 |
SCREW-HEAD, ROUND Price: $0.91 |
| 120 |
98-7717 |
BOLT-THROUGH Price: $9.75 |
| 130 |
133-2811 |
BEARING This part replaces 107-0137. Price: $46.67 |
| 140 |
107-9087 |
FRAME-END Price: $183.56 |
| 150 |
107-0140 |
COVER-END Price: $34.95 |
| 160 |
98-7721 |
RECTIFIER ASM This part replaces 98-9476. Price: $486.45 |
| 170 |
98-7722 |
BUSHING-INSULATION Price: $28.44 |
| 180 |
107-0141 |
BRUSH HOLDER ASM Price: $107.10 |
| 190 |
98-7724 |
BRUSH Price: $12.41 |
| 200 |
98-7725 |
SPRING-BRUSH Price: $4.32 |
| 210 |
98-7726 |
SCREW-HEAD, ROUND Price: $0.42 |
| 220 |
98-7727 |
SCREW-HEAD, ROUND Price: $0.94 |
| 230 |
98-7728 |
SCREW-HEAD, ROUND Price: $0.70 |
| 240 |
98-7729 |
BOLT Price: $2.35 |
| 250 |
98-7730 |
NUT Price: $1.31 |
| 260 |
98-7731 |
BOLT Price: $3.94 |
| 270 |
98-7732 |
NUT Price: $1.45 |
