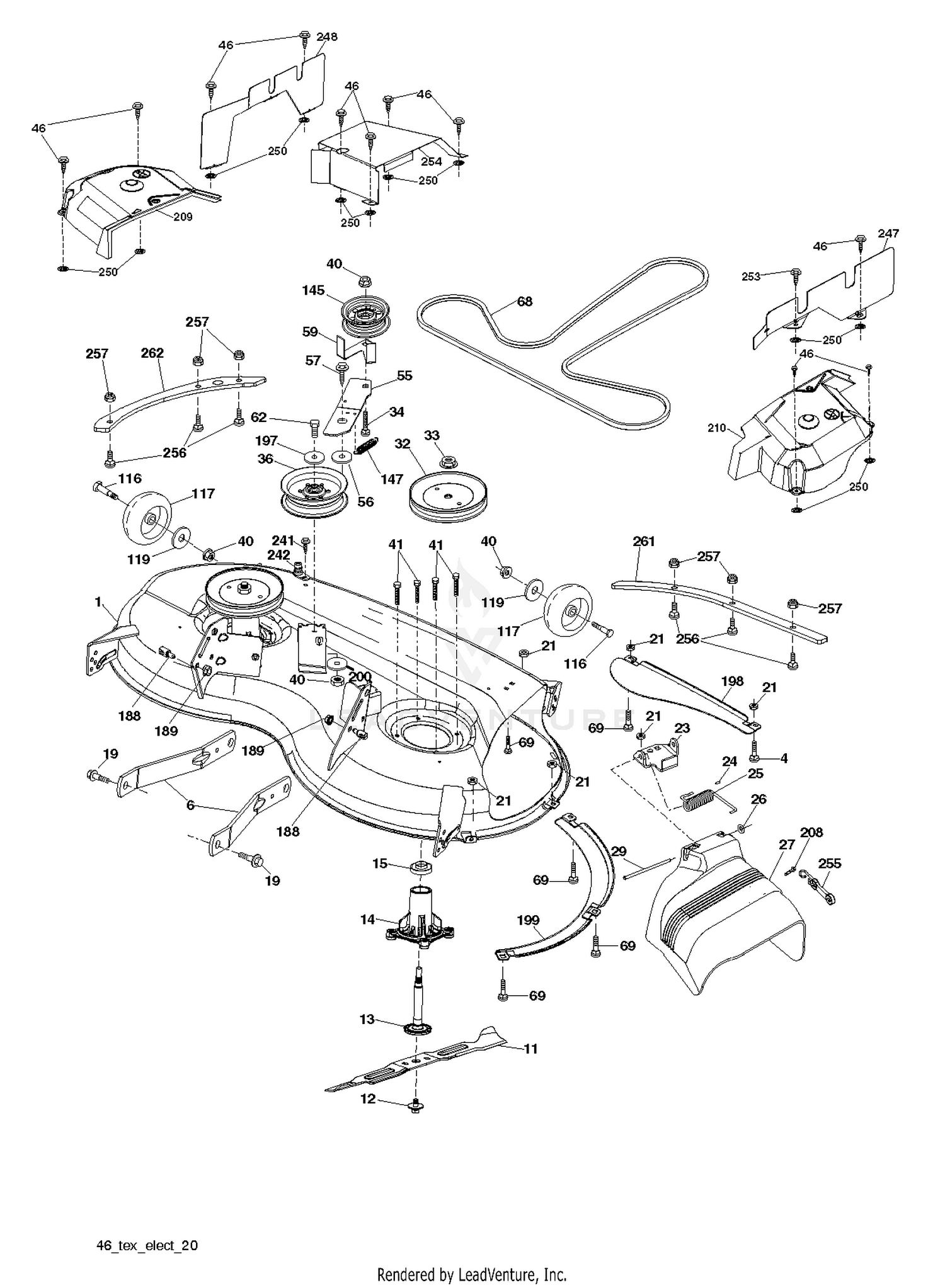

| Ref | Part Number | Description |
|---|
| 1 |
32128-23 |
NUT-HF Price: $1.51 |
| 1 |
547745901 |
KIT.SVC.DECK.WELD.46.TEX_428 This part replaces 589535308. Price: $449.99 |
| 2 |
47-3500-01 |
CHANNEL BRACE ASM This part replaces 47-3500. Price: $989.40 |
| 3 |
3296-23 |
NUT-LOCK, NI Price: $0.52 |
| 4 |
3290-355 |
PIN-HAIR Price: $2.09 |
| 4 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 874760512. Price: $3.99 |
| 5 |
47-3800-01 |
STRAP-LOCKING This part replaces 47-3800. Price: $156.60 |
| 6 |
325-14 |
SCREW-HH Price: $2.64 |
| 6 |
529846401 |
SERVICE.KIT ARM.SUSPENSION.MOW This part replaces 532195186. Price: $14.99 |
| 7 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 8 |
47-3480-03 |
SMV BRKT This part replaces 47-3480. Price: $36.01 |
| 9 |
38-6200 |
SOCKET-SLOW MOVING VEHICLE Price: $21.04 |
| 10 |
3230-1 |
BOLT-CARR This part replaces 3230-20. Price: $1.49 |
| 11 |
3-2196-01 |
SHEAVE This part replaces 3-2196. Price: $141.72 |
| 12 |
3-0136-01 |
CHAIN KEEPER ASM This part replaces 3-0136. Price: $51.92 |
| 12 |
532193003 |
BOLT.WASHER.ASM.7/16-2 This part replaces 584309301. Price: $6.99 |
| 13 |
325-18 |
SCREW-HH Price: $3.19 |
| 13 |
587819701 |
KIT.MANDREL.NONGREASE.TALL This part replaces 587256501. Price: $49.99 |
| 14 |
20-4390 |
SPACER Price: $12.54 |
| 14 |
587819701 |
KIT.MANDREL.NONGREASE.TALL This part replaces 532187281. Price: $49.99 |
| 15 |
47-3990 |
DECAL Price: $19.68 |
| 15 |
585323901 |
BEARING.MANDREL.TOP.EXTENDED Price: $12.99 |
| 16 |
115-4947-01 |
HYDRAULIC CYLINDER ASM (10.69 STROKE) This part replaces 22-7520. Price: $880.23 |
| 17 |
322-3 |
SCREW-HH Price: $0.79 |
| 18 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 19 |
37-2760-01 |
PIN-LIFT, BAIL This part replaces 37-2760. Price: $89.10 |
| 19 |
532196539 |
BOLT.SHOULDER Price: $5.99 |
| 20 |
8-1280-01 |
REAR CROSS CHANNEL ASM This part replaces 8-1280. Price: $998.35 |
| 21 |
3296-50 |
NUT-LOCK, NI Price: $2.68 |
| 21 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 22 |
47-3840 |
ELBOW-ORIFICE (.094) Price: $37.03 |
| 23 |
3290-216 |
WASHER Price: $3.83 |
| 23 |
532192557 |
BRKT.DEFLECTOR.38"2005+ Price: $7.99 |
| 24 |
325-6 |
SCREW-HH Price: $1.42 |
| 24 |
532105304 |
CAP-SLEEVE LT Price: $3.99 |
| 25 |
3234-22 |
SCREW-HHF Price: $2.69 |
| 25 |
532197026 |
SPRING.TORSION.DEFLECT Price: $8.99 |
| 26 |
5-3126 |
PIN-LYNCH Price: $0.73 |
| 26 |
532110452 |
NUT PUSH M Price: $2.99 |
| 27 |
597247101 |
Deflectors This part replaces 532442895. Price: $49.99 |
| 32 |
532195945 |
PULLEY.MANDREL.5.438.P This part replaces 532197473. Price: $12.99 |
| 33 |
596134801 |
Nuts This part replaces 532400234. Price: $1.00 |
| 34 |
596136101 |
GSPW Bolts This part replaces 872110612. Price: $2.99 |
| 36 |
532196106 |
PULLEY.IDLER.2006 This part replaces 532197379. Price: $34.99 |
| 40 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 41 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 Price: $3.99 |
| 46 |
532137729 |
SCREW.1/4-20X5/8 Price: $3.99 |
| 55 |
531169401 |
SERVICE KIT IDLER.ARM This part replaces 532197249. Price: $5.99 |
| 56 |
532199092 |
SPACER.RETAINER Price: $5.99 |
| 57 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 59 |
531165901 |
SERVICE KIT GUARD This part replaces 532141043. Price: $4.99 |
| 62 |
596564404 |
Bolts This part replaces 874520636. Price: $2.99 |
| 68 |
584453101 |
V-BELT.DRIVE.MWR.MECHANICL.46" This part replaces 532405143. Price: $49.99 |
| 69 |
596136401 |
Bolts This part replaces 872140505. Price: $2.99 |
| 116 |
596434404 |
Bolts This part replaces 532193406. Price: $4.99 |
| 117 |
589527301 |
WHEEL.GAUGE.RALLY Price: $8.99 |
| 119 |
596134901 |
GSPH This part replaces 819121414. Price: $2.99 |
| 145 |
532177968 |
PULLEY.IDLER.FLAT This part replaces 532193197. Price: $27.99 |
| 147 |
532197251 |
SPRING.MOWER.DRIVE.ELECTRIC Price: $9.99 |
| 188 |
593824001 |
STUD.W/"D"ANTI-ROTATION This part replaces 532195161. Price: $3.99 |
| 189 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 197 |
596134901 |
GSPH This part replaces 819131312. Price: $2.99 |
| 198 |
531170601 |
SERVICE KIT BAFFLE CENT This part replaces 532403149. Price: $9.99 |
| 199 |
531170701 |
SERVICE KIT BAFFLE FRONT This part replaces 532403150. Price: $11.99 |
| 200 |
596135501 |
Washers This part replaces 532413524. Price: $4.99 |
| 208 |
817670608 |
SCREW 3/8-16X1/2 Price: $3.99 |
| 209 |
588808801 |
COVER.LHS.CE.46CABLE.CLUTCH Price: $14.99 |
| 210 |
583480001 |
COVER.ASM.MANDREL.RH.TEX.46 This part replaces 532432396. Price: $22.99 |
| 241 |
532152927 |
SCREW.TT.#10-32X.5.3/8.FLANGE Price: $3.99 |
| 242 |
532415598 |
PORT.WASHOUT Price: $6.99 |
| 247 |
583457801 |
SHIELD.DECK.RH.46"FRENCH.2010 This part replaces 532430263. Price: $22.99 |
| 248 |
583457701 |
SHIELD.DECK.LH.46"FRENCH.2010 This part replaces 532430262. Price: $24.99 |
| 250 |
532423062 |
PALNUT 1/4 Price: $2.99 |
| 253 |
583441001 |
TULFLOK.RIVET This part replaces 532427350. Price: $2.99 |
| 254 |
583457901 |
SHIELD.DECK.REAR.46"FRENCH.010 This part replaces 532430264. Price: $49.99 |
| 255 |
583508201 |
KIT.STRAP.BUNGEE.DEFLECTOR.SVC This part replaces 532436087. Price: $7.99 |
| 256 |
592807801 |
BOLT CUP HEAD SQUARE NECK 1/4- This part replaces 539109800. Price: $2.99 |
| 257 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873900400. Price: $3.99 |
| 261 |
589481805 |
PLATE.REINF.DECK.46".FRONT.BLK Price: $17.99 |
| 262 |
589482005 |
PLATE.REINF.DECK.46".SIDE.BLK Price: $17.99 |
