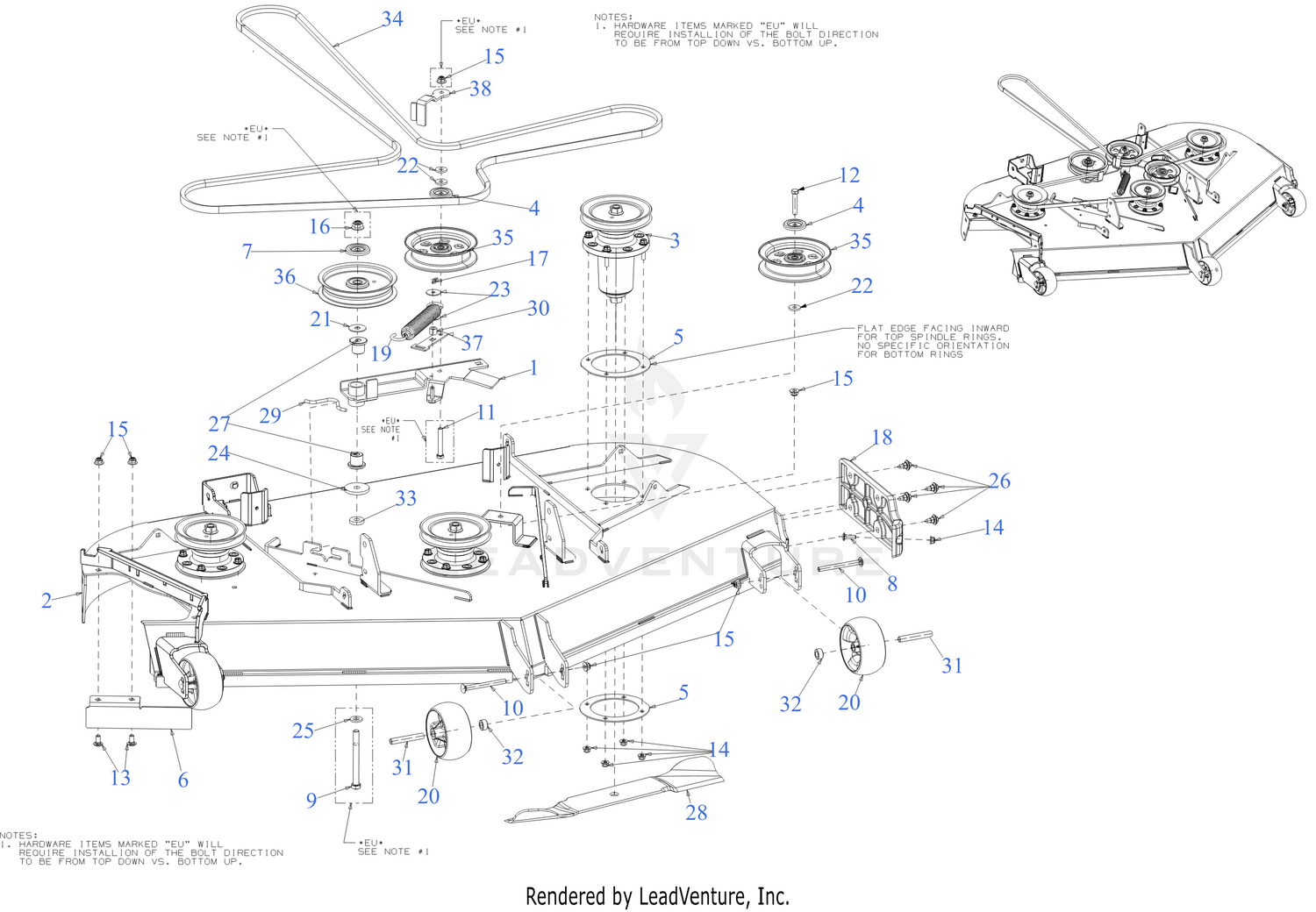

| Ref | Part Number | Description |
|---|
| 4 |
703-11504 |
PULLEY CAP 1.875 DIA Price: $5.25 |
| 5 |
703E18464 |
SPINDLE PLATE Price: $29.67 |
| 7 |
703-24504 |
PULLEY CAP (.540 x 2.041 DIA) Price: $7.94 |
| 8 |
710-0276 |
CARRIAGE BOLT 5/16-18 x 1.00 Price: $3.68 |
| 9 |
710-0382 |
BOLT-HEX 1/2-13X5.0 GR5 Price: $10.57 |
| 10 |
710-05384 |
CARRIAGE BOLT 3/8-16 x 4.00 GR5 Price: $4.69 |
| 11 |
710-0859 |
HEX SCREW-3/8-16X2.5 GR5 Price: $5.99 |
| 12 |
710-3144 |
SCREW 3/8-16 x 2.0 GR5 Price: $4.02 |
| 13 |
710-3178 |
CARRIAGE BOLT 3/8-16 x .75 Price: $3.93 |
| 14 |
712-04063 |
FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 15 |
712-04065 |
NUT Price: $3.68 |
| 16 |
712-04150 |
NUT Price: $3.74 |
| 17 |
714-04040 |
BOW TIE COTTER PIN 1/4-5/16 Price: $1.28 |
| 18 |
731-13530 |
DECK SKID PLATE Price: $38.06 |
| 19 |
732-05360C |
SPRING 1.25" DIA x 8.5" LONG This part replaces 732-05360B. Price: $30.00 |
| 20 |
734-04155 |
DECK WHEEL Price: $19.04 |
| 21 |
736-0208 |
WASHER .51 x 1.5 x .07 Price: $4.02 |
| 22 |
736-0258 |
FLAT WASHER .385 x 1.00 x .135 Price: $3.93 |
| 23 |
736-0362 |
FLAT WASHER .322 ID x 1.25 x .060 Price: $3.93 |
| 24 |
736-05642 |
FLAT WASHER .53"x2.125"x.25" Price: $6.20 |
| 25 |
736-3019 |
FLAT WASHER .531X1.060X.134 Price: $5.45 |
| 26 |
738-04091A |
SHOULDER SCREW .43X.29X5/16-18 TT Price: $3.50 |
| 27 |
741-06810 |
FLANGE BEARING Price: $8.34 |
| 29 |
747-10330 |
DECK SPRING HOOK Price: $3.04 |
| 30 |
750-05563 |
SPACER Price: $6.51 |
| 31 |
750-06199 |
SPACER .38X.49X3.05LG Price: $7.44 |
| 32 |
750-0664 |
SPACER-.505 1D Price: $6.01 |
| 33 |
750-09990 |
SPACER PLATE 0.530:1.50:0.25 Price: $6.07 |
| 34 |
754P06094 |
V-BELT B SEC x 162.25 Price: $72.07 |
| 36 |
756-06523 |
IDLER PULLEY 6.0" Price: $67.74 |
| 37 |
783E11808 |
BELT KEEPER Price: $12.92 |
