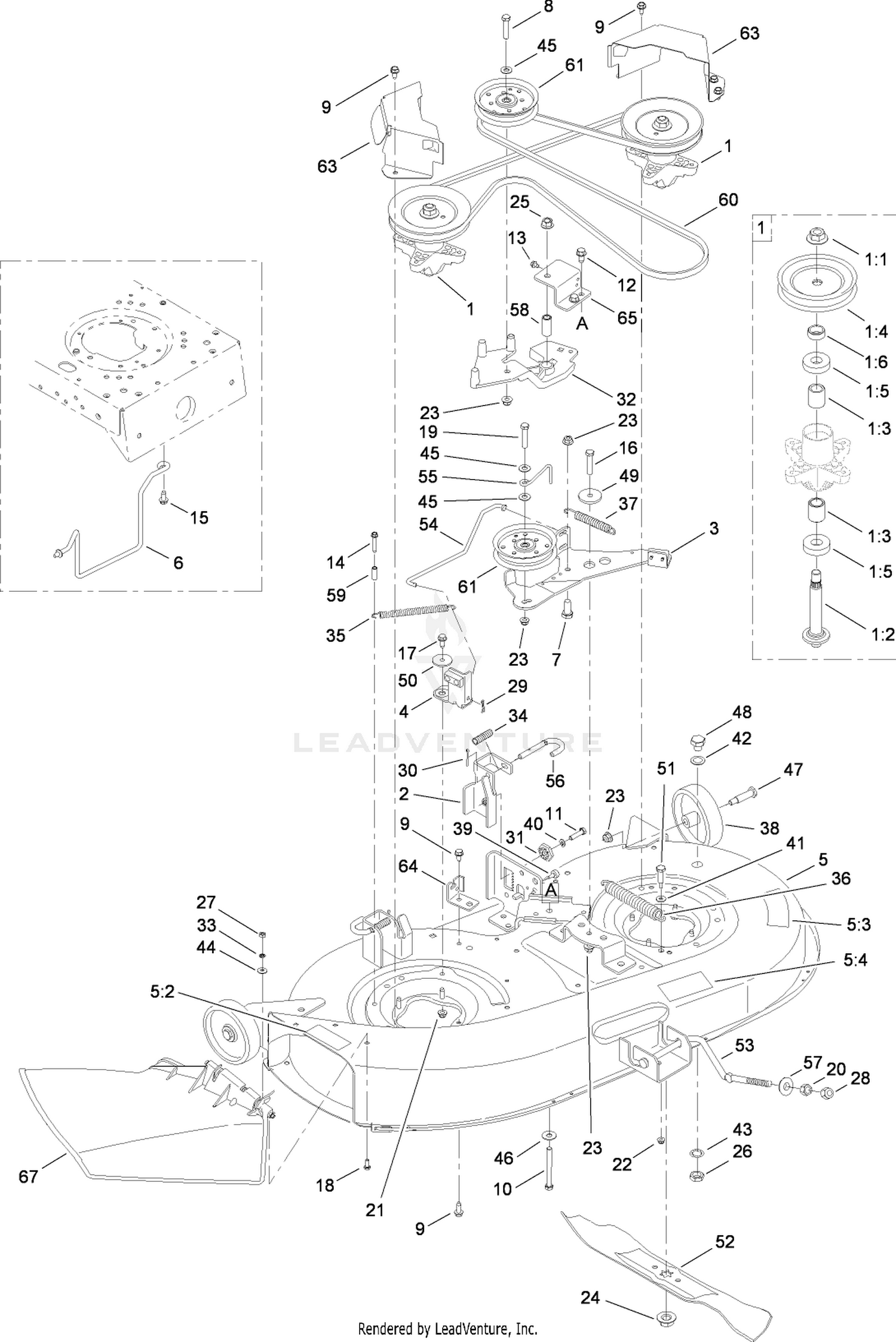

| Ref | Part Number | Description |
|---|
| 1 |
112-6063 |
SPINDLE ASM Price: $179.99 |
| 2 |
112-0413 |
LH HANGER BRACKET ASM Price: $66.99 |
| 3 |
112-0606 |
DECK BRAKE ASM Price: $101.47 |
| 4 |
112-3742 |
BRAKE ASM Price: $73.99 |
| 5 |
112-5857 |
DECK AND DECAL ASM Price: $583.31 |
| 6 |
112-6071 |
ROD-KEEPER, BELT Price: $31.99 |
| 7 |
112-0855 |
SCREW-HH Price: $5.99 |
| 8 |
112-0513 |
SCREW-HH Price: $5.99 |
| 9 |
112-6070 |
SCREW-TAP Price: $5.59 |
| 10 |
112-3745 |
SCREW-HH Price: $14.99 |
| 11 |
112-0373 |
SCREW-HH Price: $5.99 |
| 12 |
112-0906 |
SCREW-HWHTF Price: $5.39 |
| 13 |
112-6022 |
SCREW-TAP Price: $5.69 |
| 14 |
112-0843 |
SCREW-HWH Price: $5.99 |
| 15 |
112-0395 |
SCREW-HWH Price: $11.99 |
| 16 |
112-0557 |
SCREW-HH Price: $5.99 |
| 17 |
112-1090 |
SCREW-HH Price: $5.69 |
| 18 |
112-0499 |
SCREW-HH Price: $5.21 |
| 19 |
112-0421 |
SCREW-HH Price: $5.21 |
| 20 |
112-0458 |
NUT-HEX Price: $3.52 |
| 21 |
112-0650 |
NUT-LOCK, FLANGE Price: $5.89 |
| 22 |
112-0636 |
NUT-LOCK, FLANGE Price: $5.99 |
| 23 |
112-0668 |
NUT-LOCK, FLANGE Price: $5.79 |
| 24 |
112-0330 |
NUT-LOCK, FLANGE Price: $9.99 |
| 25 |
112-0859 |
NUT-LOCK, FLANGE Price: $5.99 |
| 26 |
112-0351 |
NUT-HEX Price: $8.99 |
| 27 |
112-0522 |
NUT-HEX Price: $5.21 |
| 28 |
112-0476 |
NUT-LOCK, HEX (NYLON) Price: $5.99 |
| 29 |
112-0459 |
PIN-COTTER Price: $3.16 |
| 30 |
112-0412 |
PIN-COTTER Price: $5.99 |
| 31 |
112-0327 |
GEAR-ADJUSTMENT, DECK Price: $20.99 |
| 32 |
112-6069 |
BRACKET-IDLER Price: $95.99 |
| 33 |
112-0623 |
RETAINER-BOLT Price: $3.52 |
| 34 |
112-0406 |
SPRING-COMPRESSION Price: $10.99 |
| 35 |
112-0528 |
SPRING-EXTENSION Price: $21.99 |
| 36 |
112-6043 |
SPRING-EXTENSION Price: $25.99 |
| 37 |
112-3746 |
SPRING-EXTENSION Price: $14.99 |
| 38 |
112-0337 |
WHEEL-DECK, REAR Price: $14.99 |
| 39 |
112-1016 |
BUMPER Price: $9.99 |
| 40 |
112-0366 |
WASHER-LOCK Price: $3.11 |
| 41 |
112-5989 |
WASHER-FLAT This part replaces 112-3695. Price: $5.99 |
| 42 |
112-0339 |
WASHER-FLAT Price: $5.39 |
| 43 |
112-0643 |
WASHER-LOCK Price: $5.39 |
| 44 |
112-0485 |
WASHER-SPRING Price: $5.99 |
| 45 |
112-0572 |
WASHER-FLAT Price: $3.52 |
| 46 |
112-0380 |
WASHER-FLAT Price: $13.99 |
| 47 |
112-0334 |
BOLT-SHOULDER Price: $12.99 |
| 48 |
112-0577 |
PLUG Price: $10.64 |
| 49 |
112-0584 |
SPACER-SHOULDER Price: $35.99 |
| 50 |
112-3747 |
SPACER-SHOULDER Price: $6.29 |
| 51 |
112-6068 |
BOLT-SHOULDER Price: $4.79 |
| 52 |
112-0315 |
BLADE Price: $46.99 |
| 53 |
112-0607 |
ROD-DECK, FRONT ADJUSTMENT Price: $41.99 |
| 54 |
112-3748 |
ROD-BRAKE Price: $27.99 |
| 55 |
112-5879 |
ROD-KEEPER, BELT Price: $8.99 |
| 56 |
112-0436 |
PIN-HANDLE, DECK RELEASE Price: $18.99 |
| 57 |
112-0641 |
CUP-PIVOT, LIFT Price: $7.49 |
| 58 |
112-3749 |
SPACER Price: $15.99 |
| 59 |
112-0644 |
SPACER Price: $7.47 |
| 60 |
112-5800 |
BELT-V TYPE Price: $68.99 |
| 61 |
112-0314 |
PULLEY-IDLER Price: $51.99 |
| 63 |
112-6067 |
COVER-BELT Price: $32.99 |
| 64 |
119-8462 |
BRACKET-CABLE, DECK ENGAGE This part replaces 112-0718. Price: $6.60 |
| 65 |
112-6066 |
SUPPORT-BRACKET, PIVOT Price: $38.46 |
