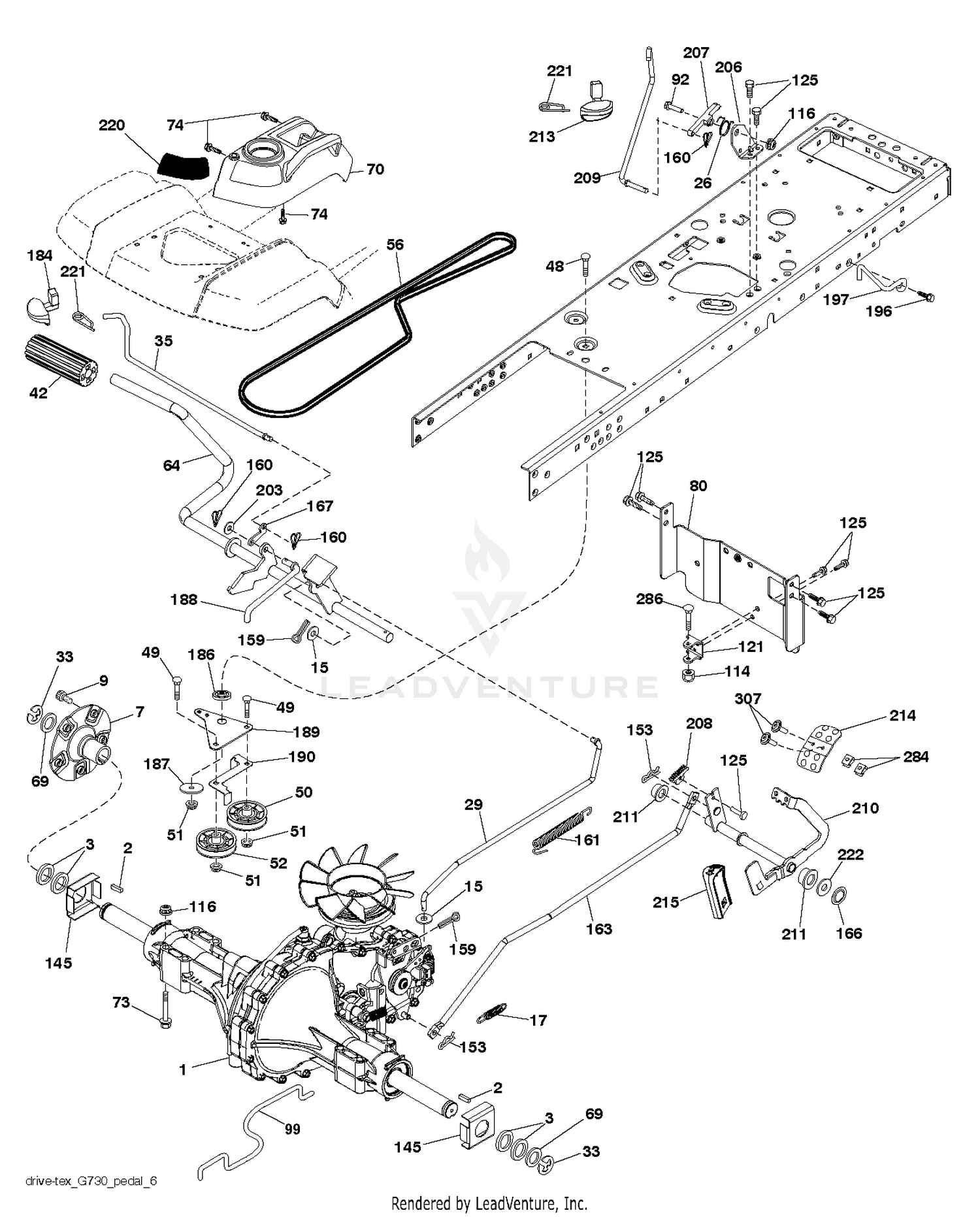

| Ref | Part Number | Description |
|---|
| 1 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 2 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 2 |
532007070 |
KEY 1/4 X 2.5 Price: $4.99 |
| 3 |
532007563 |
WASHER T Price: $6.99 |
| 3 |
70-7530 |
SPRING-COMPRESSION Price: $15.72 |
| 4 |
66-2720-03 |
VALVE LEVER ASM This part replaces 66-2720. Price: $56.12 |
| 5 |
233-39 |
KNOB-CONTROL Price: $16.12 |
| 6 |
63-7960 |
VALVE-LIFT Price: $636.36 |
| 7 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 7 |
531149201 |
SERVICE KIT HUB.ASM HUB.ASM.WH This part replaces 532199837. Price: $39.99 |
| 8 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 9 |
237-42 |
O-RING Price: $2.78 |
| 9 |
596218701 |
Bolts This part replaces 532140080. Price: $2.99 |
| 10 |
340-2 |
FITTING-STRAIGHT Price: $11.43 |
| 11 |
237-22 |
O-RING Price: $2.43 |
| 12 |
66-3130 |
FITTING-SPECIAL Price: $76.51 |
| 13 |
2412-36 |
CLAMP-HOSE Price: $1.28 |
| 14 |
66-8150 |
HOSE-HYDRAULIC Price: $15.32 |
| 15 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 15 |
66-8500 |
HYD HOSE ASM Price: $89.96 |
| 16 |
321-11 |
SCREW-HH Price: $0.36 |
| 17 |
340-77 |
FITTING-ELBOW, 90 DEG Price: $24.95 |
| 17 |
532197296 |
SPRING.BRAKE.HG3000/3500 Price: $5.99 |
| 18 |
76-4830-03 |
VALVE ROD ASM This part replaces 76-4830. Price: $38.97 |
| 19 |
283-16 |
PIN-CLEVIS Price: $2.37 |
| 20 |
3272-5 |
PIN-COTTER Price: $1.39 |
| 21 |
3220-2 |
NUT-JAM Price: $0.50 |
| 22 |
282-27 |
CLEVIS-ADJ Price: $24.71 |
| 23 |
283-58 |
PIN-CLEVIS Price: $3.87 |
| 24 |
3296-15 |
NUT-LOCK, NI Price: $1.75 |
| 25 |
66-8190 |
HYDRAULIC HOSE ASM Price: $85.54 |
| 26 |
340-86 |
FITTING-TEE Price: $35.23 |
| 26 |
532199679 |
SPRING.RETURN.CRUISE Price: $3.99 |
| 27 |
304-99 |
STEM-HOSE Price: $34.00 |
| 28 |
237-78 |
O-RING Price: $3.85 |
| 29 |
3272-23 |
PIN-COTTER Price: $0.28 |
| 29 |
532418186 |
ROD BRAKE Price: $29.99 |
| 30 |
27-4240 |
PIN-CYLINDER Price: $21.90 |
| 31 |
63-6630 |
HYD CYLINDER ASM Price: $683.92 |
| 32 |
3216-3 |
SCREW-HH Price: $7.20 |
| 33 |
66-8640 |
HYDRAULIC HOSE ASM Price: $104.12 |
| 33 |
812000053 |
E RING HYT Price: $3.99 |
| 34 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 35 |
340-70 |
NUT-LOCK Price: $2.10 |
| 35 |
583864502 |
Rods This part replaces 532435486. Price: $6.99 |
| 36 |
340-71 |
FITTING-STRAIGHT, BULKHEAD Price: $20.74 |
| 37 |
63-7410 |
BRACKET-BULKHEAD Price: $9.20 |
| 38 |
321-4 |
SCREW-HH Price: $0.99 |
| 39 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 40 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 42 |
510089501 |
PAD, FOOT PEDAL This part replaces 532124872. Price: $4.99 |
| 48 |
596136101 |
GSPW Bolts This part replaces 872110612. Price: $2.99 |
| 49 |
596136201 |
Bolts This part replaces 872110614. Price: $3.99 |
| 50 |
532194327 |
IDLER.FLAT.910.OFFSET Price: $17.99 |
| 51 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 52 |
532194326 |
IDLER.V-GROOVE.910.OFFSET Price: $19.99 |
| 56 |
532420807 |
V-BELT.GROUND.DRIVE. Price: $39.99 |
| 64 |
532197865 |
SHAFT.ASM.PEDAL.BRK.CNTR Price: $44.99 |
| 69 |
532123800 |
WASHER Price: $3.99 |
| 70 |
532439661 |
CONSOLE.ASM.RH.GT.FC.HUSQ Price: $79.99 |
| 73 |
874490548 |
BOLT HEX FLGHD 5/16-18X3 GR. 5 Price: $4.99 |
| 74 |
596134101 |
Screws This part replaces 532142432. Price: $2.99 |
| 80 |
532418184 |
STRAP.TORQUE.YT.G700 Price: $27.99 |
| 92 |
595305701 |
Screws This part replaces 874760520. Price: $3.99 |
| 99 |
532418188 |
SPRING.BYPASS.YT.G700 Price: $11.99 |
| 114 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 116 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 121 |
532175611 |
BRACKET STRAP TORQUE Price: $6.99 |
| 125 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 145 |
532163168 |
WASHER.AXLE.FLANGE.HG-3000 Price: $7.99 |
| 153 |
532004497 |
RETAINER M This part replaces 532124788. Price: $4.99 |
| 159 |
596029501 |
Pins This part replaces 876020412. Price: $2.99 |
| 160 |
596029401 |
GSPW Retainers This part replaces 532169484. Price: $3.99 |
| 161 |
532105709 |
SPRING, RETURN LT Price: $9.99 |
| 163 |
532418185 |
ROD PEDAL CONTROL Price: $22.99 |
| 166 |
532429164 |
NUT.PUSH.625 Price: $4.99 |
| 167 |
531152901 |
SERVICE KIT LATCH LATCH.BRAKE. This part replaces 532405257. Price: $2.99 |
| 184 |
532196439 |
HANDLE.PARKING.BRAKE.H (BLK) This part replaces 532441455. Price: $9.99 |
| 186 |
532194321 |
SPACER.RETAINER Price: $7.99 |
| 187 |
596135501 |
Washers This part replaces 819133210. Price: $4.99 |
| 188 |
582217001 |
LINK.CLUTCH.GROUND DRIVE.LONG This part replaces 532194323. Price: $4.99 |
| 189 |
531171001 |
SERVICE KIT BELLCRANK BELLCRAN This part replaces 532407504. Price: $4.99 |
| 190 |
532407505 |
KEEPER BELLCRANK ROUND DRIVE Price: $5.99 |
| 196 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 197 |
532199769 |
BRKT.ANIT-ROTATION.CLUTCH Price: $6.99 |
| 203 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T This part replaces 819111116. Price: $2.99 |
| 206 |
532448596 |
BRACKET.MOUNT.CRUISE.LATCH This part replaces 532197867. Price: $4.99 |
| 207 |
587031402 |
Latch This part replaces 532197868. Price: $5.99 |
| 208 |
596564101 |
Gears This part replaces 532197869. Price: $4.99 |
| 209 |
596869801 |
Rods This part replaces 532199592. Price: $5.99 |
| 211 |
532120183 |
BEARING.NYLON Price: $5.99 |
| 213 |
532403119 |
KNOB.CONTROL.CRUSIE.HU Price: $8.99 |
| 214 |
532416863 |
PEDAL.FORWARD.HUSQVARNA.DEALER Price: $32.99 |
| 215 |
532401723 |
PEDAL.REVERSE.TEX.GT.4 Price: $12.99 |
| 221 |
532403187 |
RETAINER.SPRING.CLIP.H Price: $3.99 |
| 222 |
879212010 |
WASHER 21/32 X 1-1/4 X 10 GA. Price: $3.99 |
| 284 |
532417693 |
NUT.U-CHNL.1/4-20.550DP.350PNL Price: $3.99 |
| 286 |
872010520 |
BOLT.5/16-18X2.5 Price: $4.99 |
