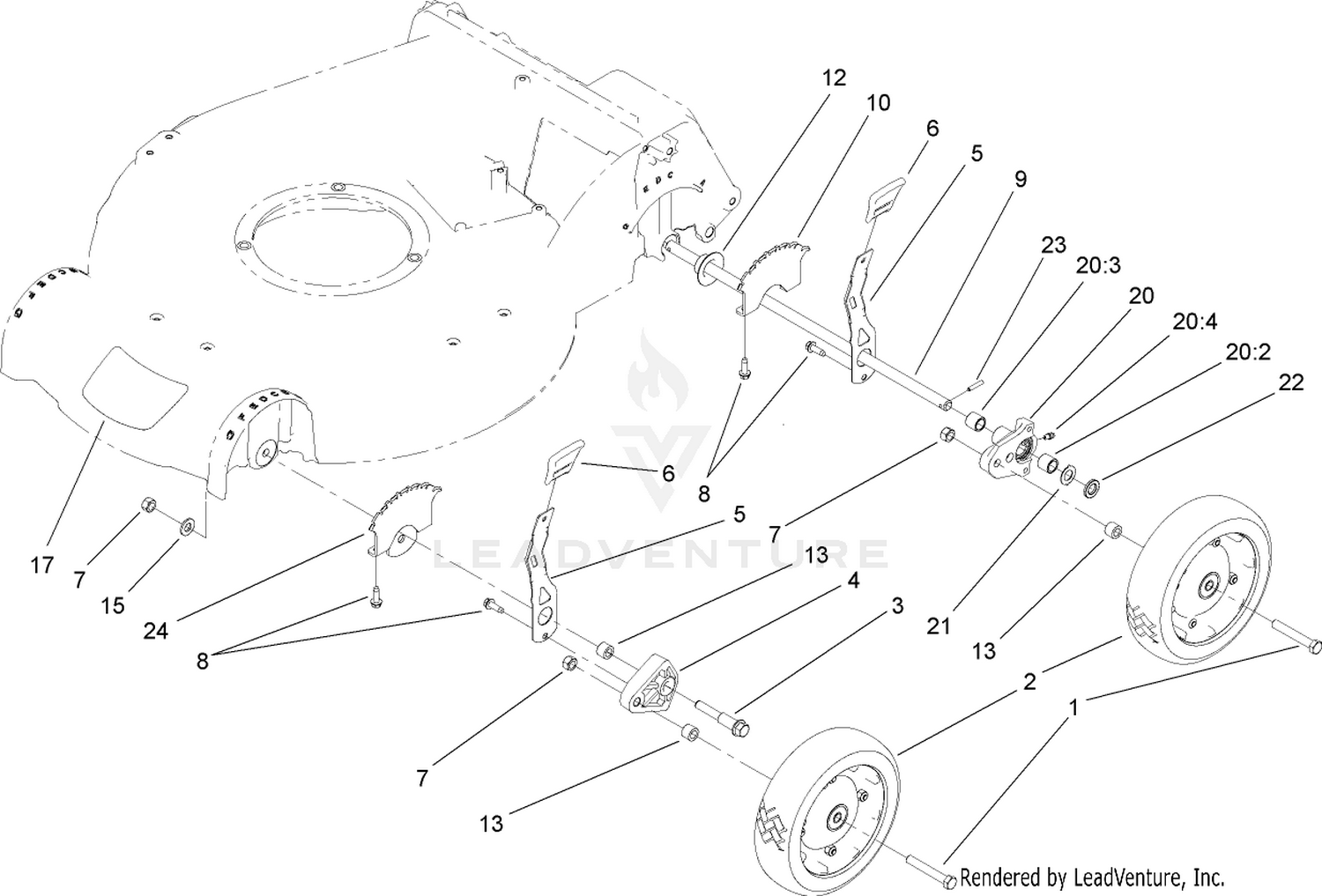

| Ref | Part Number | Description |
|---|
| 1 |
323-12 |
SCREW-HH Price: $1.14 |
| 2 |
121-1380 |
WHEEL AND TIRE ASM This part replaces 100-2870. Price: $92.99 |
| 3 |
114-3467 |
SCREW-SHOULDER Price: $5.17 |
| 4 |
107-7492 |
ARM-PIVOT Price: $11.34 |
| 5 |
107-7491 |
ARM-SPRING Price: $8.36 |
| 6 |
110-0549 |
KNOB-HOC Price: $1.08 |
| 7 |
603773 |
LOCKNUT Price: $2.09 |
| 8 |
49-2040 |
SCREW-HWHTF Price: $1.99 |
| 9 |
49-8790 |
SHAFT-AXLE, REAR Price: $38.26 |
| 10 |
107-7478 |
PLATE-HOC Price: Call Us |
| 12 |
138-3235 |
CAP-END This part replaces 42-3520. Price: $2.29 |
| 13 |
52-2480 |
SPACER-WHEEL Price: $5.89 |
| 15 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 17 |
110-4929 |
DECAL-HOUSING, FRONT Price: $10.11 |
| 20 |
100-8774 |
PIVOT ARM ASM Price: $24.99 |
| 21 |
65-4730 |
WASHER-ARM, PIVOT Price: $2.17 |
| 22 |
108-5059 |
SPACER-BUSHING Price: $4.66 |
| 23 |
32121-108 |
PIN-SPIROL Price: $4.45 |
