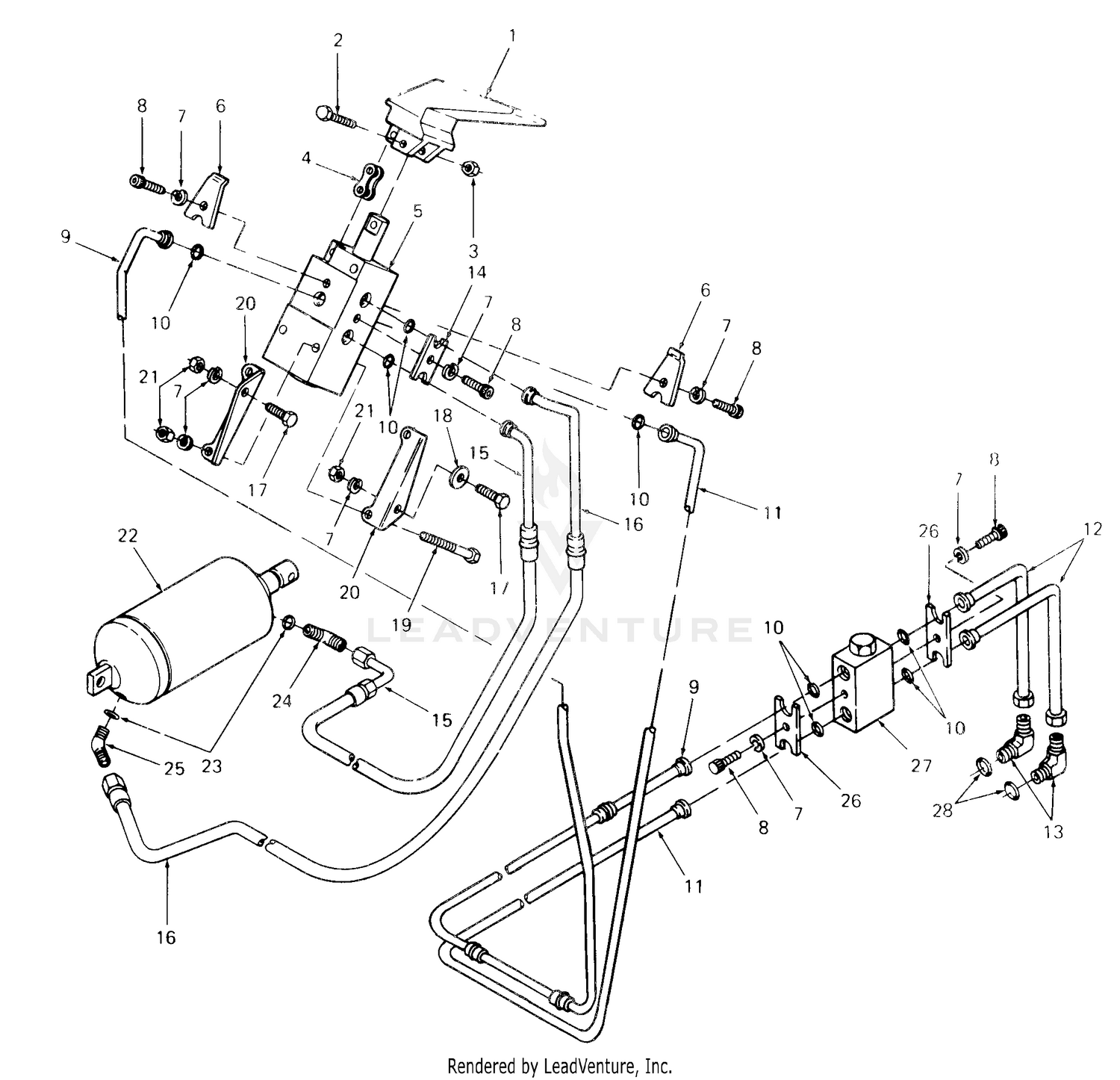

| Ref | Part Number | Description |
|---|
| 1 |
304-73 |
FITTING-STRAIGHT Price: $12.59 |
| 1 |
731-3100A |
VALVE HANDLE Not Available Price: |
| 2 |
910-0749 |
CHAIN ADJUSTMENT BOLT Not Available This part replaces 710-0749. Price: |
| 2 |
99-8351 |
FILTER-FUEL, INLINE Price: $63.90 |
| 3 |
353-783 |
FITTING-STR Price: $29.05 |
| 3 |
712-0998 |
Nut, Hex Center Lock, #10-24 Not Available Price: |
| 4 |
2412-98 |
CLAMP-HOSE Price: $1.39 |
| 4 |
913-3000 |
CHAIN LINK Not Available This part replaces 713-3000. Price: |
| 5 |
110-4007 |
HOSE-FUEL This part replaces 104-0078. Price: $26.06 |
| 6 |
62-7650 |
GASKET Price: $4.28 |
| 6 |
703-1802 |
SINGLE CLAMP Not Available Price: |
| 7 |
63-7640 |
SENDER-FUEL Price: $94.22 |
| 7 |
936-0329 |
L-Wash. 1/4" I.D. This part replaces 736-0329. Price: $3.90 |
| 8 |
3253-15 |
WASHER-LOCK Price: $1.49 |
| 8 |
710-3218 |
Screw, Socket Hd Cap, 1/4-20 X .62 Lg GR8 Price: $3.86 |
| 9 |
32122-24 |
SCREW-PTH Price: $0.27 |
| 9 |
727-3066 |
Tube Assy, Return Price: $182.90 |
| 10 |
110-4104 |
HOSE-FUEL This part replaces 93-2042. Price: $8.95 |
| 10 |
921-3021 |
O-RING .301 IDX.070 This part replaces 721-3021. Price: $3.39 |
| 11 |
2412-108 |
CLAMP-WORM Price: $1.29 |
| 11 |
727-3067 |
Tube Assy, Pressure Price: $86.36 |
| 12 |
110-4106 |
HOSE-FUEL This part replaces 104-0077. Price: $30.05 |
| 12 |
727-3068 |
Tube Assy, Adapter Price: $40.11 |
| 13 |
354-22 |
FITTING-BARBED Price: $4.64 |
| 13 |
727-3012 |
Elbow, Tube, 90 Degree Price: $23.35 |
| 14 |
354-21 |
FITTING-BARBED Price: $6.88 |
| 14 |
903-1803 |
VALVE DOUBLE CLAMP Not Available This part replaces 703-1803. Price: |
| 15 |
354-20 |
FITTING-TEE Price: $12.61 |
| 15 |
727-3046 |
CYLINDER HOSE Not Available Price: |
| 16 |
110-4103 |
HOSE-FUEL This part replaces 98-9338. Price: $18.01 |
| 16 |
727-3045 |
CYLINDER HOSE Not Available Price: |
| 17 |
110-4109 |
HOSE-FUEL This part replaces 104-0076. Price: $11.24 |
| 17 |
710-0751 |
SCREW 1/4-20 x .620 GR5 Price: $3.63 |
| 18 |
66-8121 |
STANDPIPE Price: $23.18 |
| 18 |
736-0270 |
SPRING WASHER BELL Price: $3.63 |
| 19 |
46-6550 |
FITTING-ELBOW, 90 DEG Price: $37.39 |
| 19 |
710-0641 |
Screw, Hex Cap, 1/4-20 X 2 25 Lg Price: $3.66 |
| 20 |
46-6560 |
BUSHING Price: $2.94 |
| 20 |
703-1801 |
VALVE MOUNTING BRACKET Not Available Price: |
| 21 |
712-3006 |
HEX NUT Price: $4.05 |
| 21 |
93-3102 |
CAP-FUEL Price: $24.02 |
| 22 |
105-7933 |
TANK-FUEL This part replaces 104-0084. Price: $275.80 |
| 23 |
240-11 |
BUSHING-FLANGE Price: $5.32 |
| 23 |
721-3002 |
O-RING-1/4 Not Available Price: |
| 24 |
63-8410 |
WASHER Price: $1.76 |
| 25 |
33105-025 |
SCREW-HHF Price: $1.56 |
| 26 |
703-1802 |
SINGLE CLAMP Not Available Price: |
| 26 |
92-2379 |
CLAMP-HOSE Price: $0.34 |
| 27 |
2412-146 |
CLAMP-HOSE Price: $1.46 |
| 27 |
717-3331 |
VALVE-RELIEF Not Available Price: |
| 28 |
240-9 |
GROMMET Price: $3.25 |
| 30 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 31 |
321-11 |
SCREW-HH Price: $0.36 |
