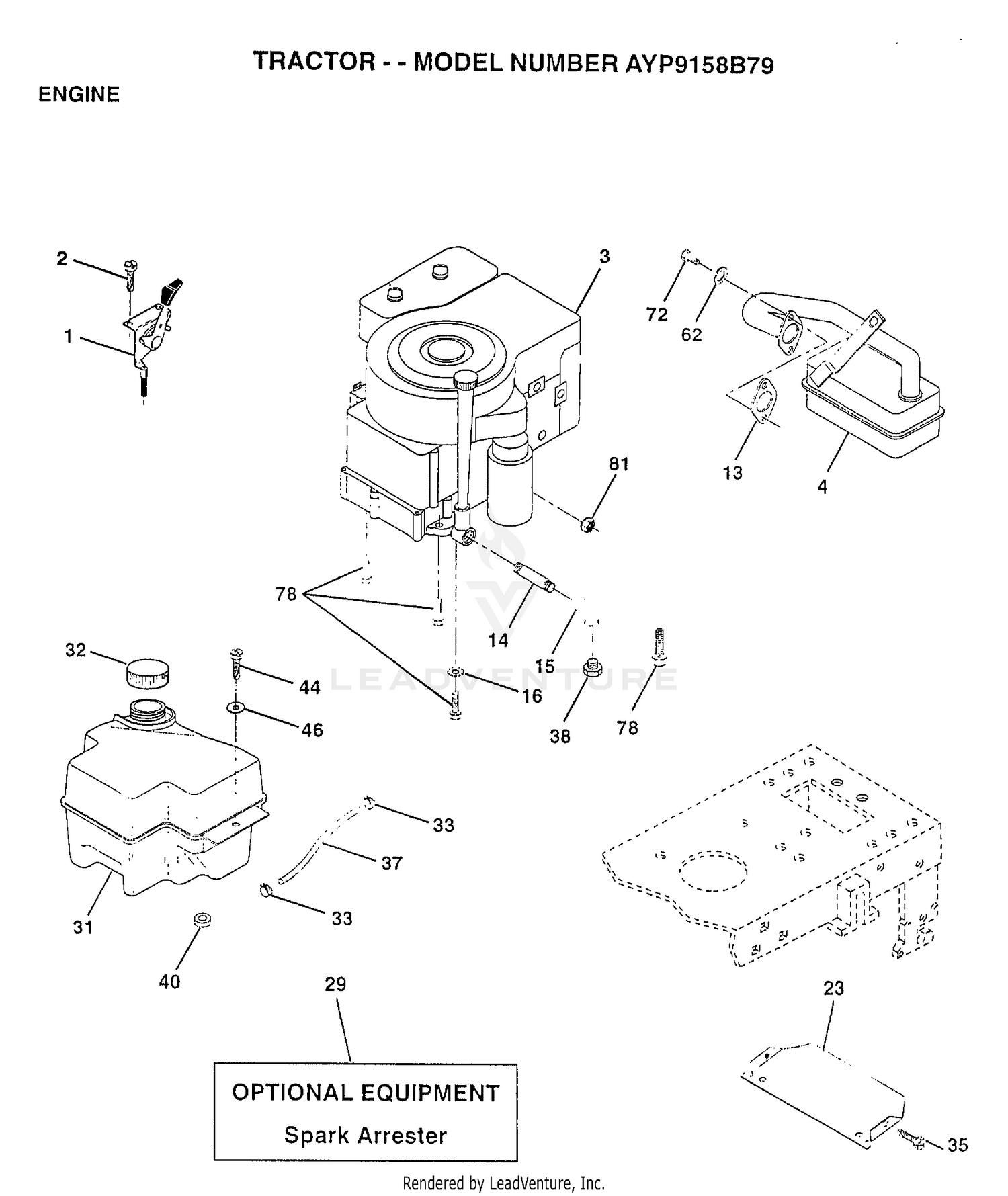

| Ref | Part Number | Description |
|---|
| 1 |
140310 |
CONTROL THROTTLE Price: Call Us |
| 1 |
32144-14 |
SCREW-HWHTF Price: $4.29 |
| 2 |
106-9208 |
SHORT CYLINDER PIN ASM Price: $83.12 |
| 2 |
17720410 |
SCREW LT Price: Call Us |
| 3 |
28N777-0182-01 |
ENGINE B&S Price: Call Us |
| 3 |
99-5643 |
HOSE-HYD Price: $125.90 |
| 4 |
137352 |
MUFFLER Price: Call Us |
| 5 |
340-132 |
FITTING-ELBOW, 90 DEG Price: $24.64 |
| 6 |
340-92 |
FITTING-STRAIGHT Price: $12.29 |
| 7 |
99-5641 |
HOSE-HYD Price: $136.64 |
| 8 |
94-5808 |
DISCONTINUED Price: Call Us |
| 9 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 10 |
92-8002 |
SWITCH-LIFT, BACK BIASED Price: $105.67 |
| 11 |
125-1906 |
PIN-CYLINDER This part replaces 105-9889. Price: $27.84 |
| 13 |
272293 |
GASKET ENG 1 313 LD TIN PLATED Price: Call Us |
| 13 |
283-6 |
PIN-CLEVIS Price: $1.70 |
| 14 |
13280324 |
PIPE NIPPLE Price: Call Us |
| 14 |
75-5220-03 |
DISCONTINUED Price: Call Us |
| 15 |
13200300 |
ELBOW Price: Call Us |
| 15 |
75-5200-03 |
BRACKET-SPRING, RH Price: $95.29 |
| 16 |
11050600 |
LOCKWASHER Price: Call Us |
| 16 |
75-5210-03 |
BRACKET-SPRING, CENTER Price: $94.91 |
| 17 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 18 |
3296-51 |
NUT-LOCK, NI Price: $3.23 |
| 19 |
328-7 |
SCREW-HH Price: $4.00 |
| 20 |
32151-48 |
E-RING Price: $1.41 |
| 21 |
282-4 |
SHACKLE Price: $32.98 |
| 22 |
5-0743-03 |
SPRING-MOWER Price: $188.53 |
| 23 |
156123 |
SHIELD-HEAT Price: Call Us |
| 23 |
3296-44 |
NUT-LOCK, NI Price: $2.46 |
| 24 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 25 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 26 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 27 |
163-3535 |
CYLINDER-HYDRAULIC This part replaces 93-9310. Price: $582.35 |
| 28 |
32120-93 |
RING-RETAINING Price: $2.49 |
| 29 |
137180 |
SUB= 532137180 Price: Call Us |
| 29 |
3-6498 |
WASHER-THRUST Price: $4.58 |
| 30 |
104-0046 |
PIN-SLIDE, CYLINDER Price: $10.19 |
| 31 |
140280 |
SUB= 161911 Price: Call Us |
| 31 |
75-5900 |
HOSE Price: $78.45 |
| 32 |
140527 |
CAP ASM FUEL Price: Call Us |
| 32 |
32104-76 |
SCREW-HWHTF Price: $2.29 |
| 33 |
123487X |
HOSE CLAMP Price: Call Us |
| 33 |
75-6370 |
CAP-SENSOR Price: $8.87 |
| 34 |
104-0028 |
GUIDE-HOSE Price: $46.21 |
| 35 |
17490512 |
SCREW Price: Call Us |
| 35 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 37 |
110-9709 |
HYD CYLINDER ASM This part replaces 99-6986. Price: $743.86 |
| 37 |
137040 |
LINE FUEL Price: Call Us |
| 39 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 40 |
124028X |
SUB= 532124028 Price: Call Us |
| 41 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 44 |
17490412 |
SCREW HEX CRT Price: Call Us |
| 46 |
19091416 |
WASHER Price: Call Us |
| 49 |
17490616 |
SCREW GTV Price: Call Us |
| 62 |
10040500 |
LOCKWASHER Price: Call Us |
| 72 |
71070512 |
SCREW Price: Call Us |
| 78 |
17490620 |
SCREW Price: Call Us |
