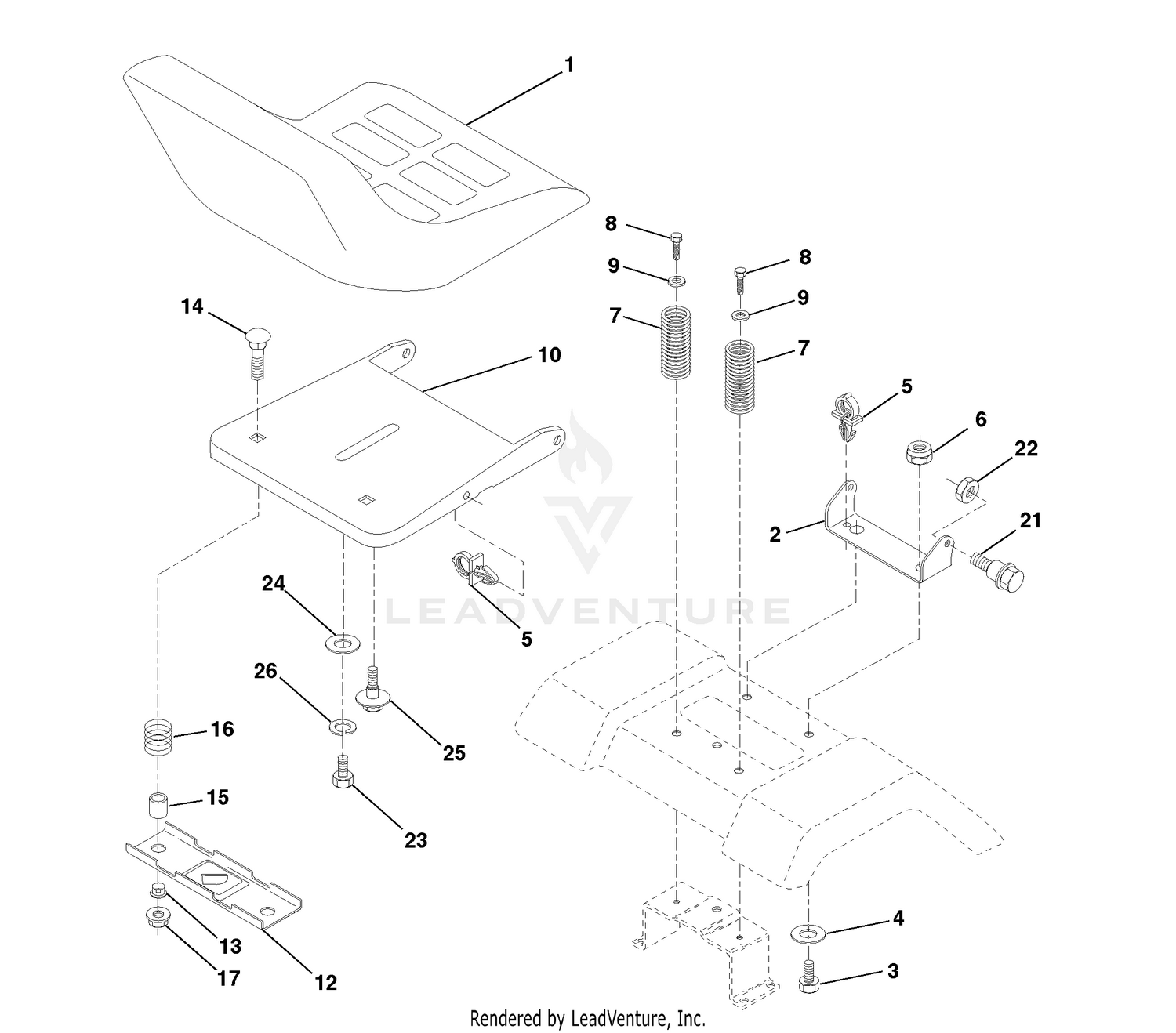

| Ref | Part Number | Description |
|---|
| 1 |
532401042 |
SEAT.XG090.BLK.KB/BLT.NO-LOG This part replaces 532140838. Price: $149.99 |
| 1 |
98-5454 |
TENSION ARM - RIGHT Price: Call Us |
| 2 |
531152401 |
SERVICE KIT BRACKET SEAT PIVOT This part replaces 532140551. Price: $8.99 |
| 2 |
98-5833 |
BALL JOINT Price: $143.57 |
| 3 |
33018-00 |
NUT-HEX Price: $0.68 |
| 3 |
596564401 |
Bolts This part replaces 874760616. Price: $3.99 |
| 4 |
819131610 |
WASHER PM Price: $4.99 |
| 4 |
98-5810 |
ROD - TENSION Price: $182.67 |
| 5 |
33114-016 |
SCREW-HH Price: $0.27 |
| 5 |
532145006 |
PUSH CLIP Price: $2.99 |
| 6 |
3253-4 |
WASHER-LOCK This part replaces 42-9850. Price: $0.25 |
| 6 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 7 |
587613301 |
SPRING.COMPRESSION.SEAT.BLACK This part replaces 532124181. Price: $5.99 |
| 7 |
98-5455 |
TENSION ARM - RIGHT Price: $206.00 |
| 8 |
817000616 |
SCREW 3/8-16X1 This part replaces 817490616. Price: $5.99 |
| 9 |
596140201 |
Washers This part replaces 819131614. Price: $2.99 |
| 9 |
98-5457 |
SPACER Price: Call Us |
| 10 |
532195530 |
PAN.ASM.SEAT.1SLOT This part replaces 532155925. Price: $17.99 |
| 10 |
98-5834 |
BALL JOINT,LH THREAD Price: $143.57 |
| 12 |
532174648 |
BRKT.MNTNG.SWITCH.SEAT.BLACK This part replaces 532121246. Price: $8.99 |
| 13 |
33114-030 |
SCREW-HH Price: $0.50 |
| 13 |
532121248 |
BUSHING Price: $4.99 |
| 14 |
33024-00 |
NUT-LOCK, NI Price: $0.75 |
| 14 |
872050412 |
BOLT.ROUND.HEAD.SQUARE.NECK Price: $4.99 |
| 15 |
33094-00 |
WASHER-PLAIN Price: $0.25 |
| 15 |
532134300 |
SPACER SPLIT 28X.96 Price: $3.99 |
| 16 |
532121250 |
SPRING Price: $3.99 |
| 16 |
98-5444 |
BUSHING Price: $18.39 |
| 17 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 532123976. Price: $3.99 |
| 18 |
98-5523 |
STOP-RUBBER Price: $48.53 |
| 21 |
587907801 |
BOLT.5/16-18X5/8.SHOULDER This part replaces 532153236. Price: $2.99 |
| 21 |
98-5450 |
RING Price: Call Us |
| 22 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 23 |
871110814 |
BOLT.HEX.BLACK This part replaces 874780814. Price: $8.99 |
| 24 |
819171912 |
WASHER Price: $3.99 |
| 25 |
532127018 |
BOLT,SHOULD Price: $4.99 |
