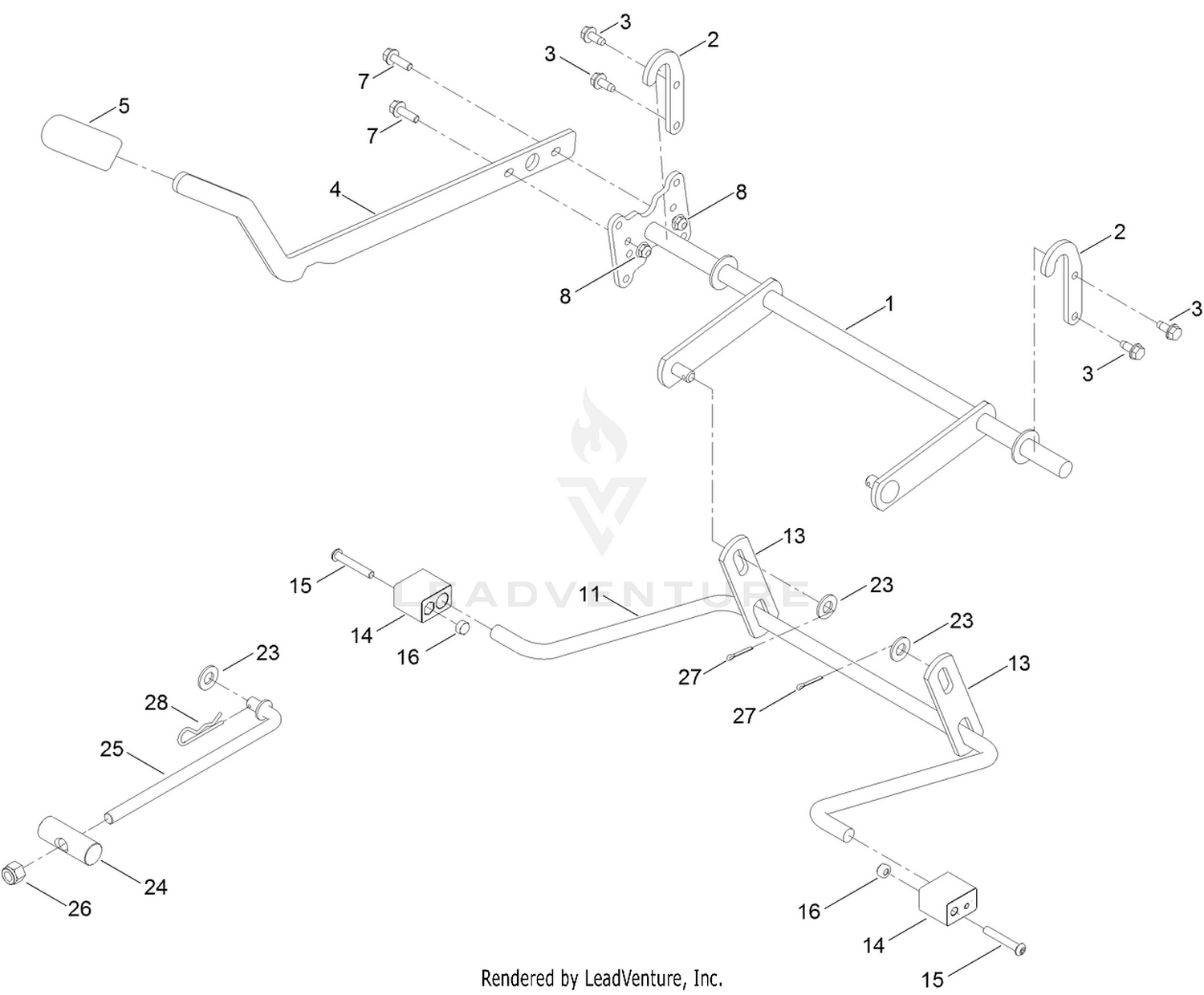

Deck Lift Assembly
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 132-6872-03 | LIFT-DECK, NARROW Price: $34.67 |
| 2 | 138-7233 | BRACKET-LIFT Price: $3.78 |
| 3 | 32144-70 | SCREW-HWHTF Price: $1.99 |
| 4 | 119-3427-03 | LEVER-LIFT Price: $15.92 |
| 5 | 1-633268 | GRIP-LEVER Price: $13.99 |
| 7 | 139-2596 | SCREW-HHF Price: $0.78 |
| 8 | 119-4041 | NUT-HF Price: $0.48 |
| 11 | 138-7234 | ARM-LIFT, REAR Price: $22.72 |
| 13 | 138-7235 | LINK-LIFT Price: $4.88 |
| 14 | 108-7845 | BLOCK-PIVOT Price: $11.42 |
| 15 | 120-5499 | SCREW-HSBH Price: $1.27 |
| 16 | 119-4038 | NUT-HEX Price: $0.31 |
| 23 | 139-2611 | WASHER-FLAT Price: $0.29 |
| 24 | 119-8810 | PIN-PIVOT Price: $11.11 |
| 25 | 133-4319 | ROD-MOUNT, DECK Price: $10.35 |
| 26 | 139-1725 | NUT-HEX Price: $0.66 |
| 27 | 139-2614 | PIN-COTTER Price: $0.29 |
