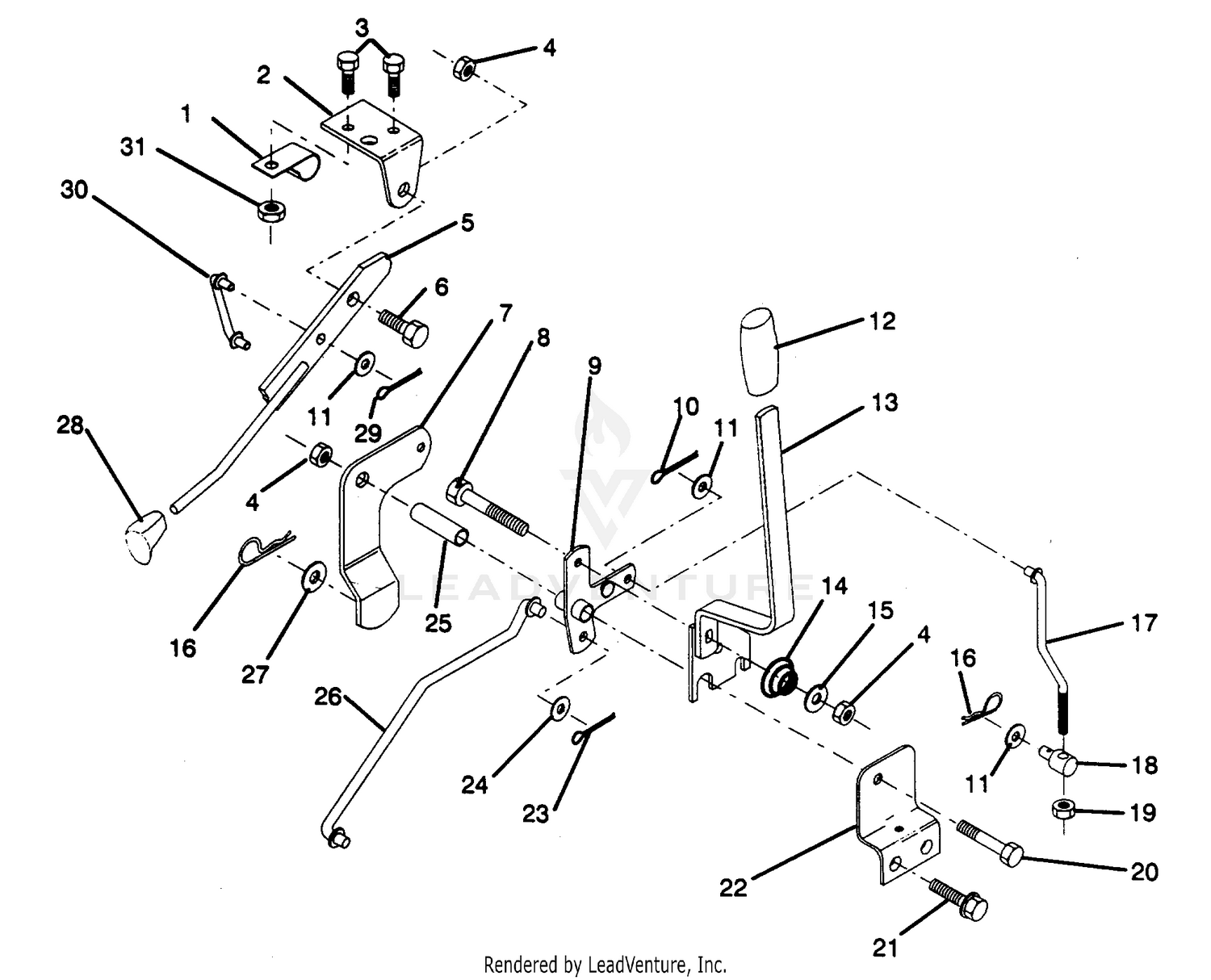

| Ref | Part Number | Description |
|---|
| 1 |
532126470 |
Clip, Insulated (AYP part number) Price: $3.99 |
| 2 |
136-2131 |
LH LEVER ASM This part replaces 136-1753. Price: $1,076.72 |
| 2 |
532122018 |
Bracket, Mower Clutch (AYP part number) Price: $2.38 |
| 3 |
132-1418 |
CAP-SWITCH Price: $104.49 |
| 3 |
539990071 |
HCS 1/4-20. This part replaces 874780408. Price: $1.99 |
| 4 |
3245-42 |
SCREW-SET Price: $1.42 |
| 4 |
873680600 |
Nut, Crownlock 3/8-16 UNC Price: $1.99 |
| 5 |
532145187 |
Assembly, Clutch Lever (AYP part number) This part replaces 532123417. Price: $5.69 |
| 6 |
532106451 |
Bolt, Shoulder (AYP part number) Price: $2.99 |
| 7 |
532123491 |
Assembly, Mower Clutch Arm (AYP part number) Price: $6.49 |
| 8 |
874760636 |
Bolt, Hex 3/8-16 UNC x 2 1/4 (AYP part number) Price: $2.99 |
| 9 |
532121930 |
Assembly, Bellcrank Lift (AYP part number) Price: $11.99 |
| 10 |
876020412 |
Pin, Cotter 1/8 x 3/4 (AYP part number) Price: $3.99 |
| 11 |
819131316 |
Washer, 13/32 x 13/16 x 16 Ga. (AYP part number) Price: $2.99 |
| 12 |
532122027 |
Grip, Handle (AYP part number) Price: $5.72 |
| 13 |
532127028 |
Assembly, Lift Handle (AYP part number) Price: $19.37 |
| 14 |
532123496 |
Spring, Compression (AYP part number) Price: $2.99 |
| 15 |
734117201 |
WASHER This part replaces 819131212. Price: $1.99 |
| 16 |
532004921 |
Retainer, Spring (AYP part number) Price: $3.99 |
| 17 |
532123654 |
Link, Front Lift (AYP part number) Price: $28.99 |
| 18 |
532142028 |
Trunnion, Threaded 3/8-16 (AYP part number) This part replaces 532007078. Price: $2.99 |
| 19 |
873220600 |
NUT.HEX.3/8-16UNC This part replaces 873350600. Price: $3.99 |
| 20 |
874760644 |
Bolt, Fin. Hex 3/8-16 UNC x 2 3/4 (AYP part number) Price: $3.99 |
| 21 |
817490508 |
Screw, Hex Thdrol. 5/16-18 x 1/2 (AYP part number) Price: $3.99 |
| 22 |
532121929 |
Bracket, Mower Height (AYP part number) Price: $2.38 |
| 23 |
876020416 |
Pin, Cotter 1/8 x 1 (AYP part number) Price: $3.99 |
| 24 |
819171616 |
Washer 17/32 x 1 x 16 Ga. (AYP part number) Price: $5.99 |
| 25 |
532121933 |
Tube, Spacer (AYP part number) Price: $4.28 |
| 26 |
532141470 |
Rod, Mower Lift (AYP part number) This part replaces 532121934. Price: $14.65 |
| 27 |
819131316 |
Washer, 13/32 x 13/32 x 16 Ga. (AYP part number) Price: $2.99 |
| 28 |
532106932 |
Knob (AYP part number) Price: $2.99 |
| 29 |
876020308 |
Pin, Cotter 3/32 x 1/2 (AYP part number) This part replaces 876020312. Price: $1.99 |
| 30 |
532123671 |
Link, Mower Clutch (AYP part number) Price: $7.99 |
