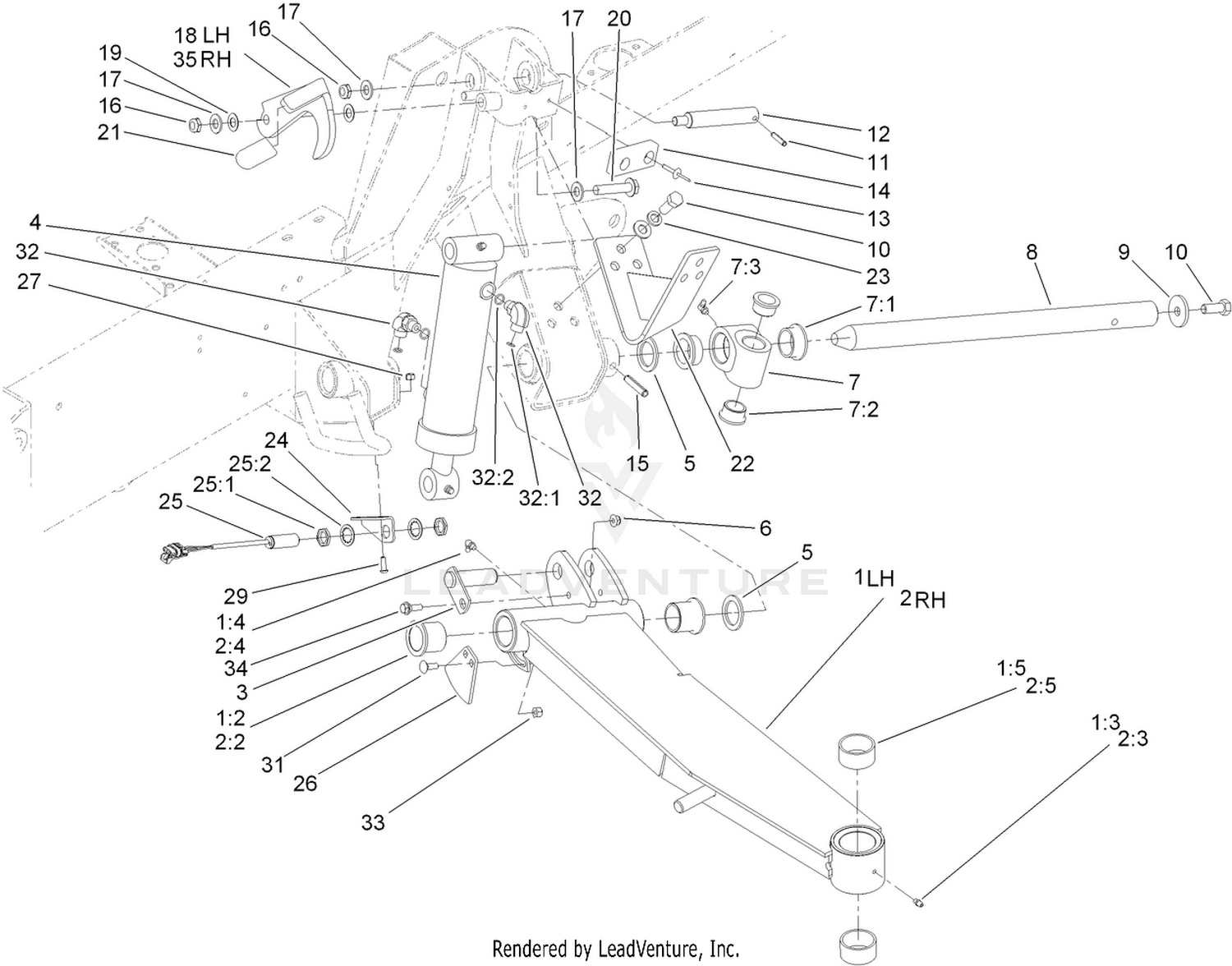

| Ref | Part Number | Description |
|---|
| 1 |
119-0089 |
LH LIFT ARM ASM Price: $786.32 |
| 2 |
119-0087 |
RH LIFT ARM ASM Price: $877.37 |
| 3 |
131-4305 |
PIN This part replaces 100-5674. Price: $24.18 |
| 4 |
139-0956 |
HYD CYLINDER ASM This part replaces 107-4303. Price: $1,027.18 |
| 5 |
256-304 |
WASHER-THRUST Price: $3.94 |
| 6 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 7 |
138-5253 |
PIVOT HUB ASM This part replaces 115-5468. Price: $73.95 |
| 8 |
100-5582 |
SHAFT-PIVOT, LIFT ARM Price: $107.45 |
| 9 |
106-2008 |
WASHER-THRUST Price: $5.16 |
| 10 |
325-5 |
SCREW-HH Price: $1.20 |
| 11 |
32121-9 |
PIN-ROLL, SLOTTED Price: $2.56 |
| 12 |
104-3537 |
PIN-CYLINDER Price: $66.99 |
| 13 |
3269-11 |
RIVET-POP Price: $0.68 |
| 14 |
86-5350 |
BUMPER-RUBBER Price: $46.29 |
| 15 |
32121-110 |
PIN-ROLL, SLOTTED Price: $1.93 |
| 16 |
3296-45 |
NUT-HEX Price: $3.79 |
| 17 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 18 |
104-3557-03 |
LATCH-LH Price: $58.58 |
| 19 |
104-3577 |
WASHER Price: $0.76 |
| 20 |
3234-46 |
SCREW-HHF Price: $2.08 |
| 21 |
48-7081 |
GRIP-PLASTIC Price: $7.54 |
| 22 |
104-8330-03 |
BRACKET-CAM Price: $98.33 |
| 23 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 24 |
119-0076 |
MOUNT-SWITCH, WING Price: $12.67 |
| 25 |
115-5300 |
PROXIMITY SWITCH ASM Price: $137.95 |
| 26 |
119-0077 |
PLATE-SENSING, WING Price: $6.39 |
| 27 |
104-7201 |
NUT-HF Price: $0.69 |
| 29 |
3274-69 |
SCREW-HSBH Price: $0.43 |
| 31 |
3230-16 |
SCREW-CARR Price: $1.79 |
| 32 |
340-77 |
FITTING-ELBOW, 90 DEG Price: $24.95 |
| 33 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 34 |
27-0410 |
SCREW-SHOULDER Price: $2.59 |
