Home / OPE / Zero-Turn Lawn Mowers / Apex and Zenith / 991324 (A0401098 -) Apex 48 SD CE / Deck Lift - RH

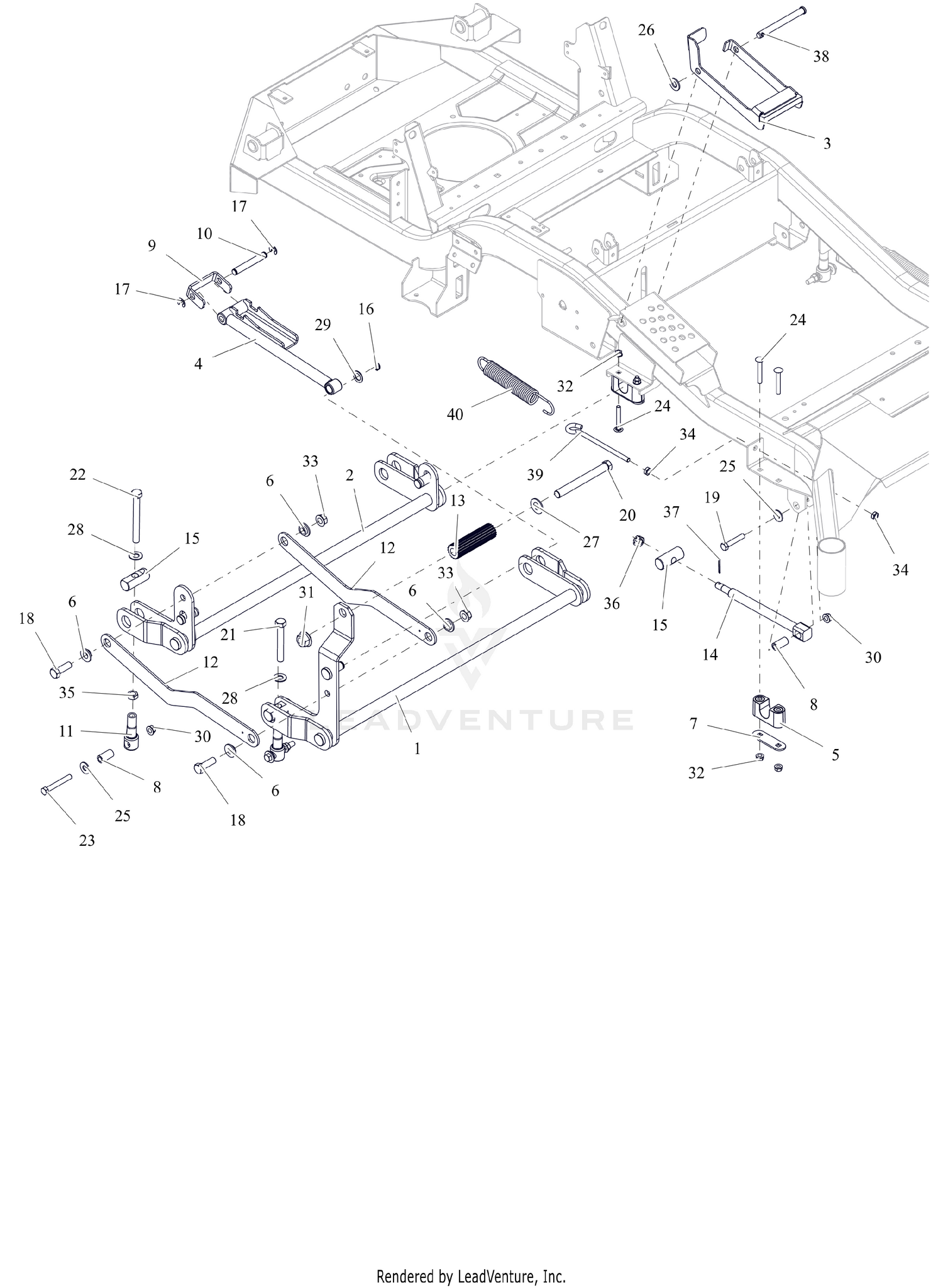

Deck Lift - RH

Deck Lift - RH

Parts (39)

RefPart NumberDescription
1 05019659 WLDMT, FRONT DECK LIFT PIVOT Price: $111.45
2 05019759 WLDMT, REAR DECK LIFT PIVOT Price: Call Us
3 05025259 BRKT, HOC TRANSFER LOCK Price: $32.95
4 05186359 WLDMT, HOC ARM Price: $67.45
5 07500414 ASM-BUSHING, DECK LIFT Price: $21.95
6 03989100 BSHG-FLG .515X.750X.395X1.120 Price: $3.45
7 04766551 PLATE, BEARING SUPPORT Price: $7.45
8 04895200 SPACER, DECK LEVELING Price: $2.45
9 05077551 BRKT, HOC LINE Price: $11.45
10 05800210 PIN, .499/.494 x 3.385 CLEVIS This part replaces 05077700. Price: $4.45
11 05081400 LINK, DECK LIFT FORMED Price: $14.45
12 05083959 LINK, DECK LIFT Price: $10.95
13 05120951 ROD, FOOT PEDAL (BLACK) Price: $20.45
14 05126700 DRAG,LINK-HD Price: $18.45
15 05149500 PIN, DECK LIFT Price: $14.95
16 05709200 RG-RTNG-EXT .625X.050 Price: $2.45
17 05710200 RG-RTNG-EXT .500X.042 (E) Price: $0.95
18 05901631 BLT,HEX .50-13X1.50 G5 ZCC Price: $3.95
19 05901718 BLT,HEX .38-16X2.00 G5 ZCC Price: $2.95
20 05901730 BLT, HEX .62-11X5.50 G5 FBP Price: $6.45
21 05901735 BLT, HEX .50-13X3.50F G5 ZCC Price: $5.45
22 05901736 BLT, HEX .50-13X4.50F G8 ZCC Price: $8.95
23 05901813 BLT, HEX .38-16X2.75 G8 ZCC Price: $1.45
24 06200311 BLT, RHSSN.31-18X2.25 G5 ZCC Price: $3.95
25 06401008 WSHR,FLT .438X1.00X.083 ZCC Price: $1.45
26 06401015 WSHR,FLT .531X1.062X.095 ZCC Price: $0.95
27 06401039 WSHRFLT 5/8SAE CARBHARD FBP Price: $3.45
28 06401116 WSHR, FLT .557X1.040X.102 ZCC Price: $1.45
29 06401117 WSHR, FLT .630X1.005X.062 ZCC Price: $0.45
30 06500822 NUT-LK-TOP-FLG .38-16 ZC120 Price: $0.95
31 06500835 NUT,FLG-TOP LK .625-11 FBP Price: $6.45
32 06500840 NUT,LK-CTR-FLG .31-18 GF ZCC Price: $0.95
33 06500907 NUT-LK-TOP-FLG .500-13 GF ZCC Price: $1.45
34 06500910 NUT-JAM .375-16 G2 ZCC Price: $0.95
35 06500911 NUT-JAM .500-13 G2 ZCC Price: $1.45
36 06505000 NUT-SL .50-13 Price: $3.45
37 06700212 PIN,CTR.12X1.25EXTPRSQCT ZC120 Price: $0.45
38 06800201 PIN-SLIC .50X4.97X4.55 -ZCC Price: $7.45
39 07001814 BOLT,.38-16 X 5.25-.62 DIA EYE Price: $12.45
