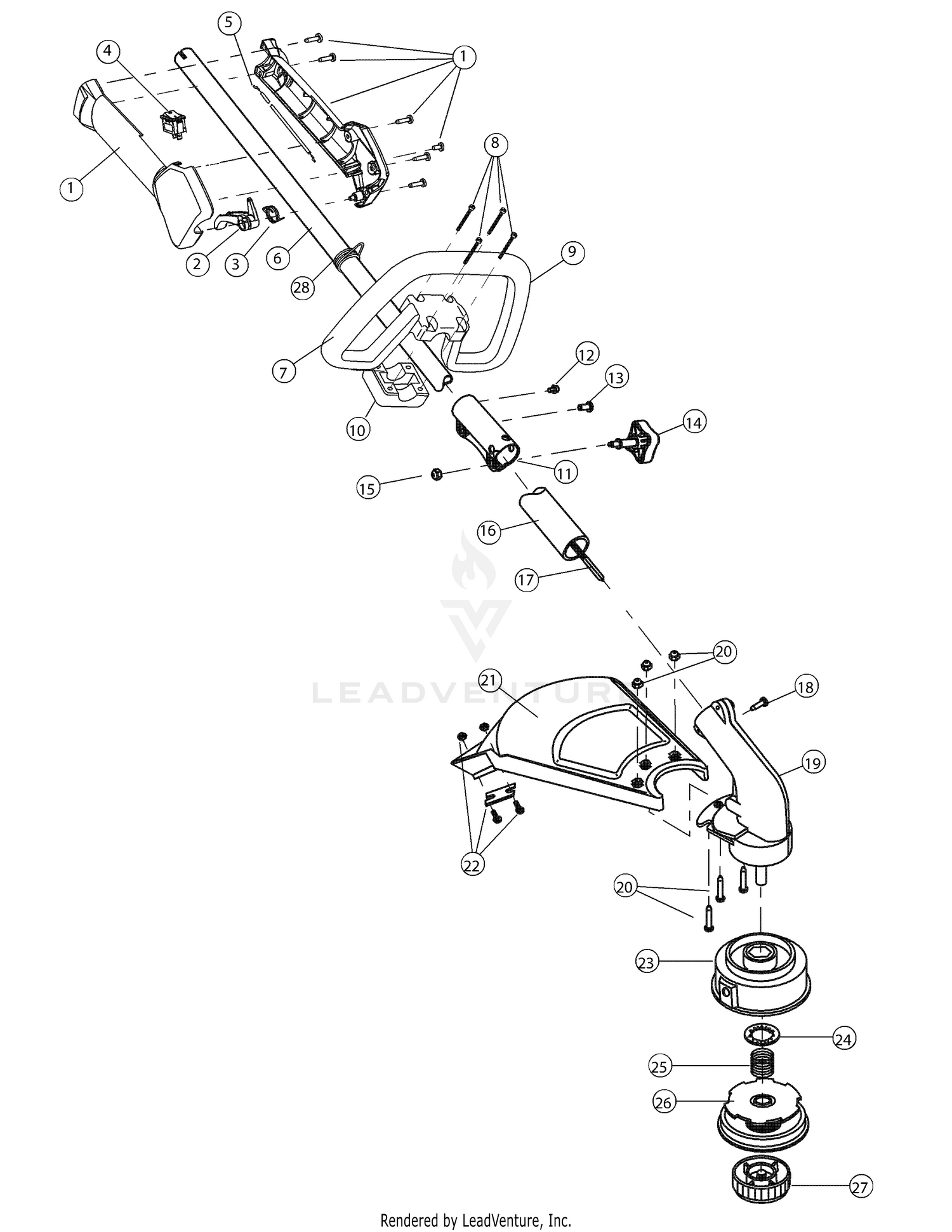

General Assembly
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 753-04119 | Throttle Trigger Price: $6.56 |
| 3 | 791-182690 | Throttle Trigger Spring Price: $7.01 |
| 4 | 791-182405 | Switch Price: $9.29 |
| 5 | 746-04085A | Throttle Cable Assembly Price: $9.32 |
| 6 | 753-04344 | Upper Drive Shaft Housing Assembly Price: $79.57 |
| 8 | 791-181070 | Screw Price: $3.95 |
| 9 | 791-182167 | HANDLE-LOOP Not Available Price: |
| 10 | 791-182168 | BASE-LOOP HANDLE Not Available Price: |
| 12 | 791-182057 | Screw Price: $3.93 |
| 13 | 791-181617 | Bolt Price: $4.59 |
| 14 | 697-00661-9 | CLICK LINK CLAMP Not Available This part replaces 791-181981. Price: |
| 15 | 712-04018A | Knob Retaining Nut Price: $3.78 |
| 16 | 753-04089 | TRIMMER BOOM ASSEMBLY Not Available Price: |
| 17 | 753-05182 | Lower Flexible Drive Shaft Price: $28.06 |
| 18 | 791-145569 | Anti-Rotation Screw Price: $9.02 |
| 20 | 791-180547 | ASSEMBLY, GUARD MOUNTING SCREWS Not Available Price: |
| 22 | 791-682061 | Blade Assembly Price: $12.51 |
| 24 | 791-610660 | Retaining Price: $4.29 |
| 25 | 791-610317B | Spring Price: $9.47 |
| 26 | 753-1155 | Inner Reel Price: $21.18 |
| 27 | 791-153066B | Bump Head Knob Assembly Price: $11.65 |
| 28 | 4301A | SHOULDER STRAP CLAMP Price: $3.06 |
| 28 | 791-610327 | Shoulder Strap Clip Price: $28.62 |
