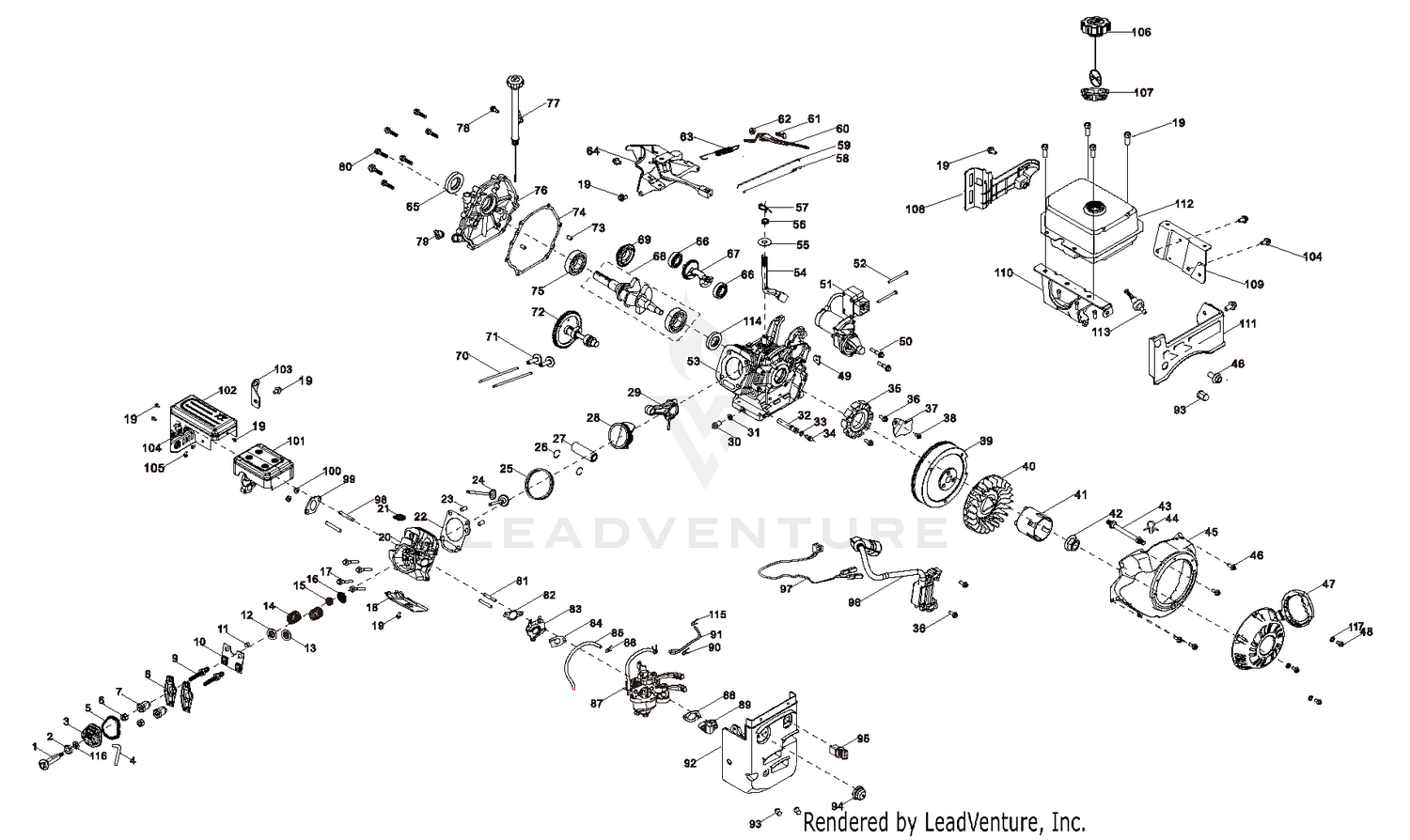

Engine - AX 420 - 08201513

Engine - AX 420 - 08201513

Parts (109)

RefPart NumberDescription
1 20100015 BOLT, VALVE COVER Price: $2.95
2 20100202 SEAL, VALVE COVER Price: $3.45
3 20100203 COVER, VALVE Price: $8.95
4 20100204 TUBE, BREATHER Price: $2.95
5 21597100 GASKET, COVER CYL HEAD Price: $5.45
6 20100060 NUT, VALVE LOCK Price: $0.95
7 20100062 NUT, VALVE ADJUSTING Price: $1.45
8 20100059 ROCKER, VALVE Price: $1.45
9 20100061 ROCKSHAFT BOLT Price: $1.45
10 20100055 ASM, LIFTER STOPPER PLATE Price: $1.45
11 20100206 CLAMP, VALVE LOCK Price: $3.45
12 20100207 EXHAUST VALVE SPRING SEAT Price: $3.45
13 20100208 SEAT, VALVE SPRING Price: $3.45
14 20100209 SPRING, VALVE Price: $1.95
15 20100210 GUIDE, SEAL Price: $3.45
16 20100021 RETAINER, VALVE SPRING Price: $1.45
17 21597200 BLT, CYL HEAD Price: $2.45
18 20100211 SHROUD, CYLINDER BODY Price: $3.45
19 20100386 BLT, HEX-FLG M6X12 Price: $0.45
20 21597300 HEAD SUBASSEMBLY, CYL Price: $65.95
21 20001113 SPARK PLUG - PLATINUM Price: $8.95
22 21597400 GASKET, CYL HEAD Price: $6.95
23 20100179 POSITION PIN - TYPE A Price: $0.95
24 21597500 VALVE SET Price: $16.45
30 20100004 BOLT, DRAIN PLUG Price: $1.45
31 20100175 FLAT WASHER Price: $0.95
32 20100005 TUBE, OIL DRAIN Price: $6.95
33 20100174 FLAT WASHER - GRADE A Price: $0.95
34 20100003 BOLT, DRAIN PLUG Price: $1.45
35 20100220 COIL SUBASSEMBLY, CHARGE Price: $23.45
36 21596800 BLT, HEX-FLG M6X28 Price: $0.95
37 20100221 CLAMP, CHARGE COIL Price: $1.45
38 20100146 BOLT, M6X10 HEX FLANGE Price: $0.95
39 20100223 FLYWHEEL SUBASSEMBLY Price: $65.95
40 20100224 IMPELLER Price: $8.95
41 20100225 PULLEY,STARTER Price: $6.95
42 20100048 NUT, FLYWHEEL Price: $2.45
43 20100165 STUD BOLT (BM=2D) Price: $5.95
44 20100226 WIRE CLIP Price: $0.95
45 20100227 SHROUD Price: $19.95
46 20100158 BOLT, M6X12 GRADE B HEX FLANGE Price: $0.95
47 20100228 STARTER ASSY, RECOIL Price: $23.45
48 20100144 BOLT, M6X8 HEX FLANGE Price: $0.95
49 20100229 PLUG, RUBBER Price: $0.95
50 20100155 BOLT, M8X35 HEX FLANGE Price: $0.95
51 20100232 STARTING MOTOR ASSEMBLY Price: $120.95
52 20100160 SCREW, PAN HEAD M4X55X0.7 Price: $0.95
54 20100075 ARM, GOVERNOR Price: $3.45
55 20100176 FLAT WASHER Price: $0.95
56 20100234 OIL SEAL Price: $1.45
57 20100177 COTTER PIN Price: $0.45
58 20100074 SPRING, THROTTLE VLV RETURNING Price: $0.45
59 20100235 ROD, GOVERNEOR Price: $1.45
60 20100236 GOVERNOR BRACKET SUBASSEMBLY Price: $4.45
61 20100237 BOLT, GOVERNOR SUPPORT Price: $0.95
62 20100167 HEXAGON NUT WITH FLANGE Price: $0.95
63 20100238 SPRING, GOVERNOR Price: $2.45
64 20100239 CONTROL ASSY, THROTTLE Price: $13.45
65 20100240 SEAL, OIL Price: $5.45
66 20100241 DEEP GROOVE BALL BEARING Price: $5.45
67 20100276 ASM, BALANCING SHAFT Price: $20.95
69 20100244 GEAR ASSY, GOVERNOR Price: $7.95
70 20100245 PUSH ROD, VALVE Price: $2.45
71 20100246 TAPPET, VALVE Price: $3.45
72 21598000 ASM, CAMSHAFT Price: $38.45
73 20100182 POSITION PIN Price: $0.95
74 20100248 GASKET, CRANKCASE Price: $6.95
75 20100249 DEEP GROOVE BALL BEARING Price: $13.45
76 20100250 COVER, CRANKCASE Price: $40.95
77 20100251 DIPSTICK SUBASSEMBLY, OIL Price: $10.95
78 20100391 BLT, HEX-FLG M6X25X1 Price: $0.45
79 20100252 PLUG SUBASSEMBLY, ENGINE OIL Price: $2.45
80 20100156 BOLT, M8X40 HEX FLANGE Price: $0.95
81 20100253 STUD BOLT (BM=2D) Price: $2.45
82 20100254 GASKET, INLET Price: $0.45
83 20100255 PLATE, CARBURETOR INSULATOR Price: $4.45
84 20100256 CARBURETOR SEAL GASKET Price: $0.45
85 20100257 LINE, PRIMER Price: $1.45
86 20100193 CLAMP Price: $0.45
87 21598100 ASM, CARBURETOR Price: $49.45
88 20100106 AIR CLEANER SEAL GASKET Price: $2.45
89 20100258 SEDIMENT CUP Price: $5.45
90 20100189 PIPE CLAMP Price: $0.95
91 20100191 TUBE, FUEL Price: $4.45
92 20100260 BOX, HEATER Price: $21.95
93 20100171 ACORN HEXAGON NUTS Price: $0.95
94 20100087 BULB, PRIMER Price: $6.95
95 20100139 ASM, STOP ENGINE SWITCH Price: $6.95
96 20100134 COIL, IGNITION Price: $19.95
97 20100262 WIRE, IGNITION COIL STOP ENGIN Price: $6.95
98 21598200 STUD BOLT (BM=2D) Price: $1.45
99 20100111 GASKET, EXHAUST OUTLET Price: $1.45
100 20100172 LOCK NUT Price: $2.45
101 20100264 MUFFLER ASSY. Price: $54.95
102 20100265 COVER, SCALD RESISTANT Price: $32.95
104 20100153 BOLT, M8X20 HEX FLANGE Price: $0.95
105 20100148 BOLT, M6X16 HEX FLANGE Price: $0.95
106 20100104 CAP, FUEL Price: $8.95
107 20100102 FUEL GAUGE Price: $1.45
108 20100266 FUEL TANK SHIELD 2 Price: $4.45
109 20100267 FUEL TANK INSTALL REAR BRKT Price: $13.45
110 20100268 FRAME, FUEL TANK INSTALLATION Price: $10.95
111 20100269 SHIELD,FUEL TANK Price: $7.95
112 20100270 FUEL TANK Price: $27.45
113 20100103 OUTLET WITH FILTER Price: $2.45
114 20100271 SEAL, OIL Price: $8.95
115 20100190 PIPE CLAMP Price: $0.95
116 21596700 COVER, CYL HEAD BOLT SEAL RING Price: $1.45
117 21596900 WSHR-FL, GR A Price: $0.95
