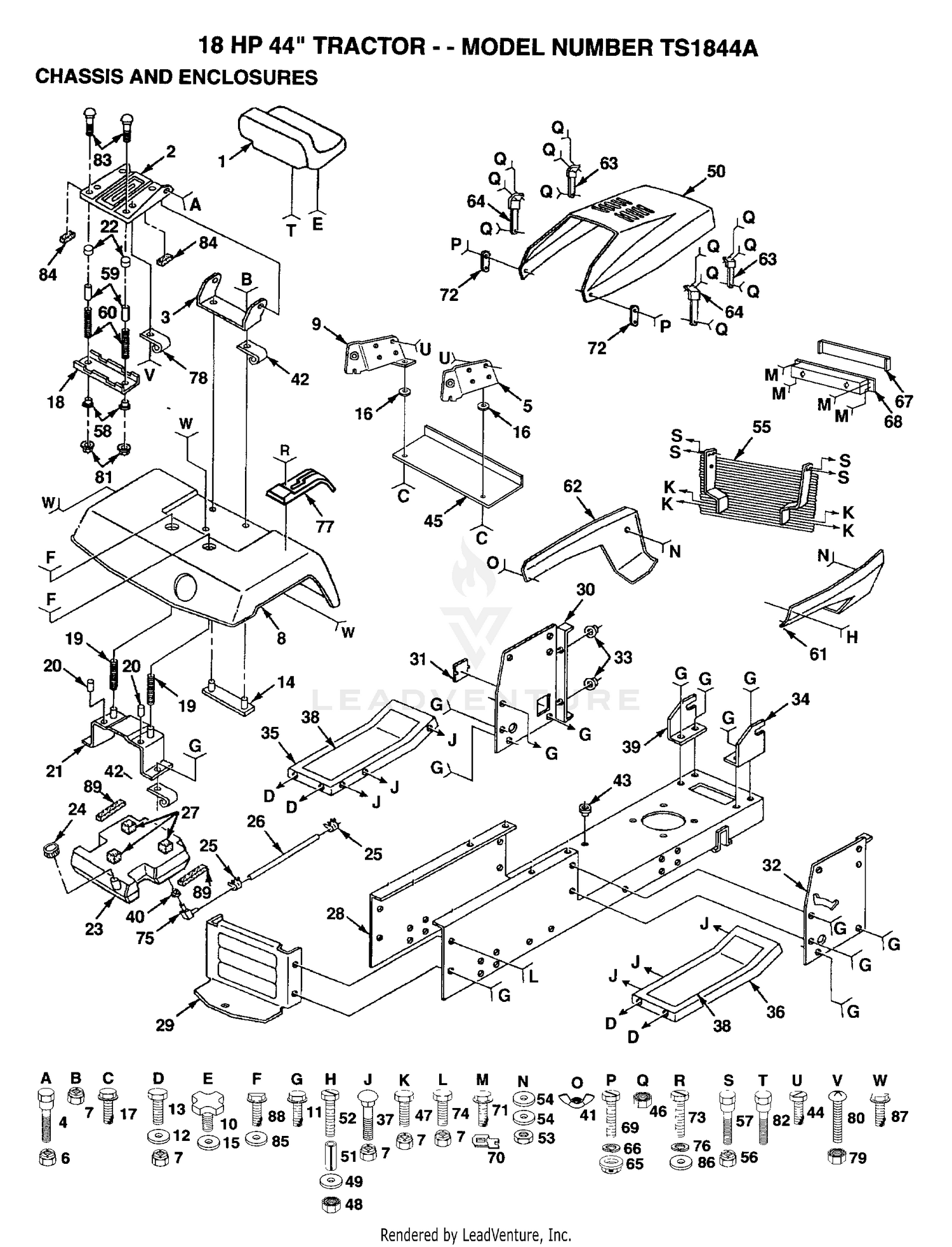

CHASSIS AND ENCLOSURES

CHASSIS AND ENCLOSURES

Parts (87)

RefPart NumberDescription
1 107-7812 NUT-SOLENOID Price: $84.62
1 127429 SUB= 140121 Price: Call Us
2 131451 SUB= 155925 Price: Call Us
3 126656X SUB= 140551 Price: Call Us
3 353-512 PLUG Price: $15.26
4 105529X SUB= 139888 Price: Call Us
4 121-3570 MANIFOLD ASM This part replaces 107-7809. Price: $1,835.97
5 110-6344 COIL-12V, DC This part replaces 107-7811. Price: $141.08
5 110854X SUPPORT RH YTH Price: Call Us
6 73680500 SUB= 73690500 Price: Call Us
7 107-7810 VALVE-BRAKING Price: $526.30
7 73680600 SUB= 73690600 Price: Call Us
8 119-2011 VALVE-LOGIC, ADJUSTABLE This part replaces 107-7808. Price: $276.57
8 123784X505 FENDER Price: Call Us
9 110855X SUPPORT LH YTH Price: Call Us
11 17490612 SCREW Price: Call Us
12 19131312 WASHER Price: Call Us
13 74760612 SUB= 74780612 Price: Call Us
14 105511X SUB= 140675 Price: Call Us
15 19171912 WASHER Price: Call Us
16 19111212 WASHER Price: Call Us
17 17190412 SCREW Price: Call Us
18 121246X BRKT SWITCH Price: Call Us
19 124181X SPRING COMPRESSIO Price: Call Us
20 105531X NUT-PUSH YT Price: Call Us
21 137113 BRKT.ASM.FENDER Price: Call Us
22 124238X CAP SPRING Price: Call Us
23 127334X SUB= 151346 Price: Call Us
24 123549X SUB= 158990 Price: Call Us
25 123487X HOSE CLAMP Price: Call Us
26 8543R FUEL LINE T Price: Call Us
27 106082X PAD-SPACER LT Price: Call Us
28 127166X CHASSIS Price: Call Us
29 123785X DRAW BAR Price: Call Us
30 138644 PANEL.DASH.LH Price: Call Us
31 121794X COVER ACCESS Price: Call Us
32 138643 PANEL.DASH.RH Price: Call Us
34 110853X SUPPORT RH YTH Price: Call Us
35 105465X505 SUB= 145244X505 Price: Call Us
36 105464X505 SUB= 145243X505 Price: Call Us
37 72110606 BOLT Price: Call Us
38 133671 FOOTREST PAD Price: Call Us
39 110852X SUPPORT LH YTH Price: Call Us
40 3645J BUSHING OUTLET T Price: Call Us
41 123198X SUB= 146525 Price: Call Us
42 2751R CLIP T Price: Call Us
43 110436X SUB= 9151R Price: Call Us
44 17490512 SCREW Price: Call Us
45 105419X505 GRILL STRAP Price: Call Us
46 73510400 NUT Price: Call Us
47 74760616 BOLT Price: Call Us
48 73731000 NUT Price: Call Us
49 19070818 WASHER Price: Call Us
50 132635X505 SUB= 150301X505 Price: Call Us
51 7206J SPACER LT Price: Call Us
52 74981020 SCREW Price: Call Us
53 73220400 SUB= 50675 Price: Call Us
54 19091216 WASHER PM Price: Call Us
55 122100X GRILL ASSY Price: Call Us
56 73680400 SUB= 73690400 Price: Call Us
57 123481X SUB= 7605J Price: Call Us
58 121248X BUSHING Price: Call Us
59 121249X SPACER SPLIT Price: Call Us
60 123740X SPRING COMPRESSED Price: Call Us
62 132638X505 SUB= 150302X505 Price: Call Us
63 104618X SUB= 155013 Price: Call Us
64 106784X SUB= 155013 Price: Call Us
65 2029J WELDNUT Price: Call Us
66 10071000 LOCKWASHER Price: Call Us
67 106395X LENS LT Price: Call Us
68 124392X417 SUB= 147717 Price: Call Us
69 74191008 SCREW Price: Call Us
71 17211010 SCREW LT Price: Call Us
72 109808X HOOD LATCH T Price: Call Us
73 74640806 SCREW Price: Call Us
74 74760612 SUB= 74780612 Price: Call Us
75 139227 SUB= 139277 Price: Call Us
77 123825X CONSOLE SHIFTER Price: Call Us
78 4171R CLIP T Price: Call Us
80 74641008 SUB= 71031008 Price: Call Us
81 123976X SUB= 73900400 Price: Call Us
83 72050411 SUB= 872050411 Price: Call Us
84 121251X STRIP FORM Price: Call Us
85 19131614 WASHER Price: Call Us
86 19060718 WASHER Price: Call Us
87 17490608 SCREW LT Price: Call Us
88 17490508 SCREW LT Price: Call Us
