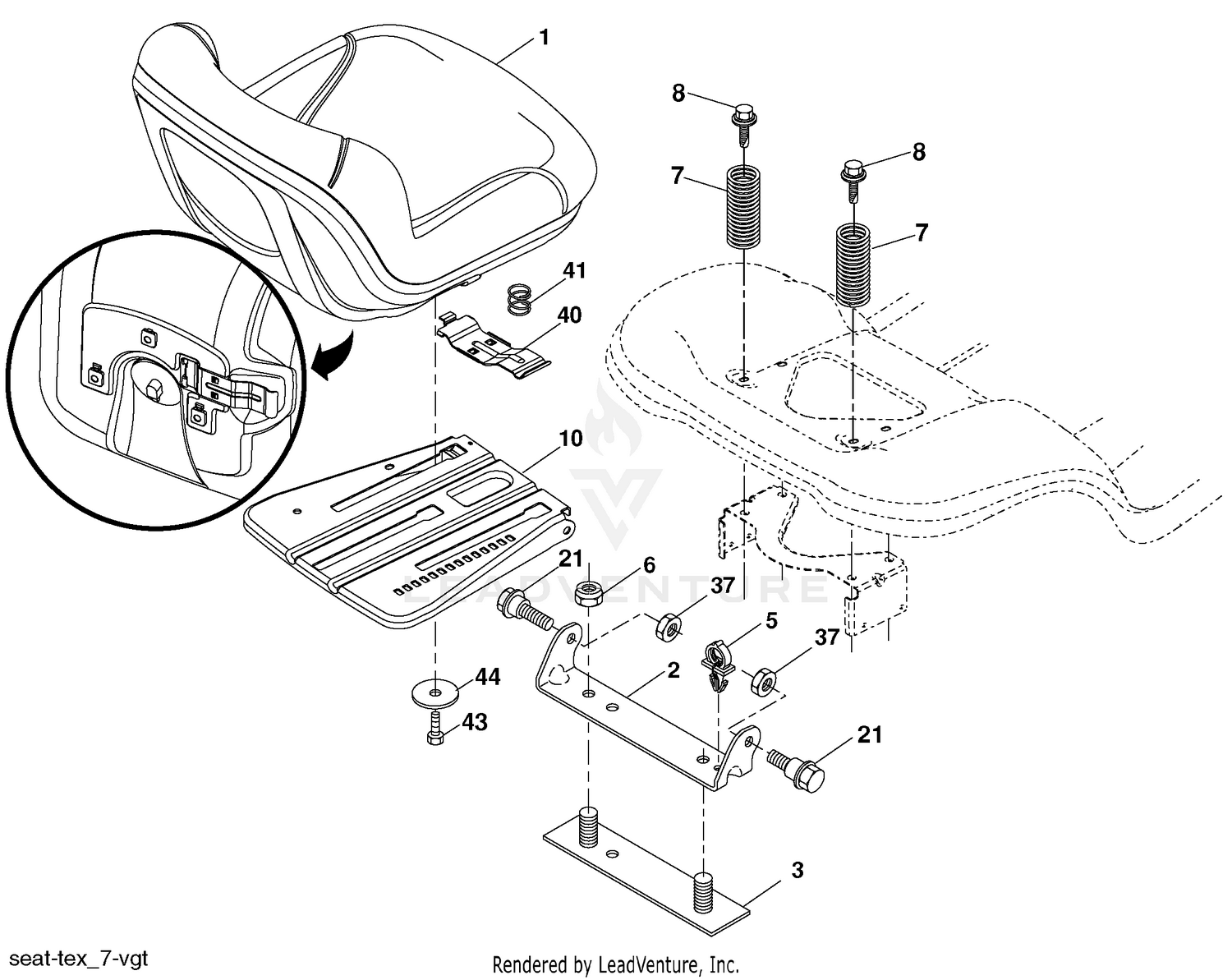

| Ref | Part Number | Description |
|---|
| 1 |
197530 |
Seat Price: Call Us |
| 1 |
99-8346 |
GASKET Price: $1.43 |
| 2 |
180166 |
Bracket Pivot Fender Price: Call Us |
| 2 |
98-9417 |
BOLT-JOINT, EYE Price: $12.10 |
| 3 |
115-4126 |
BOLT-JOINT, EYE This part replaces 98-9418. Price: $12.34 |
| 3 |
140675 |
Strap, Asm Fender Price: Call Us |
| 4 |
98-9419 |
OIL PIPE ASM Price: $64.29 |
| 5 |
108-4422 |
GASKET This part replaces 98-9435. Price: $1.48 |
| 5 |
145006 |
Clip, Push In, Hinged Price: Call Us |
| 6 |
138-1238 |
KIT-PIPE, OIL This part replaces 98-9461. Price: $212.76 |
| 6 |
73800600 |
Nut, Lock W/Ins. 3/8-16 unc Price: Call Us |
| 7 |
124181X |
Spring, Seat Cprsn Price: Call Us |
| 7 |
98-7568 |
BOLT Price: $0.84 |
| 8 |
171877 |
Bolt 5/16-18 uncx 3/4 w/Sems Price: Call Us |
| 8 |
98-9591 |
PIN-BAND Price: $6.96 |
| 9 |
98-9601 |
CLAMP-PIPE Price: $6.61 |
| 10 |
196977 |
Pan, Seat Price: Call Us |
| 10 |
98-9714 |
CLAMP-HOSE Price: $2.66 |
| 11 |
98-9721 |
PIPE-OIL Price: $14.77 |
| 12 |
104-5159 |
HOLDER ASM Price: $120.58 |
| 13 |
98-9724 |
PIPE-COOLER, OIL Price: $31.43 |
| 14 |
98-9578 |
PIPE-RETURN, WATER Price: $11.28 |
| 15 |
98-9579 |
BAND-PIPE Price: $5.22 |
| 16 |
98-9727 |
COLLAR Price: $9.86 |
| 17 |
104-5158 |
OIL COOLER ASM Price: $456.20 |
| 18 |
98-9729 |
O-RING Price: $6.27 |
| 19 |
99-8383 |
OIL PIPE ASM Price: $63.74 |
| 21 |
171852 |
Bolt, Shoulder 5/16-18 Price: Call Us |
| 37 |
73800500 |
Nut, Lock 5/16-18 unc Price: Call Us |
| 40 |
197661 |
Handle Slide Seat Price: Call Us |
| 41 |
198200 |
Spring Latch Seat Price: Call Us |
| 43 |
74760612 |
Bolt Fin Hex 3/8-16 unc x 3/4 Price: Call Us |
