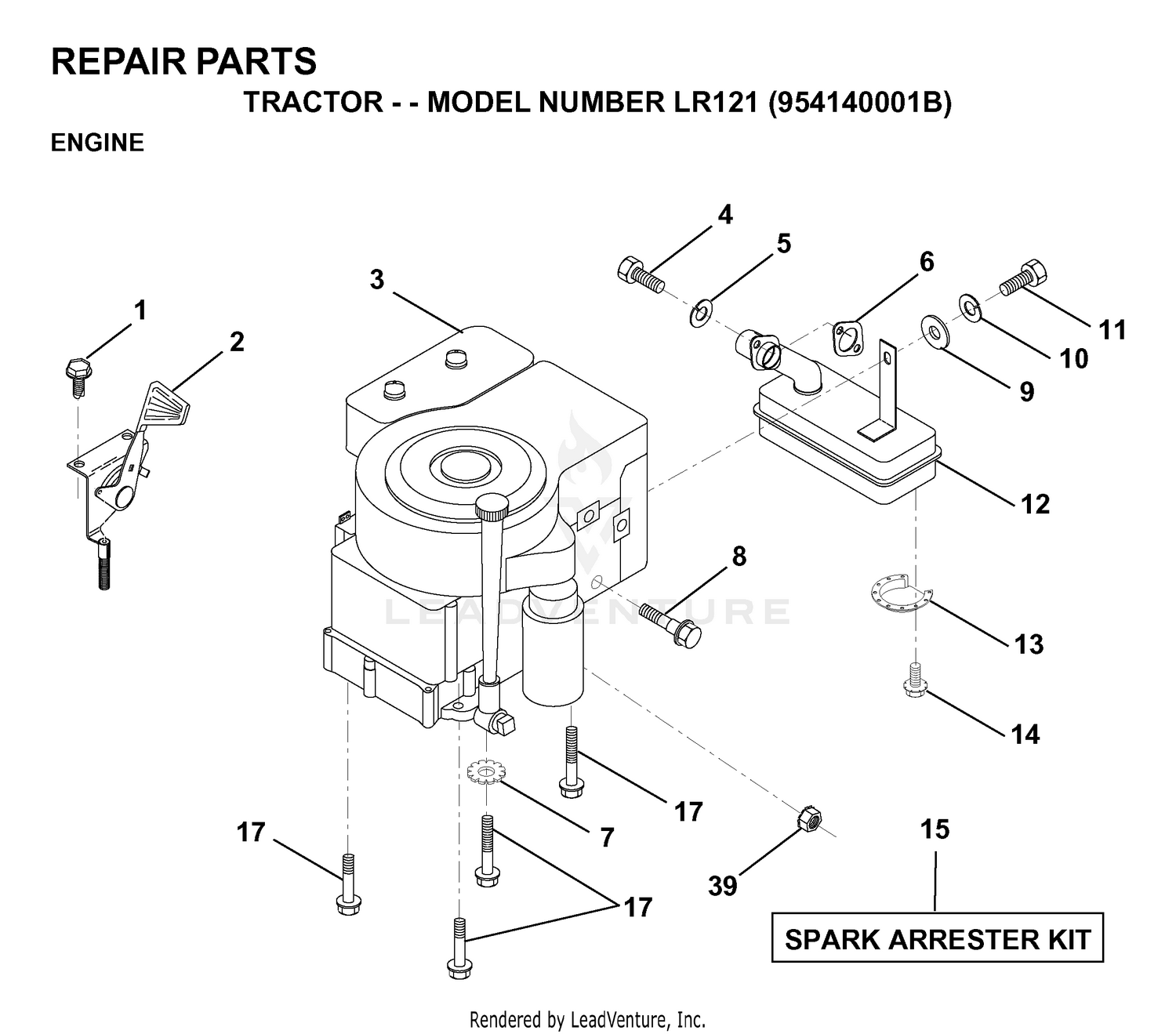

| Ref | Part Number | Description |
|---|
| 1 |
817060408 |
SCREW Price: $4.99 |
| 2 |
532132752 |
CONTROL.TH/CH.RH.BLK.FLG.26 Price: $19.99 |
| 4 |
596134201 |
Screws This part replaces 871070512. Price: $2.99 |
| 5 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 6 |
532272293 |
GASKET.ENG.1.313 ID.TIN PLATED Price: $8.99 |
| 7 |
596238701 |
Washers This part replaces 811050600. Price: $3.99 |
| 8 |
532121094 |
BOLT T Price: $2.99 |
| 10 |
596029801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040400. Price: $2.99 |
| 12 |
532137437 |
MUFFLER.SINGLE.B&S.12HP Price: $199.99 |
| 13 |
532101326 |
DEFL MUFFLER LTV Price: $4.01 |
| 14 |
532161464 |
SCREW.HEX.WS.HD.8-18 X 7/8 This part replaces 817030808. Price: $3.99 |
| 15 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 17 |
874930624 |
Bolt, Hex Head 3/8-16 UNC x 1-1/2 This part replaces 817490624. Price: $6.99 |
| 39 |
532050675 |
NUT.HEX..25-20.UNC This part replaces 532128861. Price: $2.99 |
