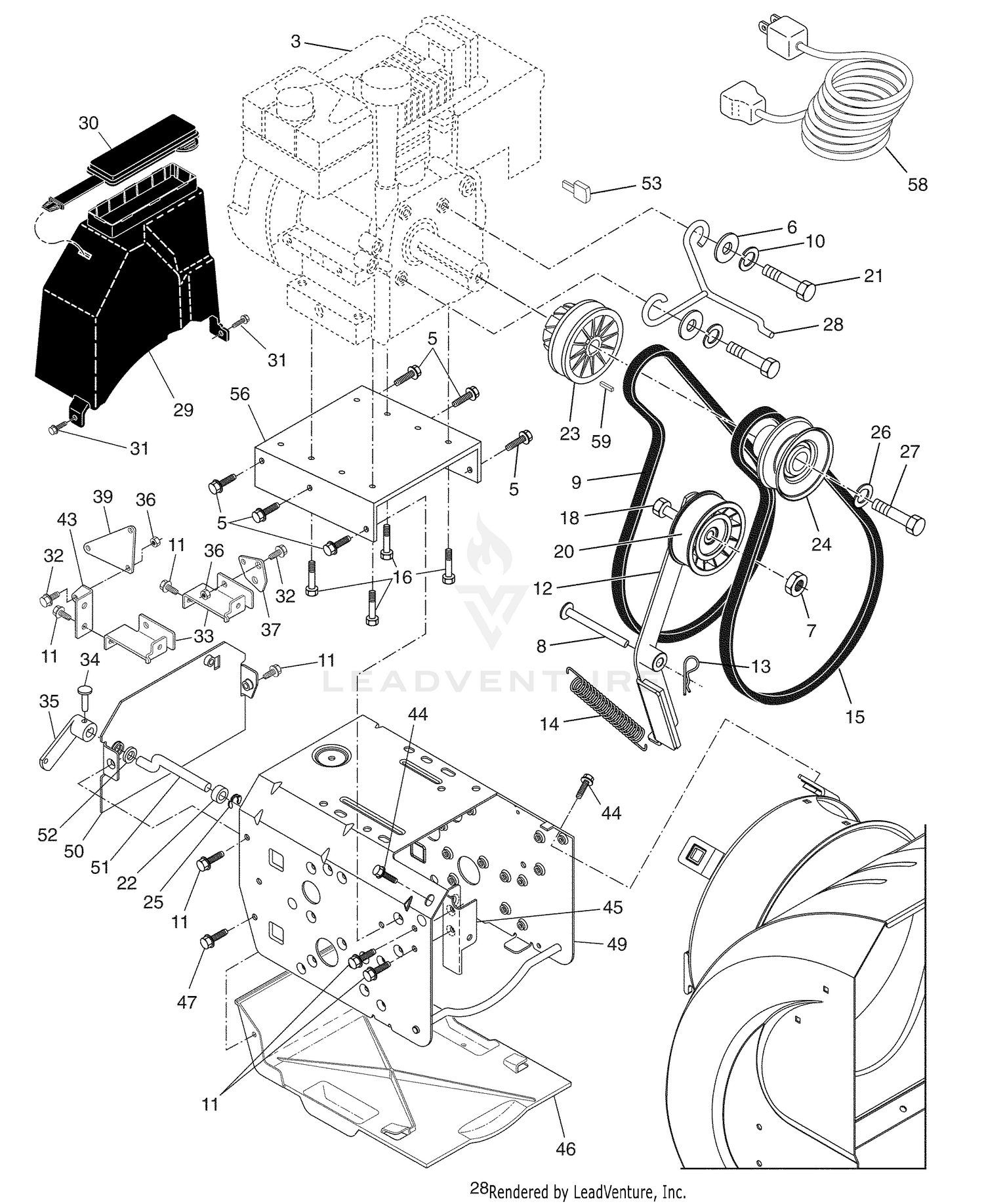

| Ref | Part Number | Description |
|---|
| 6 |
532155415 |
WASHER.20X8.5 Price: $4.99 |
| 7 |
585802801 |
NUT.HEX.FL 5/16-18 TOP LCK BLK This part replaces 532166785. Price: $4.99 |
| 8 |
532175330 |
PIN, IDLER PIVOT Price: $4.99 |
| 9 |
532411218 |
BELT.VARIATOR.TRACT.GT. Price: $69.99 |
| 10 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 11 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 12 |
532422111 |
ARM.IDLER.BRAKE.BLACK This part replaces 532410420. Price: $12.99 |
| 13 |
532085179 |
RETAINER CLIP PM Price: $3.99 |
| 14 |
532178828 |
SPRING, BRAKE Price: $4.99 |
| 15 |
532408019 |
VBELT; IMPELLER_39.09 Price: $42.99 |
| 16 |
532150406 |
BOLT 3/8-16X1-1/8 Price: $4.99 |
| 18 |
596582201 |
Bolts This part replaces 874780524. Price: $2.99 |
| 20 |
594095301 |
Pulleys This part replaces 532180523. Price: $9.99 |
| 21 |
874610516 |
SCREW Price: $3.99 |
| 22 |
532179062 |
ROLLER.ACTUATOR Price: $6.99 |
| 23 |
532411212 |
PULLEY.VARIATOR.ENGINE. Price: $39.99 |
| 24 |
532411192 |
PULLEY.IMPELLER.DRIVE.HS.GT Price: $24.99 |
| 25 |
532192147 |
RING.CRESENT Price: $3.99 |
| 26 |
596238701 |
Washers This part replaces 532850263. Price: $3.99 |
| 27 |
532191760 |
BOLT.HD.HEAD.3/8-24X2.50 (2 2) Price: $4.99 |
| 28 |
532411594 |
GUIDE.BELT.IMP.GT.HS Price: $19.99 |
| 30 |
532178830 |
COVER.STORAGE.SNOW Price: $2.99 |
| 31 |
596437001 |
Screws This part replaces 817490408. Price: $2.99 |
| 32 |
532402881 |
BOLT.SHOULDER.3/X.25 Price: $3.99 |
| 33 |
532411211 |
BRACKET.CABLE.REAR.GT Price: $4.99 |
| 34 |
532198580 |
CLEVIS PIN Price: $4.99 |
| 35 |
532405484 |
ARM.CONTROL.AUGER Price: $7.99 |
| 36 |
532191730 |
NUT.HEX.FLANGE.1/4 Price: $3.99 |
| 37 |
532415435 |
PLATE.CLUTCH.BZP Price: $2.99 |
| 39 |
532411210 |
PLATE.SPEED.PIVOT.GT. Price: $4.99 |
| 43 |
532414462 |
BRACKET.SPEED.PIVOT.PLATE.GT Price: $3.99 |
| 44 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 45 |
532422762 |
KIT.SERVCE.IDLER.PULLEY This part replaces 532184074. Price: $79.99 |
| 46 |
532410877 |
PAN.BOTTOM.PLASTIC Price: $19.99 |
| 47 |
594975601 |
Screws This part replaces 532184471. Price: $1.99 |
| 49 |
532417688 |
FRAME.WELDMENT.GT.B&S.PNT Price: $189.99 |
| 50 |
532417690 |
PLATE.END.GT.PNT Price: $13.99 |
| 51 |
532191997 |
CONTROL.SHAFT.WELDMENT Price: $12.99 |
| 52 |
532057079 |
THRUST WASHER Price: $1.99 |
| 53 |
532189282 |
KEY, SQUARE 1/4 X .875 Price: $4.99 |
| 56 |
532417689 |
PLATE.ENGINE.MOUNT.PNT Price: $16.99 |
| 58 |
532198563 |
CORD.ELECTRIC.10FT.120V.SNOW Price: $19.99 |
