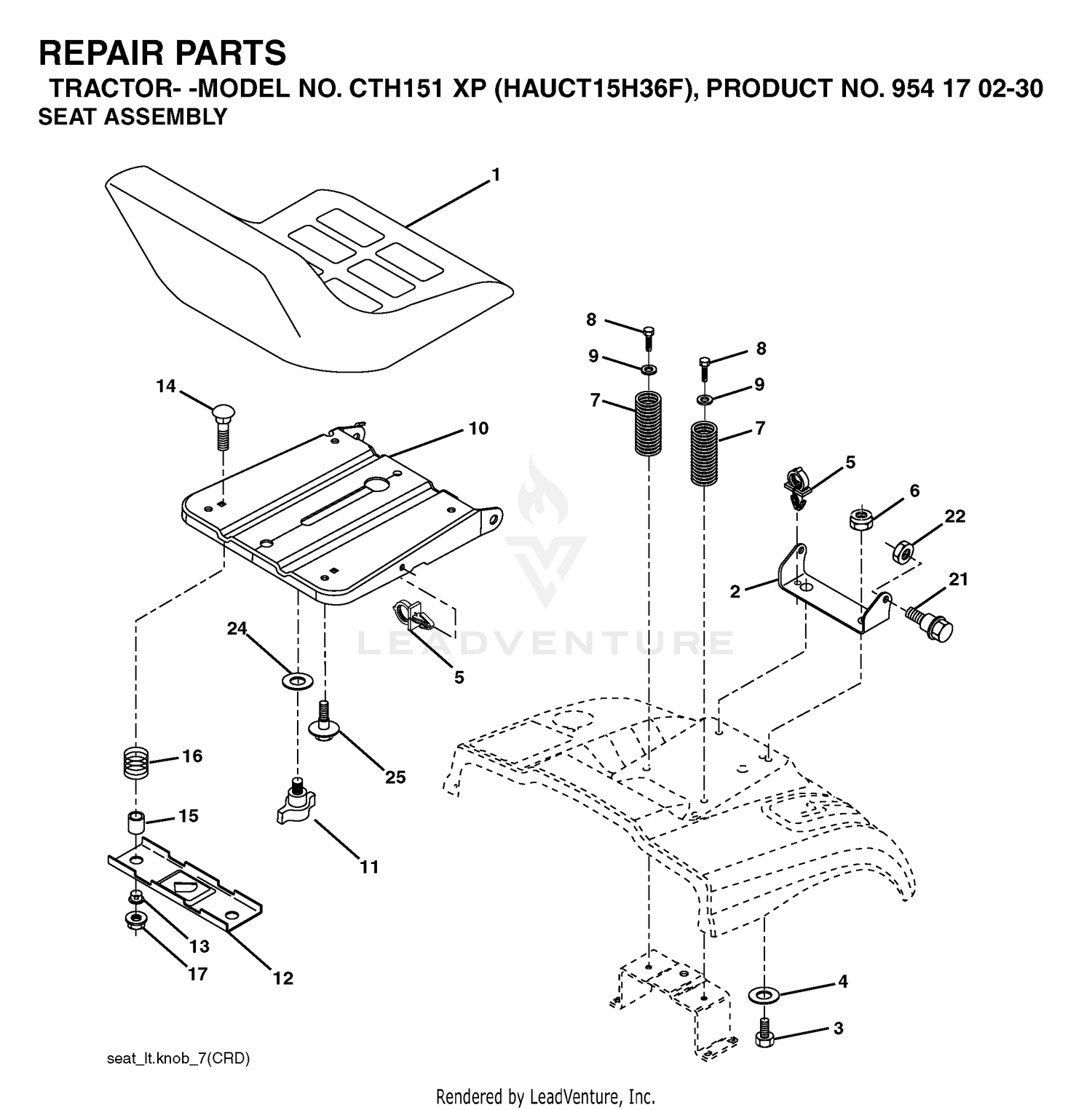

| Ref | Part Number | Description |
|---|
| 1 |
3231-10 |
SCREW-CARR Price: $1.22 |
| 1 |
532401043 |
SEAT.XG150.BLK.KB/SLD.NO-LOGO This part replaces 532188715. Price: $219.99 |
| 2 |
32151-72 |
RING-RETAINING Price: $1.59 |
| 2 |
531152401 |
SERVICE KIT BRACKET SEAT PIVOT This part replaces 532140551. Price: $8.99 |
| 3 |
63-8410 |
WASHER Price: $1.76 |
| 3 |
871110616 |
BOLT, HEX 3/8-16X1 Price: $3.99 |
| 4 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 4 |
819131610 |
WASHER PM Price: $4.99 |
| 5 |
130-6043 |
DECAL-SERVICE Price: $37.66 |
| 5 |
532145006 |
PUSH CLIP Price: $2.99 |
| 6 |
120-4195 |
TANK-FUEL Price: $630.36 |
| 6 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 7 |
2412-98 |
CLAMP-HOSE Price: $1.39 |
| 7 |
587613301 |
SPRING.COMPRESSION.SEAT.BLACK This part replaces 532124181. Price: $5.99 |
| 8 |
104-5228 |
FITTING-ELBOW, 90 DEG Price: $17.50 |
| 9 |
120-8908 |
PIPE-STAND Price: $26.42 |
| 9 |
596140201 |
Washers This part replaces 819131614. Price: $2.99 |
| 10 |
46-6560 |
BUSHING Price: $2.94 |
| 10 |
532195530 |
PAN.ASM.SEAT.1SLOT This part replaces 532182493. Price: $17.99 |
| 11 |
532166369 |
KNOB.SEAT.ADJ.WINGNUT Price: $6.99 |
| 11 |
92-2379 |
CLAMP-HOSE Price: $0.34 |
| 12 |
3253-15 |
WASHER-LOCK Price: $1.49 |
| 12 |
532174648 |
BRKT.MNTNG.SWITCH.SEAT.BLACK This part replaces 532121246. Price: $8.99 |
| 13 |
32122-24 |
SCREW-PTH Price: $0.27 |
| 13 |
532121248 |
BUSHING Price: $4.99 |
| 14 |
121-1688 |
GAUGE-FUEL Price: $197.80 |
| 14 |
872050412 |
BOLT.ROUND.HEAD.SQUARE.NECK Price: $4.99 |
| 15 |
121-1707 |
GASKET-FUEL, VITON Price: $22.66 |
| 15 |
532121249 |
SPACER SPLIT Price: $4.99 |
| 16 |
125-9171 |
CAP-FUEL Price: $46.70 |
| 16 |
532123740 |
SPRING COMPRESSED Price: $3.99 |
| 17 |
121-1514-03 |
BRACKET-LATCH, RH Price: $31.14 |
| 17 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 532123976. Price: $3.99 |
| 18 |
120-4190-0P |
TANK SUPPORT ASM [PRIMED] This part replaces 120-4190-03. Price: $263.49 |
| 19 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 20 |
120-4193-0P |
BRACKET-FUEL TANK This part replaces 120-4193-03. Price: $16.84 |
| 21 |
3230-1 |
BOLT-CARR Price: $1.49 |
| 21 |
587907801 |
BOLT.5/16-18X5/8.SHOULDER This part replaces 532171852. Price: $2.99 |
| 22 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 22 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 23 |
103-4080 |
LATCH-RUBBER Price: $29.99 |
| 24 |
819171912 |
WASHER Price: $3.99 |
| 24 |
99-5414 |
STRAP-CLEANER, AIR Price: $48.46 |
| 25 |
104-3563 |
INDICATOR Price: $58.60 |
| 25 |
532127018 |
BOLT,SHOULD Price: $4.99 |
| 26 |
99-5410 |
AIR CLEANER ASM Price: $381.32 |
| 27 |
322-6 |
SCREW-HH Price: $0.45 |
| 28 |
32144-1 |
SCREW-TAPTITE Price: $3.19 |
| 29 |
121-1513-03 |
BRACKET-LATCH, LH Price: $31.14 |
