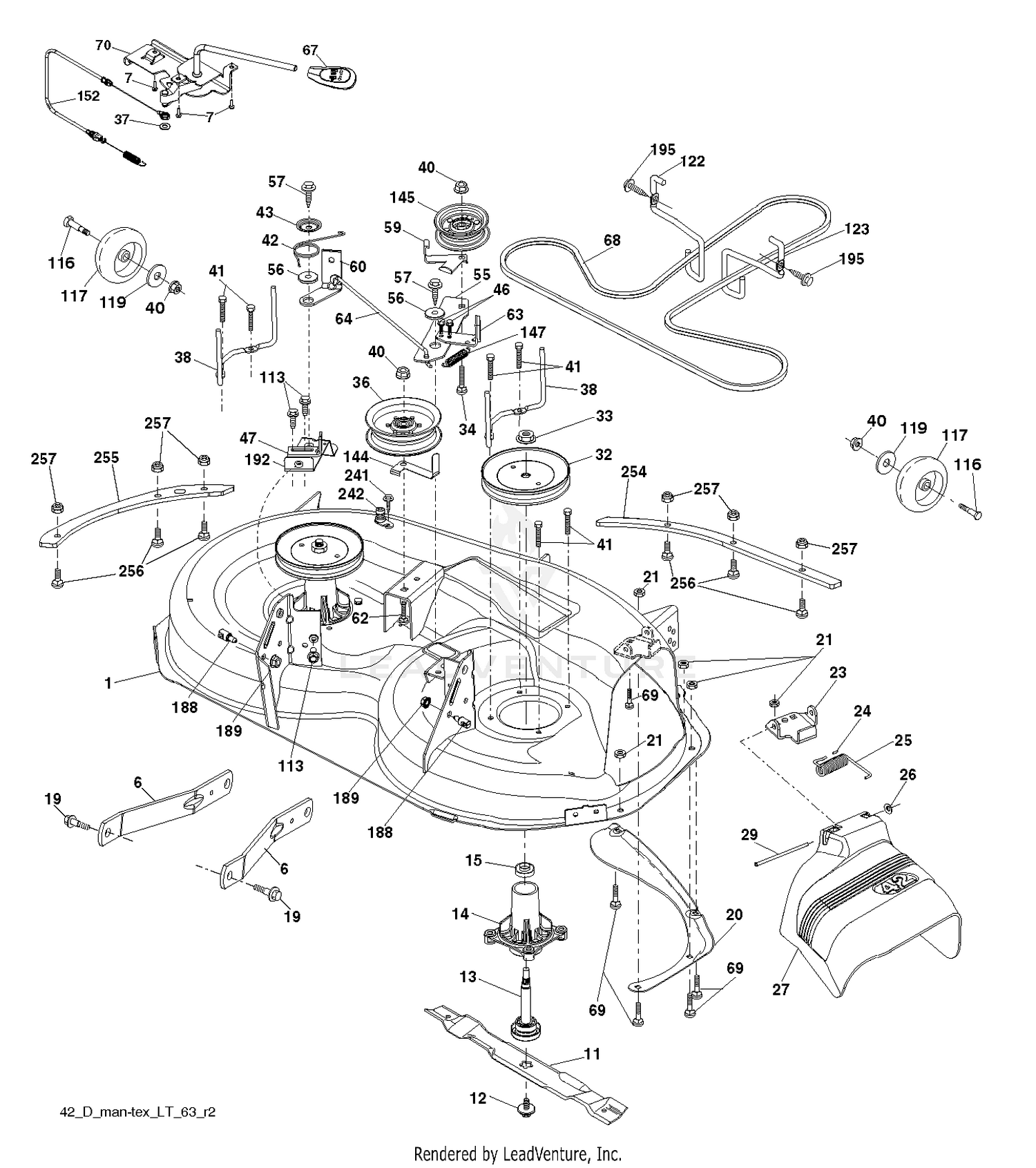

| Ref | Part Number | Description |
|---|
| 1 |
59-7280 |
PAD-PEDAL, TRACTION Price: $12.02 |
| 1 |
598602801 |
Decks This part replaces 532441275. Price: $349.99 |
| 2 |
58-6510 |
PAD-FOOTREST, RH Price: $28.14 |
| 3 |
62-6440 |
PAD-FOOT Price: $12.02 |
| 4 |
58-7390-03 |
FOOTREST This part replaces 58-7390. Price: $226.43 |
| 5 |
58-6630 |
PAD-FLOOR, CENTER Price: $48.66 |
| 6 |
529846401 |
SERVICE.KIT ARM.SUSPENSION.MOW This part replaces 532195186. Price: $14.99 |
| 6 |
59-7960 |
DISCONTINUED Price: Call Us |
| 7 |
33113-016 |
SCREW-HH This part replaces 48-7620. Price: $0.34 |
| 7 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 8 |
58-6620 |
PAD-FOOTREST, LH Price: $28.14 |
| 10 |
322-4 |
SCREW-HH Price: $0.35 |
| 11 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 12 |
532193003 |
BOLT.WASHER.ASM.7/16-2 This part replaces 584309301. Price: $6.99 |
| 13 |
58-7270 |
BAR *R Price: $37.22 |
| 13 |
587819701 |
KIT.MANDREL.NONGREASE.TALL This part replaces 587256501. Price: $49.99 |
| 14 |
587819701 |
KIT.MANDREL.NONGREASE.TALL This part replaces 532187281. Price: $49.99 |
| 19 |
532196539 |
BOLT.SHOULDER Price: $5.99 |
| 20 |
531167001 |
SERVICE KIT BAFFLE.VORTEX BAFF This part replaces 532159770. Price: $11.99 |
| 21 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 23 |
532192557 |
BRKT.DEFLECTOR.38"2005+ Price: $7.99 |
| 24 |
532105304 |
CAP-SLEEVE LT Price: $3.99 |
| 25 |
532197026 |
SPRING.TORSION.DEFLECT Price: $8.99 |
| 26 |
532110452 |
NUT PUSH M Price: $2.99 |
| 27 |
532403004 |
SHIELD.DEFLECTOR.MOWER.42"BLAC Price: $29.99 |
| 29 |
595297001 |
Rods This part replaces 532131491. Price: $4.99 |
| 32 |
532195945 |
PULLEY.MANDREL.5.438.P This part replaces 532197473. Price: $12.99 |
| 33 |
596134801 |
Nuts This part replaces 532400234. Price: $1.00 |
| 34 |
596136101 |
GSPW Bolts This part replaces 872110612. Price: $2.99 |
| 36 |
532196106 |
PULLEY.IDLER.2006 This part replaces 532197379. Price: $34.99 |
| 37 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 38 |
589676103 |
KEEPER 42 MANDREL BELT FOR 6.2 This part replaces 532432520. Price: $6.99 |
| 40 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 41 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 Price: $3.99 |
| 42 |
532198410 |
SPRING.TORSION.BRAKE Price: $4.99 |
| 43 |
532197256 |
SRPING.TORSION.RETAINE Price: $4.99 |
| 46 |
532137729 |
SCREW.1/4-20X5/8 Price: $3.99 |
| 47 |
532197250 |
BRKT.CLUTCH.CABLE Price: $4.99 |
| 55 |
531171201 |
SERVICE KIT IDLER.ARM.42" This part replaces 532437110. Price: $5.99 |
| 56 |
532199092 |
SPACER.RETAINER Price: $5.99 |
| 57 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 62 |
596136301 |
Bolts This part replaces 872110616. Price: $2.99 |
| 63 |
532199478 |
ARM.BRAKE.ZINC This part replaces 532199477. Price: $14.99 |
| 64 |
532199918 |
LINKAGE.BRAKE.ASM.ZINC Price: $11.99 |
| 67 |
532403012 |
HANDLE.CLUTCH.CABLE.LT Price: $6.99 |
| 68 |
598559101 |
Belts This part replaces 532429636. Price: $44.99 |
| 69 |
596136401 |
Bolts This part replaces 872140505. Price: $2.99 |
| 70 |
532199972 |
CLUTCH.ASM.MANUAL.YT.PREDATORQ Price: $49.99 |
| 113 |
817000510 |
BOLT.5/16HEX.WHS.HD Price: $4.99 |
| 116 |
596434404 |
Bolts This part replaces 532193406. Price: $4.99 |
| 117 |
589527301 |
WHEEL.GAUGE.RALLY This part replaces 532174873. Price: $8.99 |
| 119 |
596134901 |
GSPH This part replaces 819132012. Price: $2.99 |
| 144 |
531169801 |
SERVICE KIT BELT KEEPER This part replaces 532199204. Price: $4.99 |
| 145 |
532177968 |
PULLEY.IDLER.FLAT This part replaces 532193197. Price: $27.99 |
| 147 |
532401971 |
RETURN SPRING Price: $4.99 |
| 152 |
532435110 |
CABLE.CLUTCH.CABLE.W/SPRING Price: $32.99 |
| 188 |
593824001 |
STUD.W/"D"ANTI-ROTATION This part replaces 532195161. Price: $3.99 |
| 189 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 192 |
531152801 |
SERVICE KIT BRACKET BRKT.BRAKE This part replaces 532197260. Price: $5.99 |
| 195 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 241 |
532152927 |
SCREW.TT.#10-32X.5.3/8.FLANGE Price: $3.99 |
| 242 |
532415598 |
PORT.WASHOUT Price: $6.99 |
| 254 |
585316805 |
PLATES.RENFRC.42DECK.PT431FRNT Price: $11.99 |
| 255 |
585317005 |
PLATES.RENFRCE.42DECK.X431SIDE Price: $11.99 |
| 256 |
592807801 |
BOLT CUP HEAD SQUARE NECK 1/4- This part replaces 539109800. Price: $2.99 |
| 257 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873900400. Price: $3.99 |
