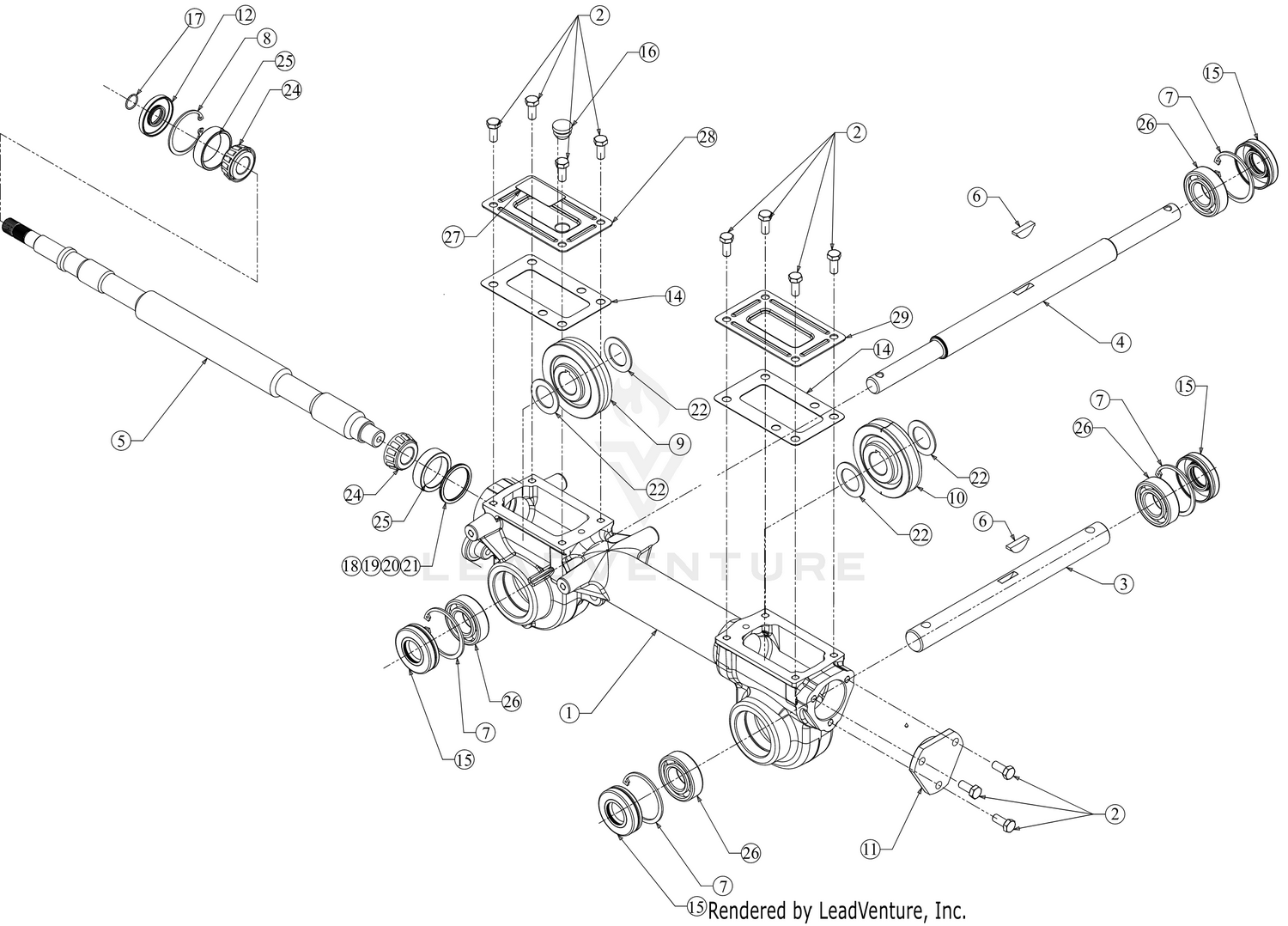

| Ref | Part Number | Description |
|---|
| 1 |
919-04202B |
TRANSMISSOIN HOUSING Price: $234.53 |
| 2 |
710-3008 |
SCREW 5/16-18 x .75 GR5 Price: $3.76 |
| 3 |
911-04844 |
TILLER SHAFT Price: $74.00 |
| 4 |
911-04854 |
WHEEL SHAFT Price: $62.65 |
| 5 |
711-05035 |
DRIVE SHAFT Price: $86.08 |
| 6 |
714-04059 |
KEY-HI PRO .25 x 1 Price: $5.94 |
| 7 |
716-0204 |
RETAINING RING Price: $5.94 |
| 8 |
716-04102 |
RETAINING RING Price: $3.85 |
| 9 |
917-04380 |
WORM GEAR (RH) 61T Price: $146.63 |
| 10 |
917-04381 |
WORM GEAR (LH) 30T Price: $128.03 |
| 11 |
918-04435 |
BEARING COVER Price: $20.18 |
| 12 |
921-04030 |
OIL SEAL .750 SHF x 1.783 Price: $11.33 |
| 14 |
921-04229 |
GEAR HOUSING GASKET Price: $6.04 |
| 15 |
721-04232 |
OIL SEAL 1.00 SHF x 2.00 BORE Price: $14.26 |
| 16 |
721-04271 |
RUBBER OIL PLUG Price: $4.73 |
| 17 |
732-0614 |
WIRE RING Price: $5.37 |
| 18 |
736-04305 |
FLAT WASHER 1.500X1.750X.062 Price: $3.52 |
| 19 |
736-04306 |
FLAT WASHER 1.500X1.750X.005 Price: $3.85 |
| 20 |
736-04307 |
FLAT WASHER 1.500X1.750X.030 Price: $3.85 |
| 21 |
736-04308 |
FLAT WASHER 1.500X1.750X0.010 Price: $3.85 |
| 22 |
736-0745 |
WASHER 1.010X1.560X.060 Price: $11.28 |
| 24 |
941-04298 |
BEARING CONE Price: $14.84 |
| 25 |
941-04299 |
BEARING CUP Price: $6.01 |
| 26 |
741-3114 |
BALL BEARING Price: $24.22 |
| 28 |
786-04366 |
TRANSMISSION COVER Price: $18.44 |
| 29 |
786-04392-0637 |
TRANSMISSION COVER (POWDER BLACK) This part replaces 786-04392. Price: $17.06 |
