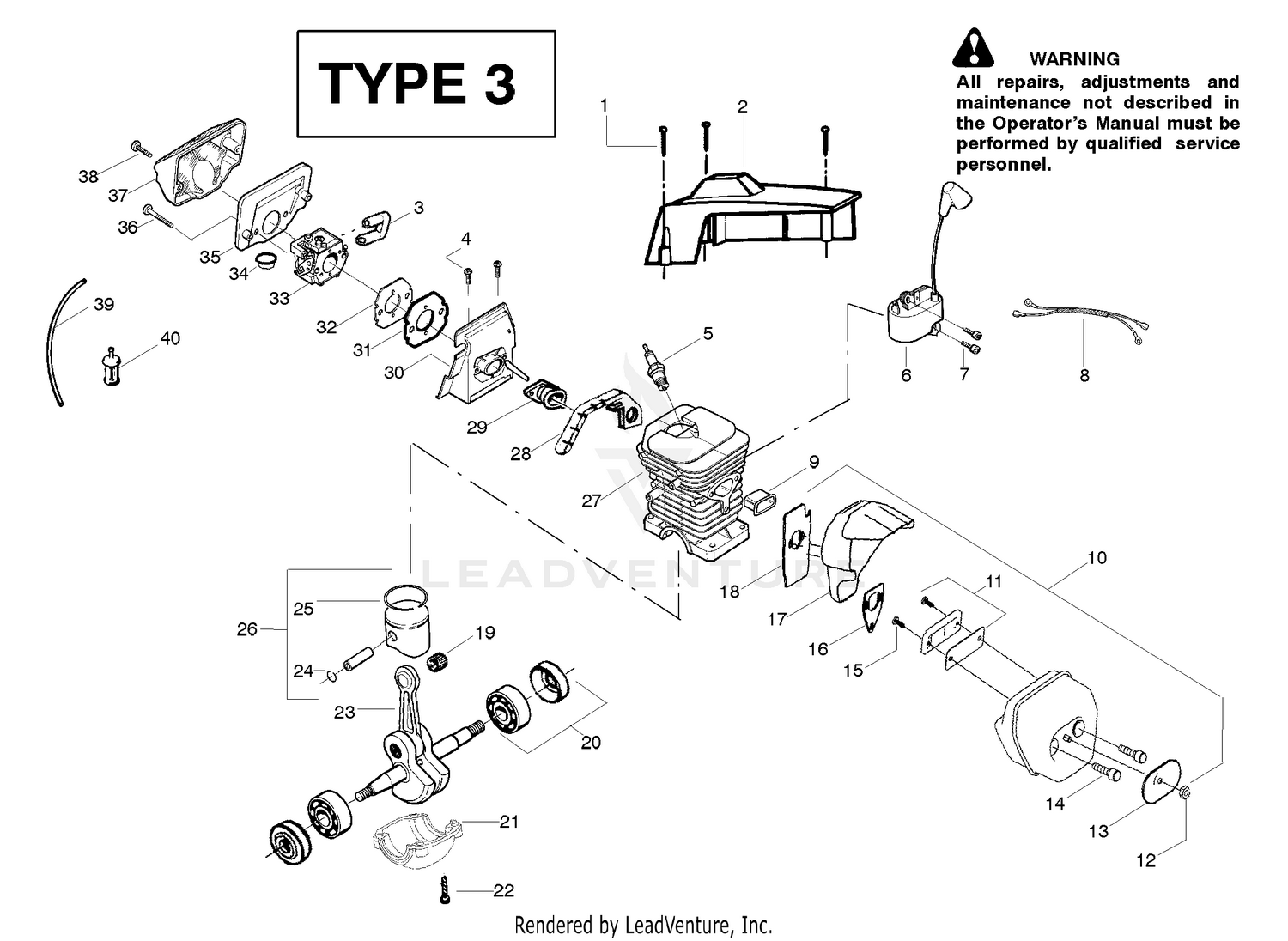

Engine Assembly Type 3
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 121-8946 | LEFT DOOR ASM Price: $3,310.22 |
| 1 | 530016154 | Screw Price: $0.99 |
| 2 | 530069700 | Kit-Cylinder Shield Price: $14.99 |
| 3 | 530037464 | Grommet -Carb. Price: $1.99 |
| 4 | 530015814 | Screw Price: $1.99 |
| 6 | 545199901 | IGNITION MODULE This part replaces 530039143. Price: $22.99 |
| 7 | 530015895 | Screw Price: $1.99 |
| 8 | 530037467 | Assy-Switch Wire Price: $19.99 |
| 9 | 530037652 | Insulator-Heat Price: $1.99 |
| 12 | 574266401 | NUT 10MM BRASS This part replaces 530016359. Price: $1.99 |
| 13 | 530056061 | Cover-Bolt Price: $2.99 |
| 14 | 530016338 | Bolt-Muffler Price: $1.99 |
| 15 | 530016351 | Screw-Spark Screen Price: $1.99 |
| 16 | 530055128 | Gasket-Muffler Price: $1.99 |
| 17 | 530055765 | Assy-Muffler Backplate Price: $3.99 |
| 18 | 530055402 | Backplate - Alum. Price: $4.99 |
| 19 | 530032117 | Bearing-Piston Pin Price: $4.99 |
| 20 | 530056363 | Assy-Bearing & Seal Price: $11.99 |
| 21 | 530049794 | Cap-Crankcase Price: $3.99 |
| 22 | 530015897 | Screw Price: $1.99 |
| 23 | 503920801 | ASSY-CRANKSHAFT & ROD This part replaces 530029794. Price: $129.99 |
| 24 | 530015697 | Retainer-Piston Pin Price: $1.99 |
| 25 | 530037380 | Ring-Piston Price: $2.99 |
| 28 | 530019251 | Seal-Super Clean Price: $1.99 |
| 29 | 530035581 | Intake Boot Price: $17.99 |
| 30 | 530071654 | Kit-Carb.-Adapter Price: $17.99 |
| 31 | 530057295 | Intake Plate-Carb Price: $2.99 |
| 32 | 530019172 | Gasket-Carb. Price: $1.99 |
| 34 | 530036792 | Isolator Price: $4.99 |
| 36 | 530015970 | Screw Price: $1.99 |
| 38 | 530015899 | Screw Price: $1.99 |
| 40 | 530095646 | Assy-Fuel Pick-up Price: $2.99 |
