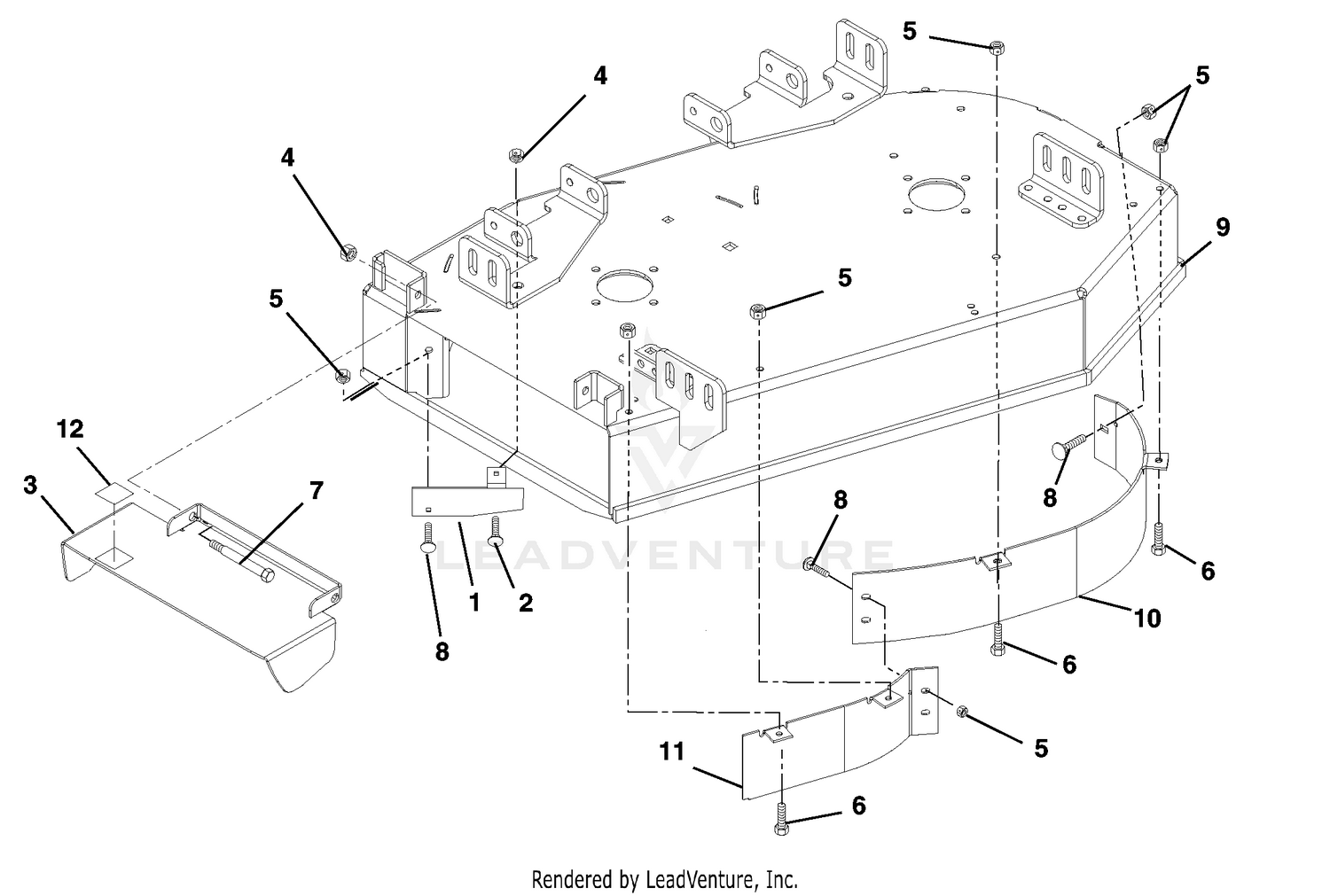

| Ref | Part Number | Description |
|---|
| 1 |
00174251 |
BAFFLE, DEFLECTOR Price: $25.45 |
| 2 |
06200313 |
BLT, RHSN .38-16X1.00 G5 ZCC This part replaces 06223600. Price: $2.45 |
| 3 |
09299753 |
WMT, 34" DISCHARGE CHUTE Price: $107.95 |
| 4 |
06500822 |
NUT-LK-TOP-FLG .38-16 ZC120 This part replaces 06542000. Price: $0.95 |
| 5 |
06500904 |
NUT-LK-TOP-FLG .312-18 GF ZCC This part replaces 06543100. Price: $0.95 |
| 6 |
05901704 |
BLT-HEX .31-18X.75 G5 ZCC This part replaces 05947000. Price: $1.45 |
| 7 |
07002030 |
BLT-SHLDR .50X.38 ZCC This part replaces 07056500. Price: $5.45 |
| 8 |
06200232 |
BLT,RHSN .31-18X.75 G5 ZCC This part replaces 06215700. Price: $2.45 |
| 9 |
09296953 |
WMT, 34" DECK Price: $888.95 |
| 10 |
09297051 |
BAFFLE, 34" FRONT LH Price: $74.45 |
| 11 |
09297151 |
BAFFLE, 34" FRONT RH Price: $56.45 |
