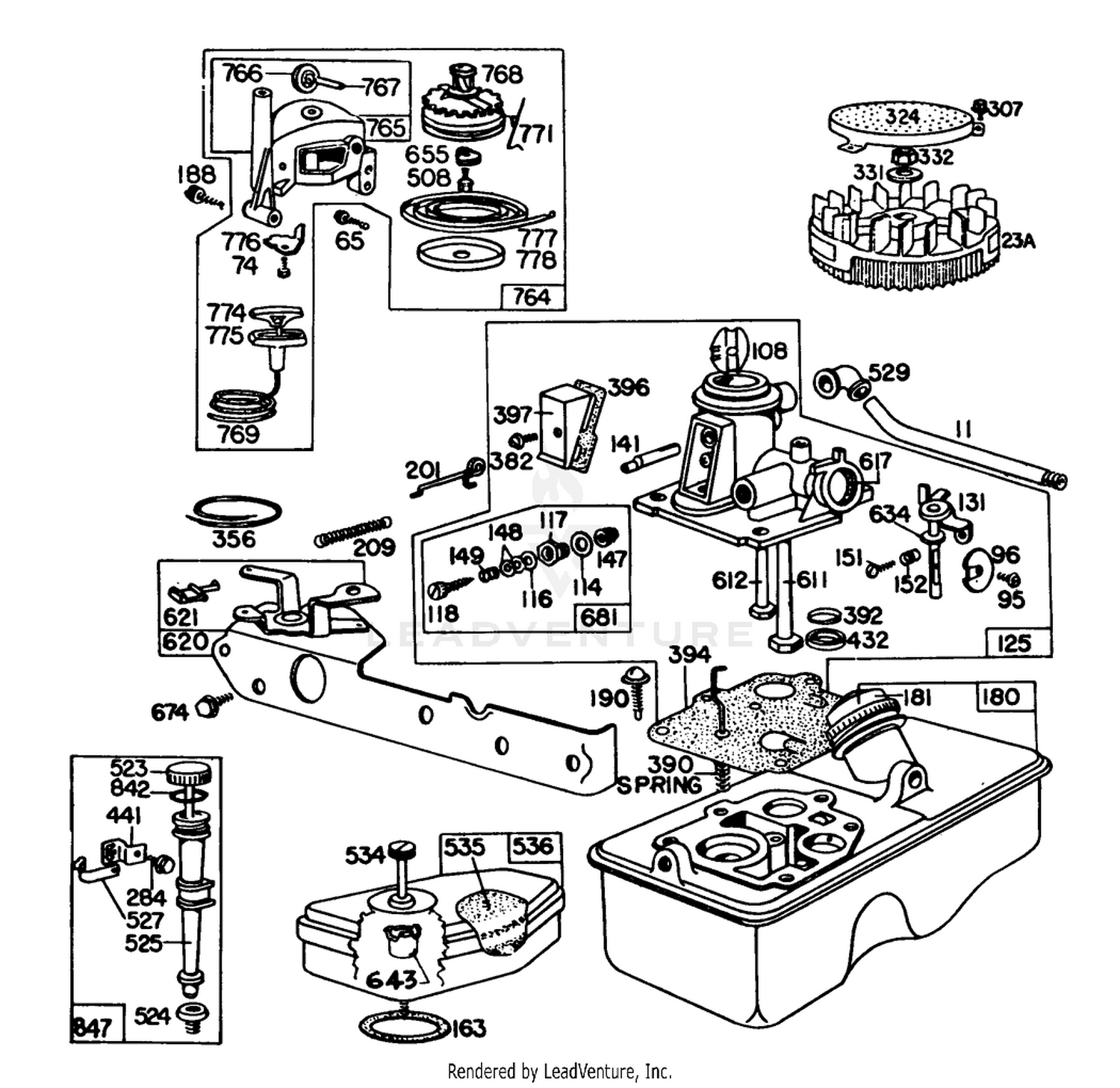

Carburetor Assembly Briggs Stratton Model No. 92908-2055-01

Carburetor Assembly Briggs  Stratton Model No. 92908-2055-01

Parts (72)

RefPart NumberDescription
11 230802 Tube Breather Price: Call Us
23A 299982 Key-Flywheel Price: Call Us
65 93587 Screw-Starter Mounting Price: Call Us
74 93490 Screw Price: Call Us
95 93499 Screw Price: Call Us
96 211237 Valve Price: Call Us
108 298819 Valve-Choke Price: Call Us
114 66594 Gasket Valve Nut Price: Call Us
116 65978 Packing-Needle Price: Call Us
117 230590 Nut-Needle Valve Price: Call Us
118 23433 Valve-Needle Price: Call Us
125 390065 Carburetor Assembly Price: Call Us
131 299977 Shaft Lever-Throttle Price: Call Us
141 68908 Shaft-Choke Price: Call Us
147 230591 Seat-Needle Valve Price: Call Us
148 22235 Washer-Needle Valve Price: Call Us
149 26336 Spring Needle Valve Price: Call Us
151 93524 Screw-Rd. Hd Price: Call Us
152 260746 Spring-Throttle Adj Price: Call Us
163 270816 Gasket-Air Cleaner Mtg. Price: Call Us
180 391694 Tank Assembly-Fuel Price: Call Us
181 298425 Cap-Fuel Tank Price: Call Us
188 93585 Screw-Sem Price: Call Us
190 93440 Screw-Fuel Tank Price: Call Us
201 261027 Link-Governor Price: Call Us
209 261034 Spring-Governor Price: Call Us
284 93572 Screw Price: Call Us
307 93490 Screw Price: Call Us
324 222063 Screw-Rotating Price: Call Us
331 220865 Washer Price: Call Us
332 92284 Nut Price: Call Us
356 298479 Wire-Ground Price: Call Us
382 93545 Screw-Choke Link Cover Price: Call Us
390 261015 Spring Price: Call Us
392 260455 Spring-Fuel Pump Price: Call Us
394 391681 Diaphragm-Carburetor Price: Call Us
396 270571 Gasket-Choke Link Cover Price: Call Us
397 211678 Cover-Choke Link Price: Call Us
432 221377 Cap-Spring Price: Call Us
441 222530 Bracket-Oil Fill Tube Price: Call Us
508 93158 Screw Price: Call Us
523 391838 Cap with Dipstick-Oil Filler Price: Call Us
524 68838 Seal-Fill Tube Price: Call Us
525 280131 Tube-Oil Filler Price: Call Us
527 222548 Clamp-Oil Fill Tube Price: Call Us
529 67838 Grommet Price: Call Us
534 93374 Srew-Air Cleaner Price: Call Us
535 270579 Element Air Cleaner Price: Call Us
536 390055 Cleaner Assembly-Air Price: Call Us
611 297219 Pipe Fuel (long) Price: Call Us
612 296811 Pipe-Fuel Price: Call Us
617 270344 Seal-O Ring Price: Call Us
620 299974 Plate Carburetor Control Price: Call Us
621 297472 Switch-Stop Price: Call Us
634 270167 Washer (Felt) Price: Call Us
643 221321 Cup-Air Cleaner Price: Call Us
655 222057 Anchor-Spring Price: Call Us
674 93447 Spacer-Fuel Tank Price: Call Us
681 299060 Kit-Needle Valve Price: Call Us
764 391486 Starter Ass-y-Vertical Pull Price: Call Us
765 299947 Housing, Vert. Pull Starter Price: Call Us
766 280022 Duct Body Price: Call Us
767 231048 Pin-Small Rope Pulley Price: Call Us
768 299948 Pulley and Gear Assy. Price: Call Us
769 66734 Rope-Starter (48.6") Price: Call Us
771 299961 Clip-Starter Price: Call Us
774 280121 Insert-Starter Handle Price: Call Us
775 280036 Grip-Starter Rope Price: Call Us
776 222049 Guide Rope Price: Call Us
777 390066 Spring-Starter Price: Call Us
778 280021 Cover-Starter Price: Call Us
842 270920 O-Ring Price: Call Us
