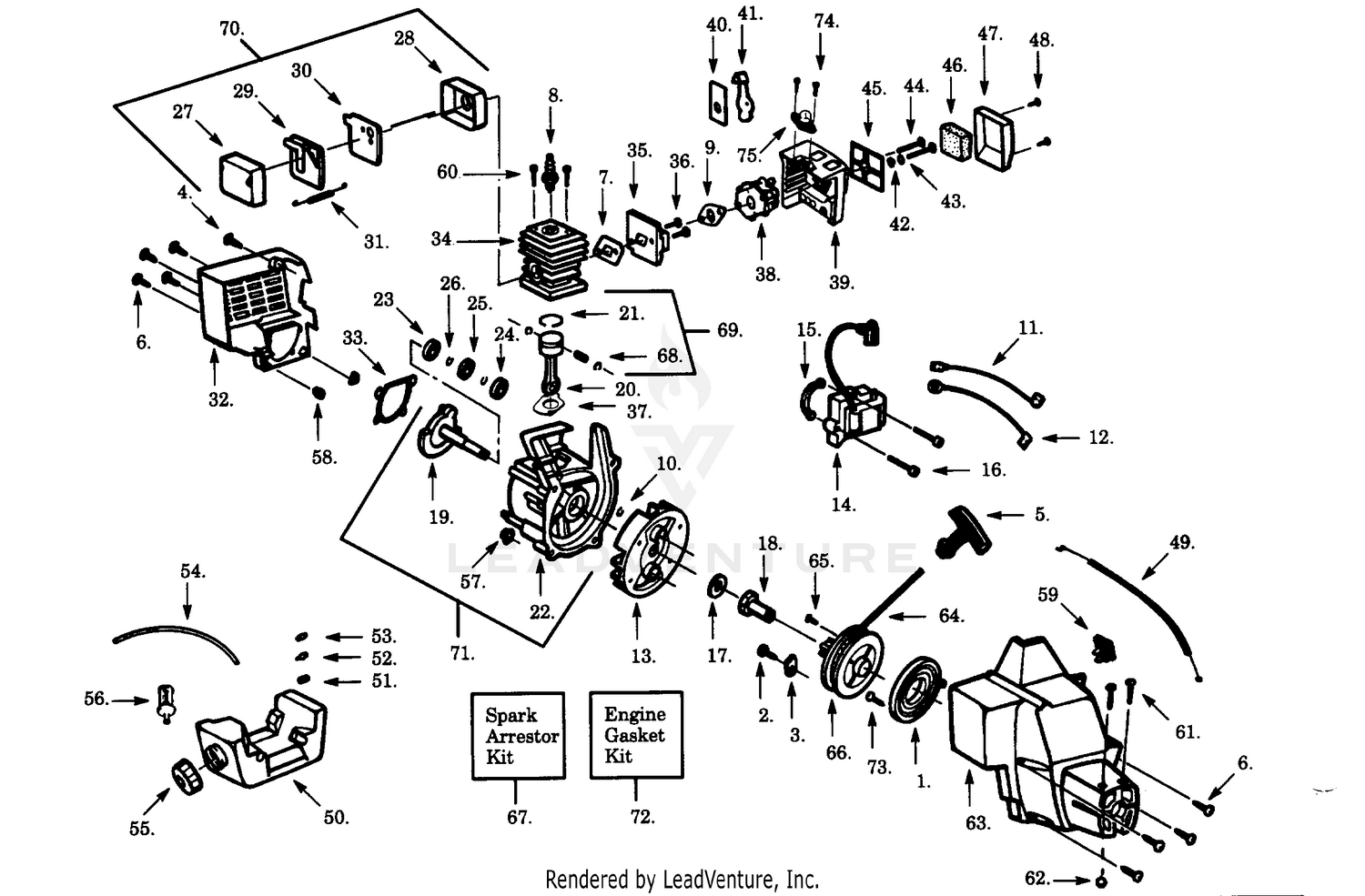

| Ref | Part Number | Description |
|---|
| 1 |
3290-255 |
PIN-COTTER, HAIR Price: $7.89 |
| 1 |
545008010 |
STARTER SPRING This part replaces 530029395. Price: $3.99 |
| 2 |
5-3433 |
DISCONTINUED Price: Call Us |
| 2 |
530015496 |
Screw Price: $1.99 |
| 3 |
5-1686 |
ADJ ROD Price: $41.75 |
| 3 |
530027523 |
Retainer Price: $2.99 |
| 4 |
5-4553 |
DISCONTINUED Price: Call Us |
| 4 |
530015934 |
Screw Price: $1.99 |
| 5 |
283-2 |
PIN-CLEVIS Price: $12.99 |
| 5 |
530027569 |
Starter Handle Price: $1.99 |
| 6 |
282-1 |
DISCONTINUED Price: Call Us |
| 6 |
530016386 |
SCREW This part replaces 530015810. Price: $5.99 |
| 7 |
323-6 |
SCREW-HH Price: $0.66 |
| 7 |
530019233 |
Gasket - Cylin./Carb. This part replaces 530019185. Price: $1.99 |
| 8 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 8 |
530030073 |
Spark Plug Price: Call Us |
| 9 |
3256-4 |
WASHER-FLAT Price: $0.28 |
| 10 |
5-2896 |
PIVOT *R Price: $2.44 |
| 10 |
530015941 |
Retainer Price: $1.99 |
| 11 |
3272-12 |
PIN-COTTER Price: $0.25 |
| 11 |
530014663 |
Lead Wire Price: $5.99 |
| 12 |
5-2845 |
ROLLER HANGER WA *RO Price: $188.44 |
| 12 |
581425901 |
SWITCH, GROUND WIRE This part replaces 530014662. Price: $1.99 |
| 13 |
237-69 |
O-RING Price: $5.72 |
| 13 |
545221701 |
FLYWHEEL ASSY This part replaces 530039149. Price: $8.99 |
| 14 |
3290-212 |
WASHER-SPRING Price: $1.56 |
| 14 |
530039163 |
Ignition Module Price: $34.99 |
| 15 |
3245-35 |
SCREW-SET, HSH Price: $0.41 |
| 15 |
530036145 |
Spacer Price: $1.99 |
| 16 |
11-3050 |
SLEEVE Price: $53.95 |
| 16 |
530015954 |
Screw Price: $1.99 |
| 17 |
253-118 |
SEAL-OIL Price: $18.29 |
| 17 |
530015828 |
Washer Price: $1.99 |
| 18 |
5-1384 |
HOUSING-BEARING Price: $84.20 |
| 18 |
530027953 |
Drive Coupling Price: $1.99 |
| 19 |
285-17 |
PLUG-PIPE This part replaces 285-10. Price: $2.59 |
| 19 |
530052450 |
TANK ASSEMBLY This part replaces 530029840. Price: $59.99 |
| 20 |
237-68 |
O-RING Price: $3.22 |
| 20 |
530069615 |
Assy-Connecting Rod This part replaces 530014397. Price: $14.99 |
| 21 |
251-205 |
BEARING-BALL Price: $40.83 |
| 21 |
530036404 |
Piston Ring Price: $4.99 |
| 22 |
32151-13 |
RING-RETAINING Price: $4.39 |
| 22 |
530014861 |
Crankcase Ass'y. Price: $37.77 |
| 23 |
5-4531 |
ROLLER ASM Price: $704.12 |
| 23 |
530032125 |
Inner Bearing Price: $11.99 |
| 24 |
5-2808 |
DISCONTINUED Price: Call Us |
| 24 |
530032124 |
Outer Bearing Price: $4.99 |
| 25 |
5-2846 |
DISCONTINUED Price: Call Us |
| 25 |
530019179 |
C'case Seal Price: $2.99 |
| 26 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 26 |
530015945 |
Retaining Ring Price: $1.99 |
| 27 |
322-4 |
SCREW-HH Price: $0.35 |
| 27 |
530036578 |
Muffler Body Price: $2.99 |
| 28 |
530036577 |
Muffler Cover Price: $2.99 |
| 29 |
5-4796 |
DISCONTINUED Price: Call Us |
| 29 |
530036580 |
Muffler Baffle-Exit Price: Call Us |
| 30 |
530036579 |
Muffler Baffle-First Price: $2.99 |
| 31 |
530016197 |
Muffler Spring This part replaces 530029930. Price: $1.99 |
| 33 |
530019181 |
Gasket Price: $1.99 |
| 34 |
530012353 |
CYLINDER This part replaces 530012309. Price: $6.99 |
| 36 |
530016014 |
Screw Price: $1.99 |
| 37 |
530019223 |
Gasket-Cylinder This part replaces 530019186. Price: $1.99 |
| 38 |
530035308 |
CARBURETOR Price: $44.99 |
| 38 |
530069569 |
Type II (WA-218) Price: $3.33 |
| 39 |
530036567 |
Type I Price: Call Us |
| 39 |
530037970 |
Type II Price: $2.99 |
| 40 |
530036563 |
Type I Price: $1.99 |
| 40 |
530037326 |
Type II Price: $1.99 |
| 41 |
530037325 |
Choke Shutter Price: Call Us |
| 42 |
530015254 |
Wave Washer Price: $1.99 |
| 43 |
530015852 |
Choke Spacer Price: $1.99 |
| 44 |
530015849 |
Screw Price: $1.99 |
| 45 |
530036569 |
Type I Price: $1.99 |
| 45 |
530037413 |
Type II Price: $1.99 |
| 46 |
530036575 |
Type I Price: $1.99 |
| 46 |
530037331 |
Type II Price: $1.99 |
| 47 |
530036568 |
Type I Price: $1.99 |
| 47 |
530037292 |
Type II Price: $1.99 |
| 48 |
530015957 |
Screw This part replaces 530015966. Price: $1.99 |
| 49 |
530071548 |
Assy Throttle Cable This part replaces 530036744. Price: $3.99 |
| 50 |
530014704 |
Type I Price: $19.73 |
| 50 |
530047105 |
Type II Price: $3.33 |
| 51 |
530026119 |
Check Valve Price: $1.99 |
| 52 |
530029717 |
Element Price: $1.24 |
| 53 |
530029696 |
Retainer Price: Call Us |
| 54 |
530069238 |
Return Line Price: $3.33 |
| 54 |
530069247 |
Fuel Line Price: $3.99 |
| 55 |
530014347 |
Assy-Fuel Cap This part replaces 530036874. Price: $4.99 |
| 56 |
530095646 |
Assy-Fuel Pickup This part replaces 530014362. Price: $2.99 |
| 57 |
530036792 |
C'case Isolator Price: $4.99 |
| 58 |
530036793 |
Shroud Isolator Price: $5.99 |
| 59 |
530069572 |
Kit-Switch This part replaces 530029239. Price: $4.99 |
| 59 |
530071356 |
Switch-Momentary This part replaces 530038114. Price: $4.99 |
| 60 |
530015953 |
Screw Price: $1.99 |
| 61 |
530015767 |
Screw Price: $1.99 |
| 62 |
530015768 |
Locknut Price: $1.99 |
| 64 |
530069232 |
Rope Kit Price: $3.99 |
| 65 |
530016080 |
SCREW This part replaces 530015823. Price: $1.99 |
| 66 |
530071786 |
STARTER PULLEY KIT This part replaces 530069400. Price: $3.99 |
| 67 |
530069380 |
Spark Arrestor Kit Price: $3.99 |
| 68 |
530015162 |
Piston Pin Retainer Price: $1.99 |
| 69 |
530069621 |
Kit-Piston This part replaces 530069387. Price: $27.99 |
| 70 |
530069660 |
Muffler Kit This part replaces 530069389. Price: $11.99 |
| 71 |
530014729 |
C'case & C'shaft Assy (Inc. 10,19, 22-26) Price: Call Us |
| 72 |
530069388 |
Engine Gasket Kit (Inc.7,9,33,37) Price: $2.99 |
| 73 |
530015882 |
Screw Price: $1.99 |
| 74 |
530038874 |
Bulb Ass'y. This part replaces 530037972. Price: $5.99 |
