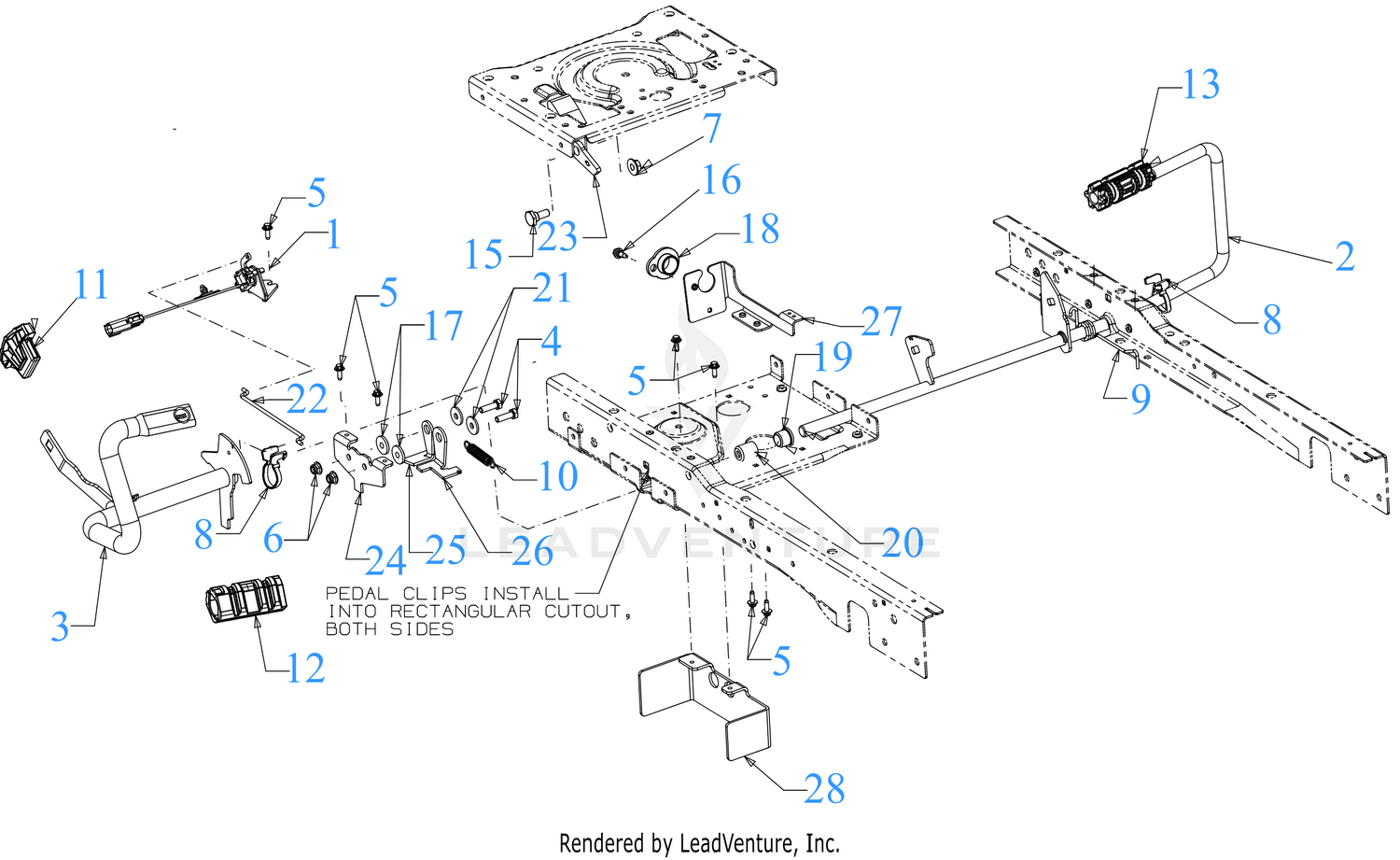

| Ref | Part Number | Description |
|---|
| 1 |
625-07290 |
THROTTLE SENSOR ASSEMLBLY Price: $121.82 |
| 1 |
729-0359 |
HARNESS CLIP Price: $3.24 |
| 1 |
924-04153 |
ROTARY SENSOR MAGNET Price: $9.29 |
| 3 |
649E05101 |
FWD/REV PEDAL ASSEMBLY Price: $63.45 |
| 4 |
710-0376 |
SCREW 5/16-18 x 1.0 GR5 Price: $3.66 |
| 5 |
710-06133 |
SCREW M6-1 x .625 Price: $3.08 |
| 6 |
712-04063 |
FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 7 |
712-04217 |
FLANGE LOCK NUT Price: $3.75 |
| 8 |
731-09957A |
PEDAL CLIP Price: $3.66 |
| 9 |
732-05155 |
TORSION SPRING .725 Price: $4.59 |
| 10 |
732-05615 |
SPRING-EXT .51"DIA x 2.85"LG Price: $19.03 |
| 11 |
735-05028 |
REVERSE PEDAL PAD Price: $5.52 |
| 12 |
735-05030 |
FORWARD PEDAL PAD Price: $11.07 |
| 13 |
735-05051 |
BRAKE PEDAL PAD Price: $10.13 |
| 15 |
738-0380 |
SHOULDER SCREW Price: $7.34 |
| 16 |
738-04184A |
SHOULDER SCREW Price: $5.99 |
| 17 |
738-05474 |
SHOULDER SPACER (.315" x .50" x.14") Price: $2.79 |
| 18 |
741-0356A |
FLANGE BEARING Price: $6.19 |
| 19 |
741-05074B |
FLANGE BEARING .63x.84x.71 This part replaces 741-05074A. Price: $2.47 |
| 20 |
741-05085B |
PLASTIC SLEEVE BEARING This part replaces 741-05085A. Price: $2.47 |
| 21 |
741-05470 |
THRUST BEARING (.323" x .985" x .1") Price: $2.90 |
| 22 |
747-06948 |
SWITCH ROD Price: $5.22 |
| 23 |
748-04203 |
CRUISE LATCH Price: $12.39 |
| 24 |
783-09061 |
NEUTRAL RETURN BRACKET Price: $14.72 |
| 25 |
783-09596A |
FORWARD RETURN BRACKET Price: $16.31 |
| 26 |
783-09739 |
REVERSE RETURN BRACKET Price: $8.87 |
