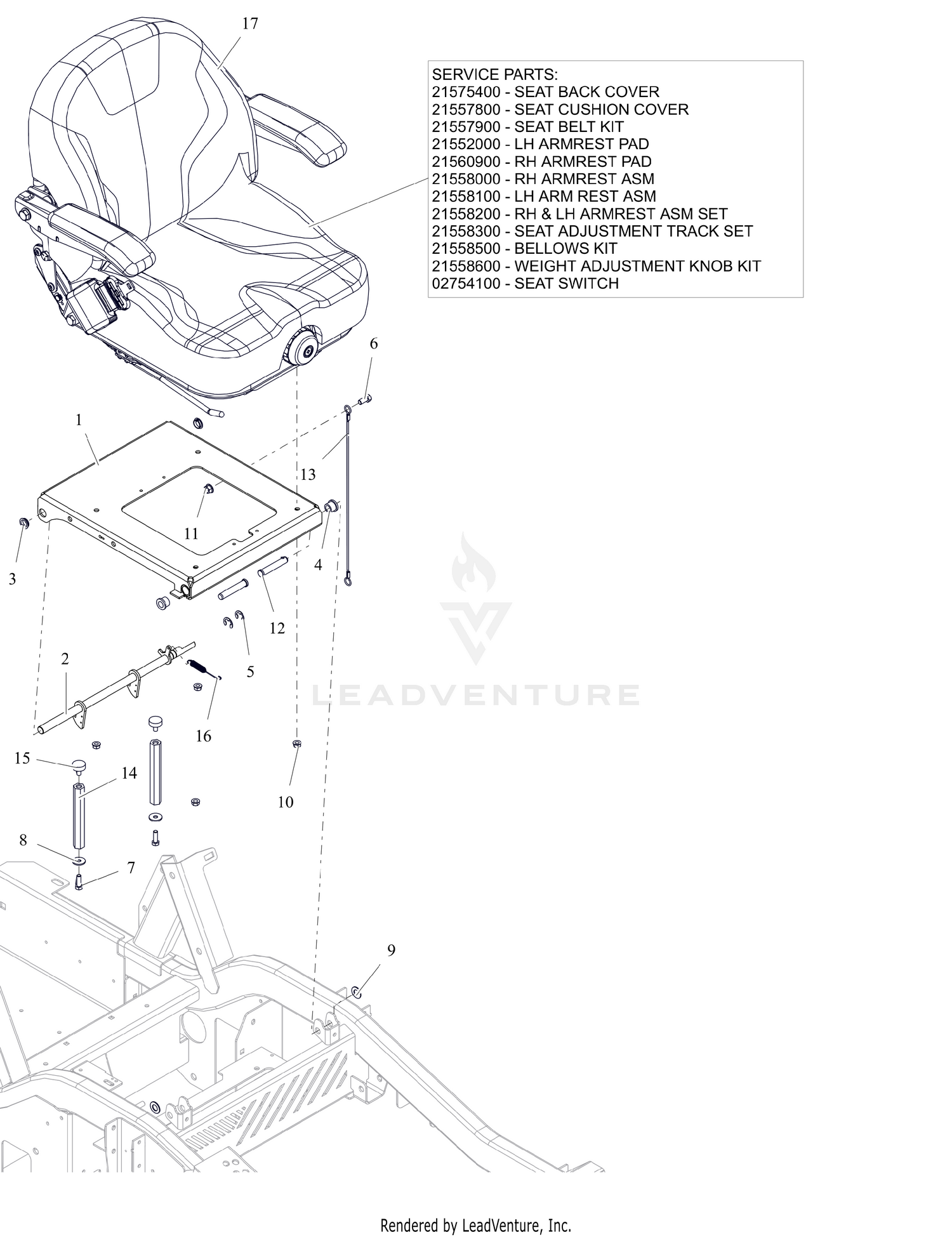

| Ref | Part Number | Description |
|---|
| 1 |
09191559 |
WLDMT, SEAT PLATE (ORANGE) Price: Call Us |
| 2 |
09191659 |
WLDMT, SEAT LATCH (ORANGE) Price: Call Us |
| 3 |
05500021 |
BUSHING, POLYLINER-.63 SNAPIN Price: $2.45 |
| 4 |
05500901 |
BSHG, FLG .516X.750X.625X.937 Price: $5.45 |
| 5 |
05708300 |
RG-RTNG-EXT .625X.042 Price: $0.45 |
| 6 |
05901702 |
BLT,HEX .38-16X.75 G5 ZCC Price: $1.45 |
| 7 |
05901833 |
BLT, HEX .31-18X1.00 G8 ZCC M Price: $3.45 |
| 8 |
06401027 |
WSHR,FLT .328X1.00X.094 ZCC Price: $3.45 |
| 9 |
06401115 |
WSHR, FLT .531X1.00X.063 ZCC Price: $0.45 |
| 10 |
06500840 |
NUT,LK-CTR-FLG .31-18 GF ZCC Price: $0.95 |
| 11 |
06500901 |
NUT-LK-CTR-FLG .375-16 GF ZCC Price: $0.95 |
| 12 |
06800202 |
PIN-CLIC .50X2.70X2.31 -ZCC Price: $7.45 |
| 13 |
06900727 |
CABLE, WIRE (LANYARD)-.093X16.20 Price: $9.95 |
| 14 |
07001836 |
NUT, COUPLING .312-18 X 5.715 Price: $25.95 |
| 15 |
07533600 |
BUMPER, RUBBER Price: $10.95 |
| 16 |
08321100 |
SG-TENS .043X.44X3.31 WLD 5.8 Price: $5.45 |
| 17 |
09385800 |
SEAT, ARIENS MECH SUSPENSION LVR Price: $599.95 |
