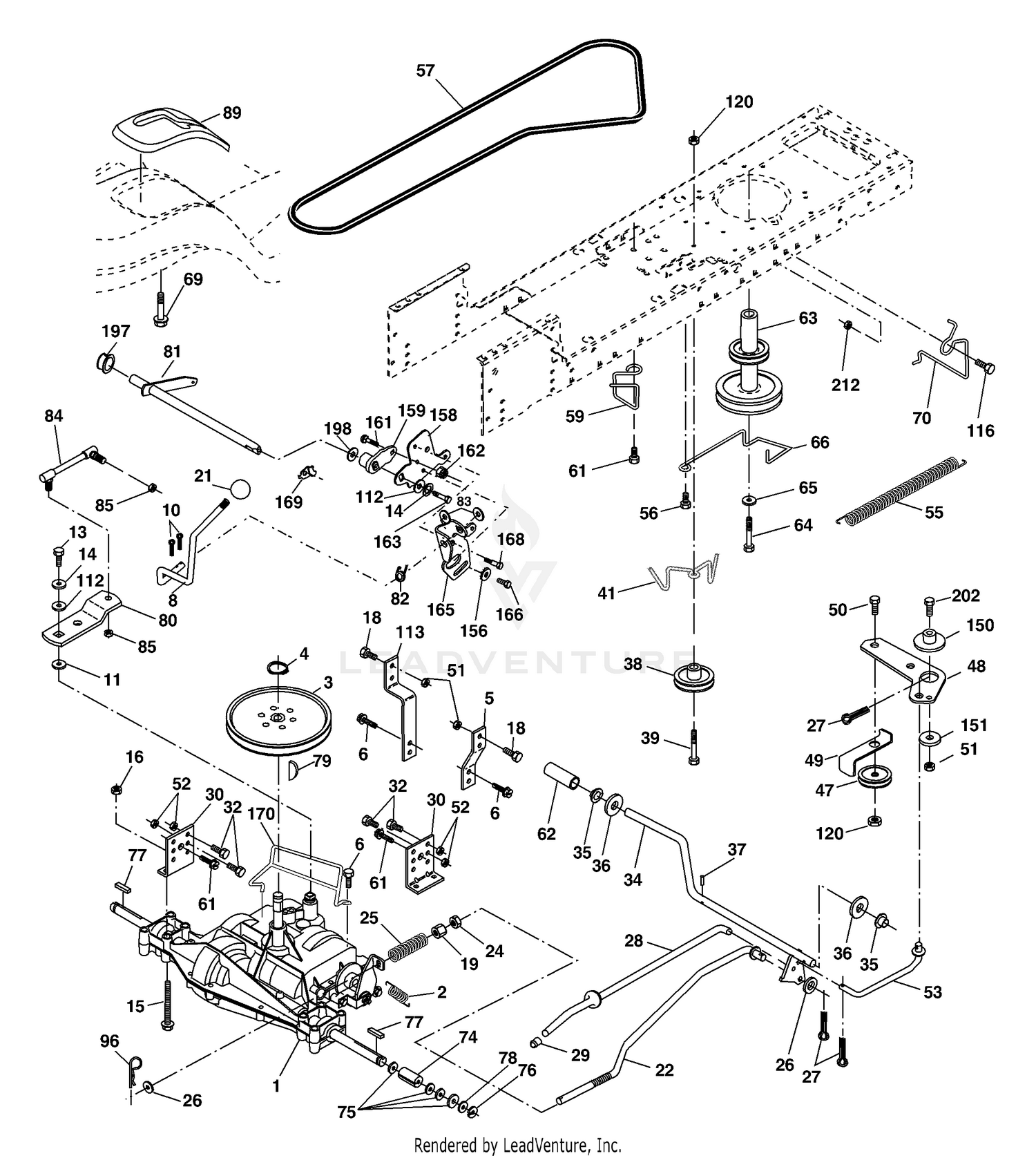

| Ref | Part Number | Description |
|---|
| 1 |
32144-14 |
SCREW-HWHTF Price: $4.29 |
| 2 |
146682 |
Spring Return Brake T/a Zinc Price: Call Us |
| 2 |
340-2 |
FITTING-STRAIGHT Price: $11.43 |
| 3 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 3 |
123666X |
Pulley Transaxle 18" tires Price: Call Us |
| 4 |
12000028 |
Ring Retainer # 5100-62 Price: Call Us |
| 4 |
321-4 |
SCREW-HH Price: $0.99 |
| 5 |
121520X |
Strap Torque 30 Degrees Price: Call Us |
| 5 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 6 |
17060512 |
Screw 5/16-18 X 3/4 Price: Call Us |
| 6 |
2412-72 |
CLIP-CLOSED, INSULATED Price: $1.90 |
| 7 |
33114-025 |
SCREW-HH Price: $0.70 |
| 8 |
165619 |
Rod Shift Fender Adjust Lt Price: Call Us |
| 8 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 9 |
112-9542 |
HYD GEAR PUMP ASM This part replaces 110-5538. Price: $950.70 |
| 10 |
108-5194 |
FILTER-OIL, HYD Price: $39.77 |
| 10 |
76020416 |
Pin Cotter 1/8 X 1 Cad Price: Call Us |
| 11 |
105701X |
Washer Plate Shf 388 Sq Hole Price: Call Us |
| 11 |
131-5510 |
TRANSMISSON ASM This part replaces 107-0801. Price: $6,920.16 |
| 12 |
108-9920 |
COUPLER-SPLINE Price: $53.39 |
| 13 |
33115-035 |
SCREW-HH Price: $1.15 |
| 13 |
74550412 |
Bolt 1/4-28 Unf Gr 8 W/Patch Price: Call Us |
| 14 |
10040400 |
Washer Lock Hvy Helical Price: Call Us |
| 14 |
340-155 |
FITTING-STRAIGHT Price: $28.90 |
| 15 |
340-105 |
FITTING-ELBOW, 90 DEG Price: $39.67 |
| 15 |
74490544 |
Bolt Hex FLGHD 5/16-18 Gr. 5 Price: Call Us |
| 16 |
73800500 |
Nut Lock Hex w/ins 5/16-18 Price: Call Us |
| 17 |
112-1683 |
HOSE Price: $231.99 |
| 18 |
48-9590 |
WASHER-LOCK Price: $0.25 |
| 18 |
74780616 |
Bolt, Fin Hex 3/8-16 UNC x 1 Gr. 5 Price: Call Us |
| 19 |
104-7201 |
NUT-HF Price: $0.69 |
| 19 |
73800600 |
Nut Lock 3/8-16 Unc Price: Call Us |
| 20 |
33115-050 |
SCREW-HH Price: $1.36 |
| 21 |
106933X |
Knob Price: Call Us |
| 21 |
87-1910 |
PIN-DOWEL Price: $1.22 |
| 22 |
119-4162 |
SCREW-CARR This part replaces 323-13. Price: $1.73 |
| 22 |
130804 |
Rod Brake Blk Zinc 26 840 Price: Call Us |
| 23 |
108-5193 |
HOUSING-FLYWHEEL Price: $591.16 |
| 24 |
3234-17 |
SCREW-HHF Price: $0.72 |
| 24 |
73350600 |
Nut Hex Jam 3/8-16 Unc Price: Call Us |
| 25 |
106888X |
Spring Rod Brake 2 00 Zinc Price: Call Us |
| 25 |
80-8560 |
WASHER-HARDENED Price: $5.70 |
| 26 |
110-5518 |
HOSE Price: $199.05 |
| 26 |
19131316 |
Washer 13/32 X 13/16 X 16 Ga Price: Call Us |
| 27 |
108-9919 |
O-RING Price: $3.56 |
| 27 |
76020412 |
Pin Cotter 1/8 X 3/4 Cad Price: Call Us |
| 28 |
120-0239 |
SUPPORT-TUBE This part replaces 110-5534. Price: $10.36 |
| 28 |
175765 |
Rod Brake Parking LT/YT Price: Call Us |
| 29 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 29 |
71673 |
Cap Brake Parking Price: Call Us |
| 30 |
107-2289 |
MOUNT-MOTOR Price: $129.57 |
| 30 |
174973 |
Bracket Mtg Transaxle Price: Call Us |
| 31 |
110-5536 |
FITTING-HYD, ADAPTER Price: $41.30 |
| 32 |
110-5537 |
TUBE Price: $23.63 |
| 32 |
74760512 |
Bolt Hex Hd 5/16-18unc X 3/4 Price: Call Us |
| 33 |
94-5961 |
HOSE Price: $143.03 |
| 34 |
175578 |
Shaft Asm Pedal Foot Price: Call Us |
| 34 |
340-14 |
FITTING-HYD, 45 DEG Price: $42.29 |
| 35 |
120183X |
Bearing Nylon Blk 629 Id Price: Call Us |
| 35 |
340-7 |
FITTING-STRAIGHT Price: $14.00 |
| 36 |
19211616 |
Washer 21/32 X 1 X 16 Ga Price: Call Us |
| 37 |
1572H |
Pin Roll 3/16 X 1" Price: Call Us |
| 38 |
179114 |
Pulley Composite Flat Price: Call Us |
| 39 |
72110622 |
Bolt 3/8-16 unc x 2-3/4 Price: Call Us |
| 41 |
175556 |
Keeper Belt Flat Idler Price: Call Us |
| 47 |
127783 |
Pulley Idler V Groove Plastic Price: Call Us |
| 48 |
154407 |
Bellcrank Asm Price: Call Us |
| 49 |
123205X |
Retainer Belt Style Spring Price: Call Us |
| 50 |
72110612 |
Bolt Carr. Sh. 3/8-16 x 1-1/2 Gr. 5 Price: Call Us |
| 51 |
73680600 |
Nut Crownlock 3/8-16 Unc Price: Call Us |
| 52 |
73680500 |
Nut Crownlock 5/16-18 Unc Price: Call Us |
| 53 |
105710X |
Link Clutch Price: Call Us |
| 55 |
105709X |
Spring Return Clutch 6 75 Price: Call Us |
| 56 |
17060620 |
Screw 3/8-16 x 1-1/4 Price: Call Us |
| 57 |
130801 |
V-Belt Ground Drive 95 25 Price: Call Us |
| 59 |
169691 |
Keeper Belt Span Ctr Price: Call Us |
| 61 |
17120614 |
Screw 3/8-16 x .875 Price: Call Us |
| 62 |
8883R |
Cover Pedal Blk Round Price: Call Us |
| 63 |
175410 |
Engine Pulley Price: Call Us |
| 64 |
173937 |
Bolt Hex Price: Call Us |
| 65 |
10040700 |
Washer Lock Hvy Hlcl Spr 7/16 Price: Call Us |
| 66 |
154778 |
Keeper Belt Engine Foolproof Price: Call Us |
| 69 |
142432 |
Screw Hex wsh Hi Lo 1/4 x 1/2 unc Price: Call Us |
| 70 |
134683 |
Guide Belt Mower Drive RH Price: Call Us |
| 74 |
137057 |
Spacer Axle Price: Call Us |
| 75 |
121749X |
Washer 25/32 X 1 1/4 X 16 Ga Price: Call Us |
| 76 |
12000001 |
E-ring #5133-75 Price: Call Us |
| 77 |
123583X |
Key Square 2 0 X 1845/ 1865 Price: Call Us |
| 78 |
121748X |
Washer 25/32 X 1-5/8 X 16 Ga Price: Call Us |
| 79 |
2228M |
Key Woodruff #9 3/16 x 3/4 Price: Call Us |
| 80 |
131486 |
Arm Shift Price: Call Us |
| 81 |
165594 |
Shaft Asm Cross Tapered PMST/20 Price: Call Us |
| 82 |
123782X |
Spring Torsion T/a Price: Call Us |
| 83 |
19171216 |
Washer 17/32 X 3/4 X 16 Ga Price: Call Us |
| 84 |
166228 |
Link Transaxle PMST/18" Zinc Price: Call Us |
| 85 |
150360 |
Nut Lock Center 1/4 - 28 FNTHD Price: Call Us |
| 89 |
169372X428 |
Console Shift STLT Price: Call Us |
| 96 |
4497H |
Retainer Spring 1" Price: Call Us |
| 112 |
19091210 |
Washer 9/32 x 3/4 x 10 Ga. Price: Call Us |
| 113 |
127285X |
Strap Torque LT Price: Call Us |
| 116 |
72140608 |
Bolt Rdhd Sq Neck 3/8-16 x 1 Price: Call Us |
| 120 |
73900600 |
Nut Lock Flg. 3/8-16 Unc Price: Call Us |
| 150 |
175456 |
Spacer Retainer Price: Call Us |
| 151 |
19133210 |
Washer 13/32 x 2 x 10 Price: Call Us |
| 156 |
166002 |
Washer Srrted 5/16ID x 1.125 Price: Call Us |
| 158 |
165589 |
Bracket Shift Mount Price: Call Us |
| 159 |
183900 |
Hub Shift Price: Call Us |
| 161 |
72140406 |
Bolt Rdhd Sqnk 1/4-20 x 3/4 Gr Price: Call Us |
| 162 |
73680400 |
Nut Crownlock 1/4-20 Unc Price: Call Us |
| 163 |
74780416 |
Bolt Hex Fin 1/4-20 Unc x 1 Gr 5 Price: Call Us |
| 165 |
165623 |
Bracket Pivot Lever Price: Call Us |
| 166 |
17490510 |
Screw 5/16-18 x 5/8 Price: Call Us |
| 168 |
165492 |
Bolt Shoulder 5/16-18 x .561 Price: Call Us |
| 169 |
165580 |
Plate Fastening Price: Call Us |
| 170 |
187414 |
Keeper Belt Transaxle Gear Price: Call Us |
| 197 |
169613 |
Nyliner Snap-In Price: Call Us |
| 198 |
169593 |
Washer Nyliner Price: Call Us |
| 202 |
72110614 |
Bolt Rd Hd 3/8-16 Unc x 1-3/4 Gr. 5 Price: Call Us |
