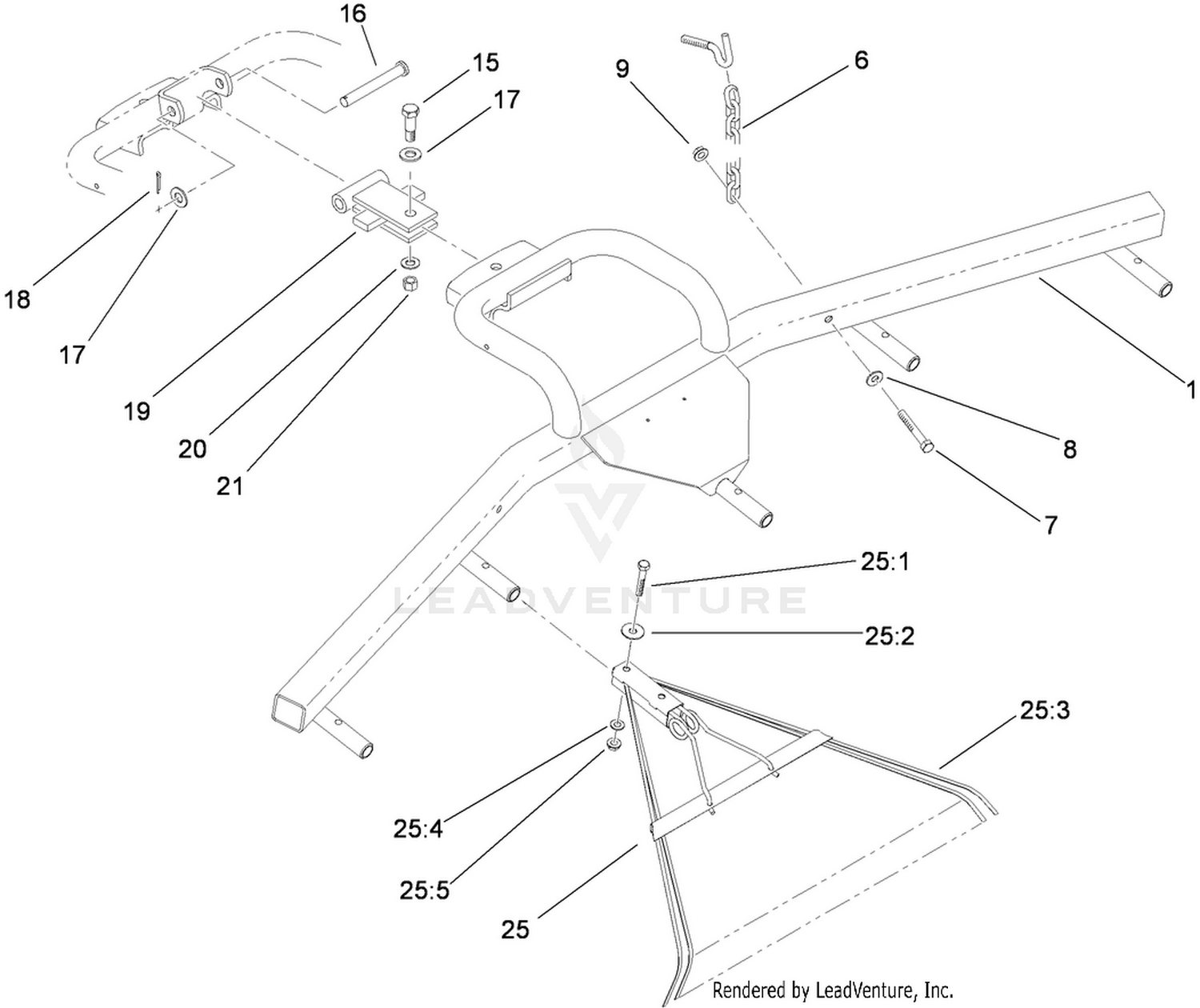

Spring Rake Assembly
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 85-0310-03 | HANGER ASM Price: $538.62 |
| 6 | 84-2453 | CHAIN-LINK, 16 Price: $19.80 |
| 7 | 323-12 | SCREW-HH Price: $1.14 |
| 8 | 3256-3 | WASHER-FLAT Price: $0.49 |
| 9 | 32128-21 | NUT-HF Price: $0.39 |
| 15 | 80-2050 | BOLT-SHOULDER Price: $29.15 |
| 16 | 283-83 | PIN-CLEVIS Price: $9.52 |
| 17 | 3256-26 | WASHER-FLAT Price: $0.39 |
| 18 | 3272-12 | PIN-COTTER Price: $0.25 |
| 19 | 84-2230-03 | PIVOT ASM Price: $62.73 |
| 20 | 3256-25 | WASHER-FLAT Price: $0.25 |
| 21 | 3296-48 | NUT-LOCK, NI Price: $0.37 |
| 25 | 117-4689 | SPRING RAKE KIT Price: $65.49 |
