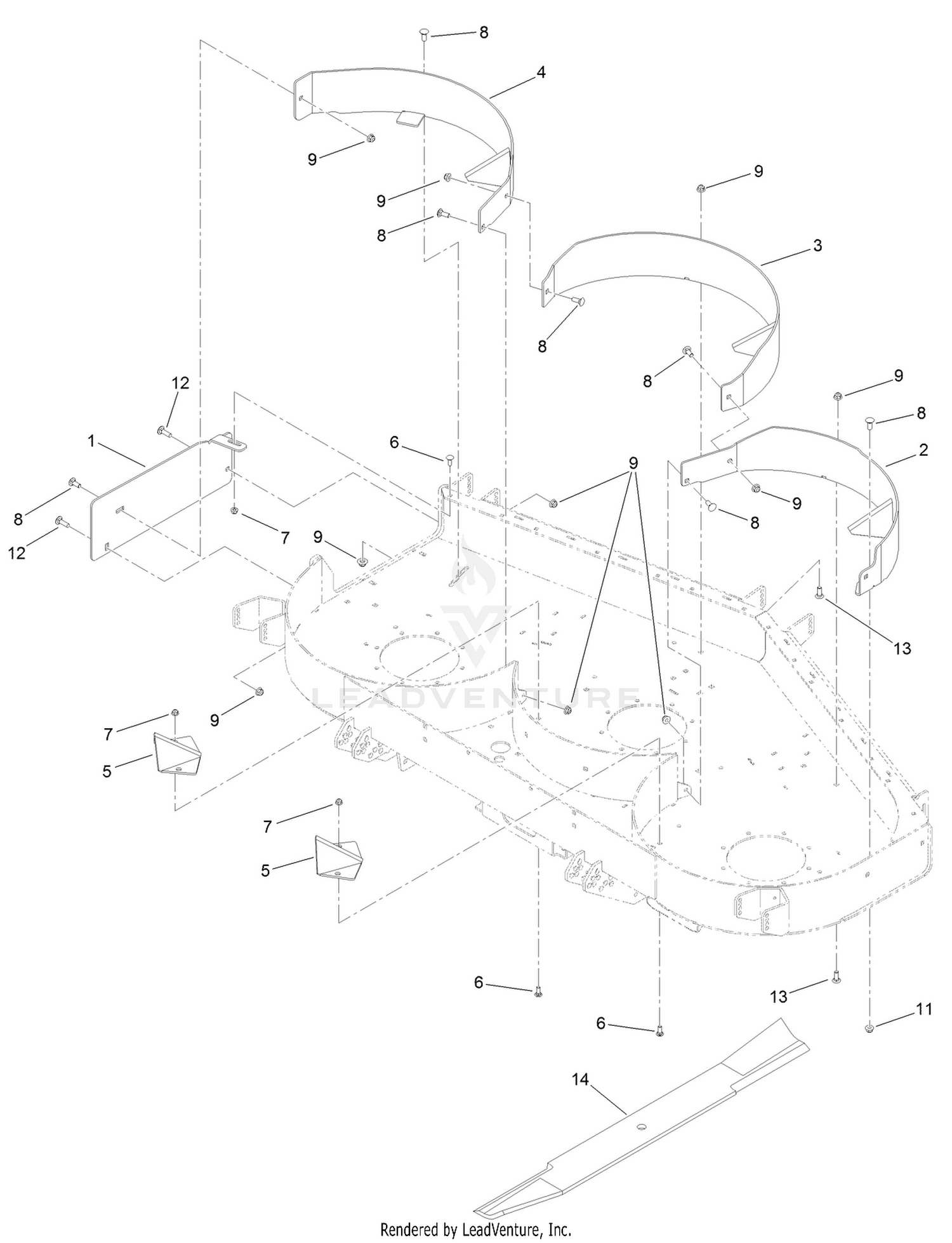

Recycler Kit Assembly
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 115-7471-01 | PLATE-COVER, DISCHARGE Price: $126.99 |
| 2 | 138-7326-01 | BAFFLE-RECYCLER, LH Price: $217.99 |
| 3 | 115-7497-01 | BAFFLE-CENTER Price: $242.99 |
| 4 | 139-6660-01 | BAFFLE-RH Price: $217.99 |
| 5 | 107-1616-01 | Kicker Price: $55.99 |
| 6 | 3230-16 | SCREW-CARR Price: $1.79 |
| 7 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 8 | 3231-2 | BOLT-CARR Price: $0.81 |
| 9 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 11 | 109-6658 | NUT-FLANGE, NI Price: $0.89 |
| 12 | 119-4162 | SCREW-CARR This part replaces 3231-25. Price: $1.73 |
| 13 | 3231-22 | SCREW-CARR Price: $0.72 |
