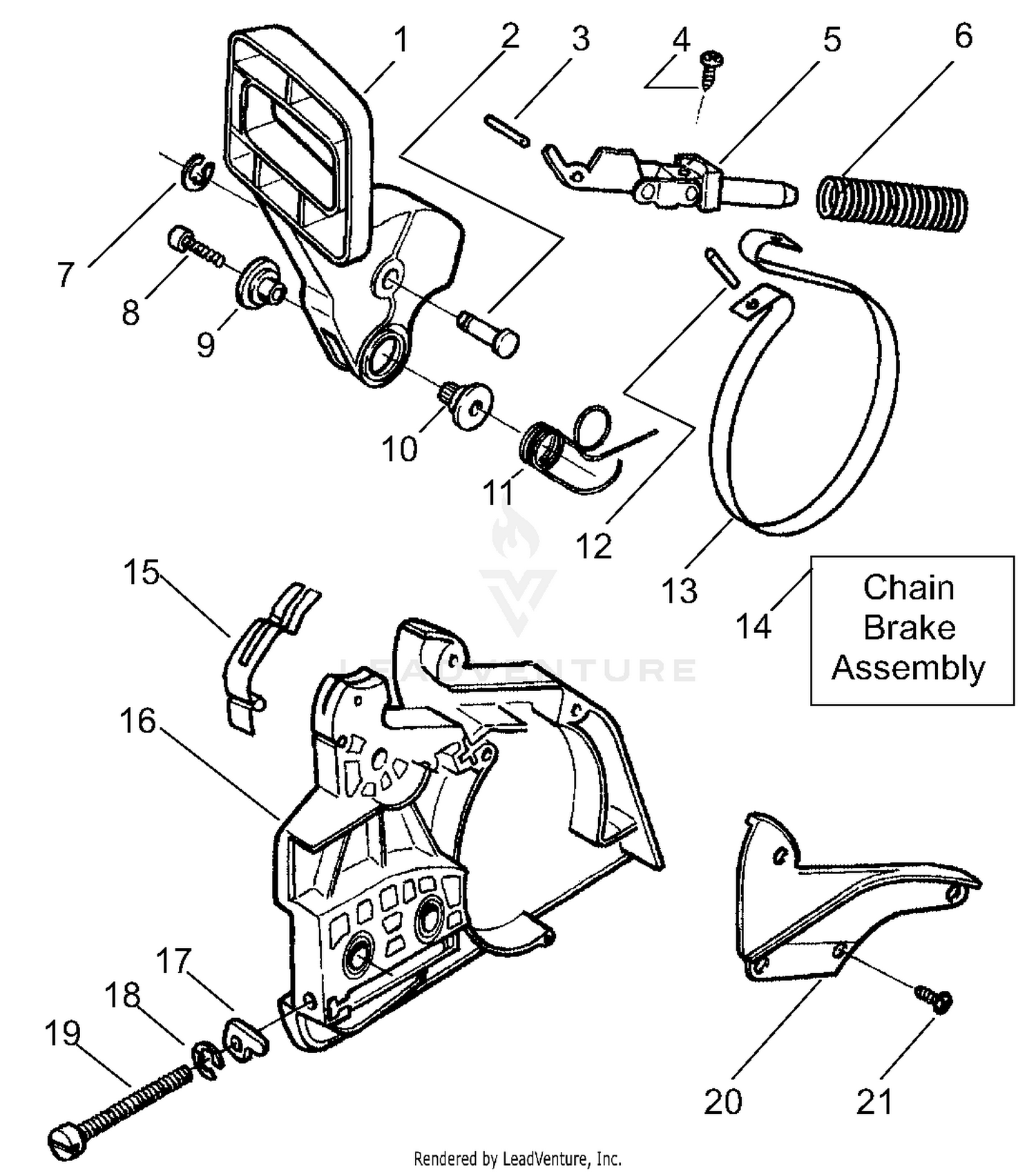

| Ref | Part Number | Description |
|---|
| 1 |
530071348 |
HANDGUARD Price: $21.99 |
| 1 |
82-6490 |
HOSE Price: $83.18 |
| 2 |
530029879 |
PIVOT PIN Price: $3.99 |
| 2 |
92-7562 |
HOSE ASM Price: $71.47 |
| 3 |
237-21 |
O-RING Price: $0.70 |
| 3 |
530015915 |
PIN Price: $3.99 |
| 4 |
340-92 |
FITTING-STRAIGHT Price: $12.29 |
| 4 |
574780301 |
SCREW M3.63-1.34 X 8MM This part replaces 530015911. Price: $3.99 |
| 5 |
237-78 |
O-RING Price: $3.85 |
| 5 |
530054741 |
FRONT LINK ASSY Price: $4.99 |
| 6 |
545137301 |
COMPRESSION SPRING This part replaces 530016237. Price: $6.99 |
| 6 |
93-7489 |
ORIFICE VALVE ASM Price: $191.40 |
| 7 |
530024419 |
E-RING Price: $4.99 |
| 7 |
94-8043 |
STRAIGHT THREAD UNION This part replaces 93-7597. Price: $17.17 |
| 8 |
237-42 |
O-RING Price: $2.78 |
| 8 |
530015914 |
SCREW Price: $2.99 |
| 9 |
237-30 |
O-RING Price: $2.50 |
| 9 |
530049075 |
SHAFT PIVOT Price: $0.99 |
| 10 |
530029881 |
SHAFT PIVOT Price: $2.99 |
| 11 |
340-132 |
FITTING-ELBOW, 90 DEG Price: $24.64 |
| 11 |
530015910 |
SPRING,BRK HDL 36/41 Price: $4.99 |
| 12 |
530015913 |
PIN Price: $2.99 |
| 12 |
92-7591 |
DISCONTINUED Price: Call Us |
| 13 |
545137401 |
BRAKE BAND This part replaces 530052232. Price: $5.99 |
| 13 |
92-7418 |
CEC FRONT MANIFOLD BLOCK Price: $4,179.78 |
| 14 |
354-77 |
FITTING-QUICK Price: $55.94 |
| 14 |
530054802 |
CHAIN BRAKE ASM. Price: $39.99 |
| 15 |
354-79 |
CAP-DUST Price: $7.81 |
| 15 |
530029878 |
SPRING-POSITION Price: $4.99 |
| 16 |
530049483 |
CLUTCH COVER Price: $14.99 |
| 16 |
92-7491 |
HOSE ASM Price: $111.21 |
| 17 |
340-4 |
FITTING-STRAIGHT Price: $11.58 |
| 17 |
530015826 |
ADJUST PIN,BAR 36/41 Price: $3.99 |
| 18 |
237-79 |
O-RING Price: $5.46 |
| 18 |
530038593 |
RETAINER Price: $3.99 |
| 19 |
530016110 |
BAR ADJUSTING SCREW Price: $3.99 |
| 19 |
92-7557 |
FRONT COOLER TUBE ASM Price: $71.65 |
| 20 |
237-65 |
O-RING Price: $2.50 |
| 20 |
530053035 |
CHAIN BRAKE COVER Price: $2.99 |
| 21 |
340-139 |
FITTING-ELBOW 90 Price: $117.76 |
| 22 |
237-81 |
O-RING Price: $2.76 |
| 23 |
340-2 |
FITTING-STRAIGHT Price: $11.43 |
| 24 |
93-1264 |
DISCONTINUED Price: Call Us |
| 24 |
93-9197 |
DISCONTINUED Price: Call Us |
| 25 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 26 |
92-7519-01 |
BRACKET-MANIFOLD BLOCK This part replaces 92-7519. Price: $57.65 |
| 27 |
33104-016 |
SCREW-HHF Price: $0.97 |
| 28 |
93-7970 |
HANGER-HOSE Price: $16.96 |
| 29 |
3217-6 |
NUT-HEX Price: $1.19 |
| 30 |
94-3090 |
HARNESS - WIRE, MAIN Price: $1,957.31 |
| 31 |
93-7487 |
DISCONTINUED Price: Call Us |
| 32 |
3234-17 |
SCREW-HHF Price: $0.72 |
| 33 |
321-15 |
SCREW-HH Price: $0.61 |
| 34 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 35 |
139-5984 |
CONTROLLER-ELECTRONIC This part replaces 92-5720. Price: $2,183.63 |
| 36 |
237-22 |
O-RING Price: $2.43 |
| 37 |
93-4222 |
DRAIN RETURN TUBE ASM Price: $85.32 |
| 38 |
94-1446 |
DRAIN TUBE ASM Price: $88.56 |
| 39 |
93-4217 |
DISCONTINUED Price: Call Us |
| 40 |
93-4216 |
TUBE ASM Price: $98.51 |
| 41 |
92-7565 |
HOSE ASM Price: $89.51 |
| 42 |
92-7564 |
HOSE-HYD Price: $84.98 |
