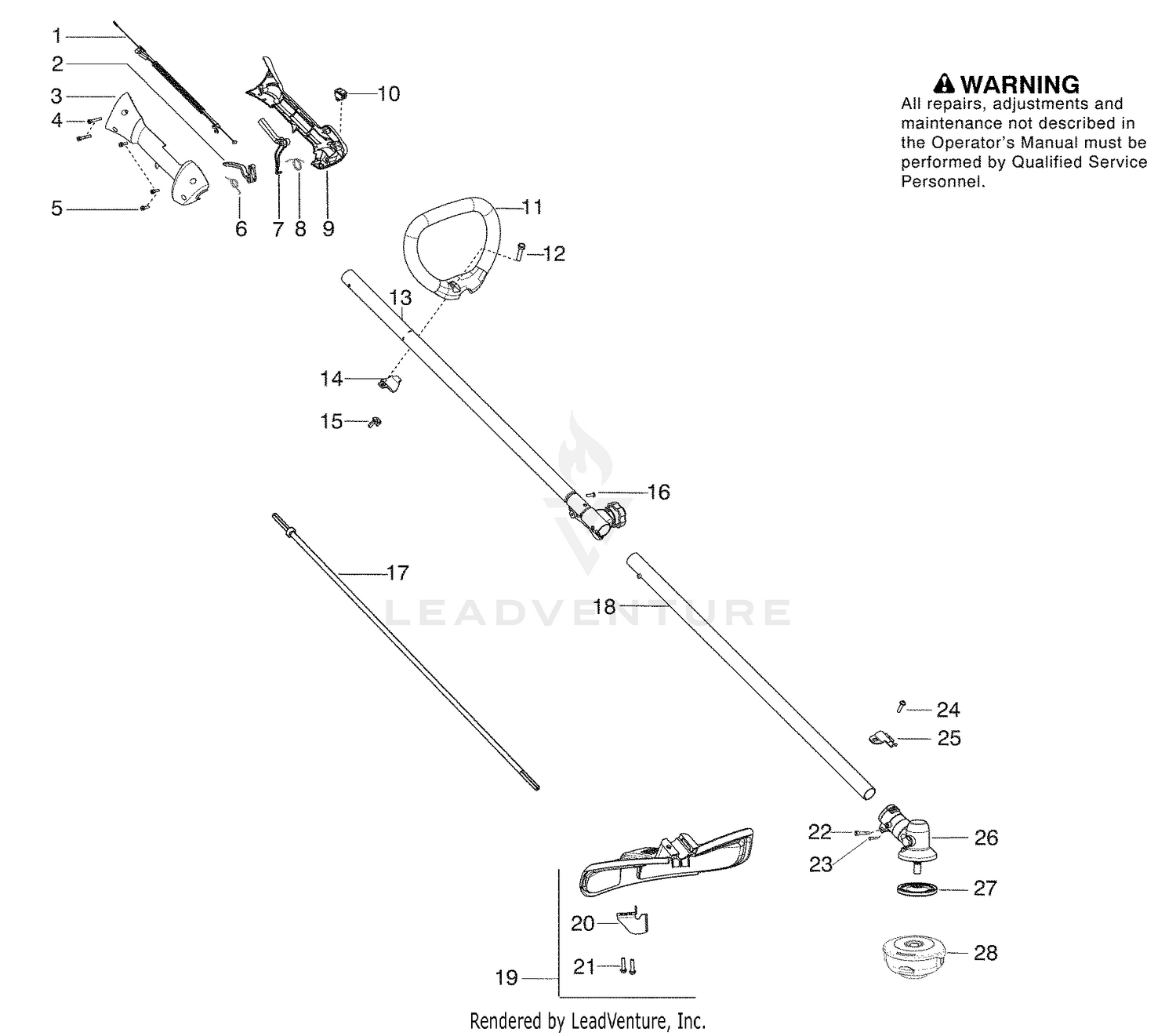

| Ref | Part Number | Description |
|---|
| 1 |
321-3 |
SCREW-HH Price: $0.28 |
| 1 |
545125301 |
ASSY-CABLE WIRE HARNESS Price: $19.99 |
| 2 |
545066001 |
TRIGGER THROTTLE Price: $5.99 |
| 2 |
85-9070 |
CONSOLE ASM Price: $221.09 |
| 3 |
3256-1 |
WASHER-FLAT Price: $0.39 |
| 3 |
545062001 |
HOUSING-THROTTLE RH Price: $8.99 |
| 4 |
3258-166 |
SCREW-PRH Price: $0.28 |
| 4 |
530016448 |
SCREW Price: $2.99 |
| 5 |
530016449 |
SCREW M4 X 1.75 PT 16MM Price: $3.99 |
| 5 |
83-0020 |
SWITCH-IGNITION Price: $56.91 |
| 6 |
3254-5 |
WASHER-LOCK Price: $0.49 |
| 6 |
530016454 |
SPRING TRIGGER Price: $4.99 |
| 7 |
218-461 |
NUT-HH Price: $2.50 |
| 7 |
530059804 |
THROTTLE LOCKOUT Price: $4.99 |
| 8 |
545045601 |
SPRING LOCKOUT Price: $4.99 |
| 8 |
63-8360 |
KEY-IGNITION Price: $5.29 |
| 9 |
545067001 |
HSG THROTTLE LH Price: $9.99 |
| 9 |
83-0820 |
GAUGE - AMMETER Price: $76.09 |
| 10 |
120-2244 |
HOURMETER This part replaces 66-2950. Price: $48.06 |
| 10 |
545049301 |
KIT SWITCH This part replaces 545030601. Price: $8.99 |
| 11 |
218-594 |
FUSE-20 AMP Price: $3.02 |
| 11 |
545042201 |
HANDLE Price: $14.99 |
| 12 |
530015820 |
BOLT, TYPE 2 Price: $3.99 |
| 12 |
80-2120 |
DISCONTINUED Price: Call Us |
| 14 |
3255-20 |
WASHER-LOCK Price: $0.25 |
| 14 |
530059185 |
CLAMP ASSIST HANDLE Price: $2.99 |
| 15 |
3217-25 |
NUT-HEX Price: $0.25 |
| 15 |
530091373 |
NUT-"D" HANDLE This part replaces 530016152. Price: $3.99 |
| 16 |
39-9600 |
MTG CLAMP F/W GUAGE Price: $19.63 |
| 16 |
530016344 |
SCREW Price: $2.99 |
| 17 |
3219-14 |
NUT-HEX Price: $0.25 |
| 17 |
545132002 |
FLEXSHAFT Price: $4.99 |
| 18 |
545180848 |
KIT LOWER SHAFT Price: $24.99 |
| 18 |
85-8890-03 |
DISCONTINUED This part replaces 85-8890. Price: Call Us |
| 19 |
32148-6 |
NUT-CLINCH Price: $1.24 |
| 20 |
530052286 |
Limiter - Line Price: $0.68 |
| 21 |
530015814 |
SCREW Price: $0.17 |
| 21 |
85-8830 |
DECAL-CONSOLE Price: $14.80 |
| 21 |
92-1860 |
DECAL - CONSOLE Price: $18.85 |
| 21 |
93-9056 |
DISCONTINUED Price: Call Us |
| 22 |
530016014 |
SCREW - CARB. ADAPTOR Price: $2.99 |
| 23 |
530016301 |
SCREW Price: $2.99 |
| 24 |
530015771 |
SCREW 1/4-20 X 7/8 (TAP Price: $3.99 |
| 25 |
530057554 |
BRACKET SHIELD STRAIGHT SHAFT Price: $4.99 |
| 26 |
530096295 |
ASSY GEARBOX Price: $34.99 |
| 27 |
537234901 |
DRIVE DISC Price: $19.99 |
| 28 |
537338310 |
TRIMMER HEAD T25 This part replaces 537338306. Price: $27.99 |
