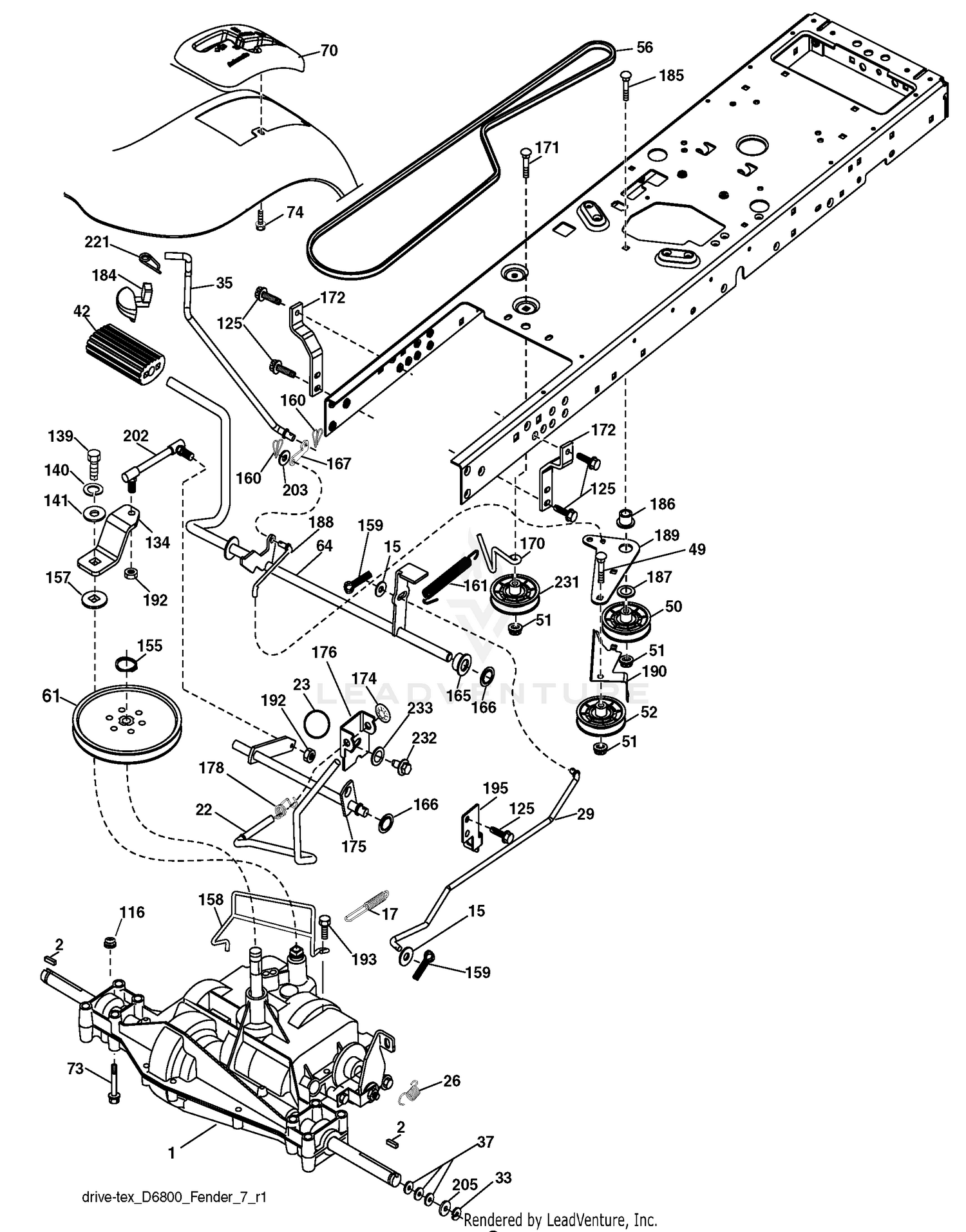

| Ref | Part Number | Description |
|---|
| 2 |
123583X |
Key Square Price: Call Us |
| 10 |
100-9150 |
CRANKCASE Price: $3,894.62 |
| 15 |
19131316 |
Washer 13/32 x 13/16 x 16 Ga. Price: Call Us |
| 17 |
197297 |
Spring, Brake Price: Call Us |
| 20 |
98-7486 |
PLUG Price: $1.11 |
| 22 |
197660 |
Rod Shift Price: Call Us |
| 23 |
409154X421 |
Knob Price: Call Us |
| 26 |
197455 |
Spring Brake RTN Price: Call Us |
| 29 |
197267 |
Rod, Brake Price: Call Us |
| 30 |
98-7487 |
PLUG Price: $3.18 |
| 33 |
12000001 |
Ring E Price: Call Us |
| 35 |
197722 |
Rod, Brake, Park Price: Call Us |
| 37 |
121749X |
Washer 25/32 x 1-1/4 x 16 Ga. Price: Call Us |
| 40 |
98-7488 |
PLUG This part replaces 107-0107. Price: $2.74 |
| 42 |
8883R |
Cover, Foot Pedal Price: Call Us |
| 49 |
72110614 |
Bolt Price: Call Us |
| 50 |
194327 |
Pulley Idler Flat Price: Call Us |
| 50 |
98-9379 |
PLUG-EXPANSION This part replaces 98-7489. Price: $0.76 |
| 51 |
73900600 |
Lock Nut 3/8-16 Price: Call Us |
| 52 |
194326 |
Idler V-Groove Price: Call Us |
| 56 |
411245 |
V-Belt, Drive Price: Call Us |
| 60 |
98-7490 |
PLUG Price: $0.60 |
| 61 |
123666X |
Pulley Transaxle Price: Call Us |
| 64 |
196200 |
Shaft Asm. Pedal Brake Control Price: Call Us |
| 70 |
193225X428 |
Console Price: Call Us |
| 70 |
98-7500 |
CAP-SEALING Price: $7.89 |
| 73 |
74490544 |
Bolt 5/16-18 Gr. 5 Price: Call Us |
| 74 |
142432 |
Screw 1/4 x 1/2 Price: Call Us |
| 80 |
98-7501 |
CAP-SEALING Price: $4.84 |
| 90 |
98-7502 |
PIN-STRAIGHT Price: $0.24 |
| 100 |
98-7503 |
PIN-STRAIGHT Price: $0.42 |
| 110 |
98-7504 |
PIN-STRAIGHT Price: $0.72 |
| 116 |
73900500 |
Nut Lock Hex Flange 5/16-18 Price: Call Us |
| 120 |
98-7505 |
PIN-STRAIGHT Price: $0.66 |
| 125 |
17000512 |
Screw 5/16-18 x 3/4 Price: Call Us |
| 130 |
98-7506 |
PIN-PIPE Price: $3.62 |
| 134 |
402430 |
Arm Shift Price: Call Us |
| 139 |
74550412 |
Bolt 1/4-20 unf Gr. 8 w/Patch Price: Call Us |
| 140 |
10040400 |
Washer Lock Hvy Helical 1/4 Price: Call Us |
| 140 |
98-7509 |
O-RING Price: $4.31 |
| 141 |
19091210 |
Washer 9/32 x 3/4 x 10 Ga. Price: Call Us |
| 150 |
100-9153 |
PIPE-RETURN, WATER Price: $6.85 |
| 155 |
12000028 |
Ring Retainer Price: Call Us |
| 157 |
105701X |
Washer Plate Shf Price: Call Us |
| 158 |
194352 |
Keeper T/A Price: Call Us |
| 159 |
76020412 |
Pin Cotter 1/8 x 3/4 Price: Call Us |
| 160 |
169484 |
Retainer Clip Price: Call Us |
| 161 |
195403 |
Spring, Return, Clutch Price: Call Us |
| 165 |
196212 |
Busing Shaft Brake Hand Control Price: Call Us |
| 166 |
197290 |
Nut Push .625 Price: Call Us |
| 167 |
405257 |
Latch Brake Parking Price: Call Us |
| 170 |
413430 |
Keeper Belt Centerspan Price: Call Us |
| 171 |
72110622 |
Bolt Price: Call Us |
| 172 |
197657 |
Strap Torque LH Price: Call Us |
| 174 |
197289 |
Nut Push Price: Call Us |
| 175 |
198981 |
Shaft Asm Shift Price: Call Us |
| 176 |
196214 |
Arm Clevis Rod Shift Price: Call Us |
| 178 |
197456 |
Spring Shift Price: Call Us |
| 184 |
198403X505 |
Handle Parking Brake Price: Call Us |
| 185 |
72110620 |
Bolt Price: Call Us |
| 186 |
194321 |
Spacer Retainer Price: Call Us |
| 187 |
19133210 |
Washer Price: Call Us |
| 188 |
194323 |
Link Clutch Ground Drive Price: Call Us |
| 189 |
194317 |
Bellcrank Ground Drive Price: Call Us |
| 190 |
194318 |
Keeper Bellcrank Ground Drive Price: Call Us |
| 192 |
150360 |
Nut Lock Center 1/4-28 Price: Call Us |
| 193 |
17060512 |
Screw 5/16-18 x 3/4 Price: Call Us |
| 195 |
197332 |
Bracket Brake Rod Price: Call Us |
| 202 |
199589 |
Link Shift Price: Call Us |
| 203 |
19111116 |
Washer 11/32 x 11/16 x 16 Ga. Price: Call Us |
| 205 |
121748X |
Washer 25/32 x 1-5/8 x 16 Ga. Price: Call Us |
| 221 |
403187 |
Retainer Spring Clip Handle Price: Call Us |
| 231 |
407287 |
Idler V- Groove Price: Call Us |
| 232 |
74780716 |
Bolt 7/16-14 x 1 Gr. 5 Price: Call Us |
