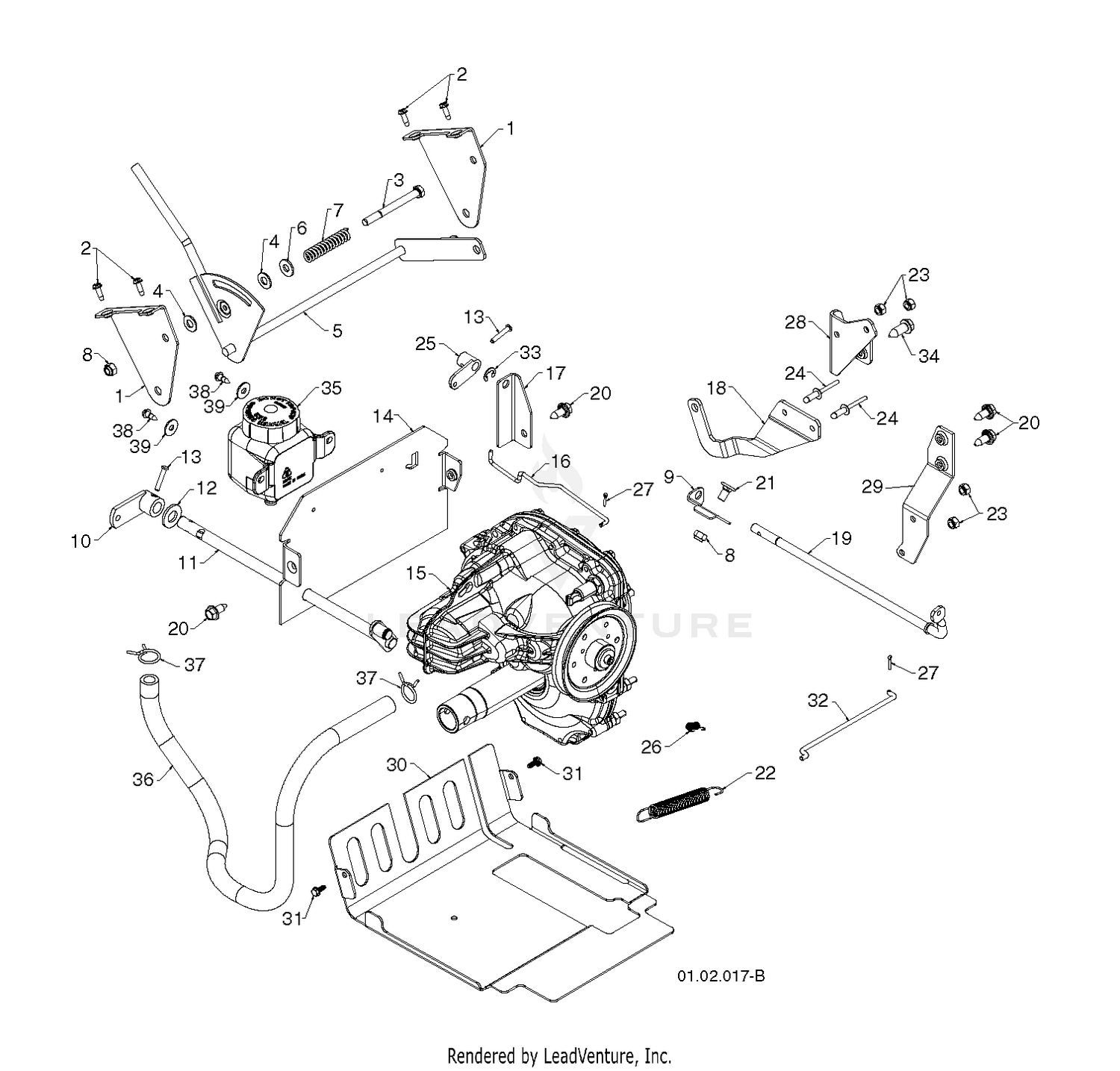

| Ref | Part Number | Description |
|---|
| 1 |
532443344 |
BRACKET.SHIFT.HYDRO Price: $3.99 |
| 1 |
98-7708 |
NUT Price: $7.76 |
| 2 |
817501010 |
SCREW #10-24 X 5/8 Price: $4.99 |
| 2 |
98-9453 |
PULLEY-DYNAMO Price: $138.04 |
| 3 |
874760552 |
SCREW 5/16-18 X 3.25 Price: $3.99 |
| 3 |
98-7709 |
COLLAR Price: $8.79 |
| 4 |
532179246 |
WASHER, NYLON FRICTION Price: $3.99 |
| 4 |
99-7714 |
Frame-Drive End Price: Call Us |
| 5 |
532192001 |
LEVER ASSEMBLY, SPEED CONTROL Price: $27.99 |
| 5 |
98-7717 |
BOLT-THROUGH Price: $9.75 |
| 6 |
532155415 |
WASHER.20X8.5 Price: $4.99 |
| 6 |
98-7716 |
SCREW-HEAD, ROUND Price: $0.91 |
| 7 |
107-0136 |
ROTOR ASM This part replaces 98-7710. Price: $268.62 |
| 7 |
532192195 |
SRPING.FRICTION.HYDRO Price: $3.99 |
| 8 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 8 |
98-7712 |
BEARING-BALL Price: $31.09 |
| 9 |
532429803 |
BRACKET.HYD.CLUTCH. Price: $4.99 |
| 9 |
98-7711 |
COVER-BEARING Price: $7.32 |
| 10 |
532443191 |
ARM.CONTRL.PIN.TRACK Price: $14.99 |
| 10 |
98-7713 |
WASHER-THRUST Price: $4.49 |
| 11 |
532429668 |
KIT.CONTROL.SHAFT.SNOW This part replaces 532427542. Price: $29.99 |
| 11 |
98-7715 |
PLATE-RETAINER Price: $9.38 |
| 12 |
532188906 |
WASHER.FLAT.1/2 Price: $6.99 |
| 12 |
98-7718 |
BEARING-BALL Price: $34.82 |
| 13 |
532198580 |
CLEVIS PIN Price: $4.99 |
| 13 |
98-7719 |
FRAME-END Price: $88.65 |
| 14 |
532407868 |
PLATE.REAR.HYDRO.ORANGE Price: $17.99 |
| 14 |
98-7730 |
NUT Price: $1.31 |
| 15 |
532445058 |
TRANSMISSION 321-0410 Price: $949.00 |
| 15 |
98-7731 |
BOLT Price: $3.94 |
| 16 |
532193256 |
ROD, BYPASS VALVE Price: $8.99 |
| 16 |
98-7721 |
RECTIFIER ASM Price: $486.45 |
| 17 |
532429805 |
BRACKET.HYD.CLUTCH.REAR Price: $5.99 |
| 17 |
98-7722 |
BUSHING-INSULATION Price: $28.44 |
| 18 |
532187787 |
ARM.CONTROL.HYDRO.SNOW Price: $11.99 |
| 18 |
98-7732 |
NUT Price: $1.45 |
| 19 |
110-3799 |
REGULATOR ASM This part replaces 98-7733. Price: $426.99 |
| 19 |
532198251 |
SHAFT.HYD.CLUTCH Price: $17.99 |
| 20 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 Price: $4.99 |
| 20 |
98-7726 |
SCREW-HEAD, ROUND Price: $0.42 |
| 21 |
532180355 |
BOLT.CARRIAGE.5/16-18X Price: $3.99 |
| 21 |
98-7728 |
SCREW-HEAD, ROUND Price: $0.70 |
| 22 |
532178828 |
SPRING, BRAKE Price: $4.99 |
| 22 |
98-7729 |
BOLT Price: $2.35 |
| 23 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 873800400. Price: $1.99 |
| 23 |
98-7720 |
COVER-END Price: $39.58 |
| 24 |
532191995 |
RIVET.POP.1/4X.475 Price: $2.99 |
| 24 |
98-7723 |
HOLDER-BRUSH Price: $52.72 |
| 25 |
532198249 |
ARM.HYD.CLUTCH Price: $6.99 |
| 25 |
98-7725 |
SPRING-BRUSH Price: $4.32 |
| 26 |
532192873 |
SPRING, TRACTION IDLER Price: $2.99 |
| 26 |
98-7724 |
BRUSH Price: $12.41 |
| 27 |
532700279 |
RETAINER CLIP Price: $2.99 |
| 28 |
532436754 |
BRACKET.ANTI-ROTATE.HYDRO.BLAC This part replaces 532407858. Price: $14.99 |
| 29 |
532414771 |
STRAP.TORQUE.HYDRO Price: $11.99 |
| 30 |
532444233 |
BOTTOM PAN Price: $83.99 |
| 31 |
532443384 |
SCREW1032X.500 Price: $2.99 |
| 32 |
532446293 |
ROD.HYDRO CLUTCH This part replaces 532198250. Price: $7.99 |
| 33 |
532428288 |
E-RING.RETAINER.REINFORCED.375 Price: $3.99 |
| 34 |
593337601 |
Screws This part replaces 817060516. Price: $3.99 |
| 35 |
574811301 |
TANK.EXPANSION.350ML 71328 Price: $54.99 |
| 36 |
532445059 |
HOSE EXPANSION TANK Price: $49.99 |
| 37 |
532445152 |
SPRING HOSE CLAMP.750 This part replaces 532445298. Price: $3.99 |
| 38 |
594975601 |
Screws This part replaces 532184471. Price: $1.99 |
