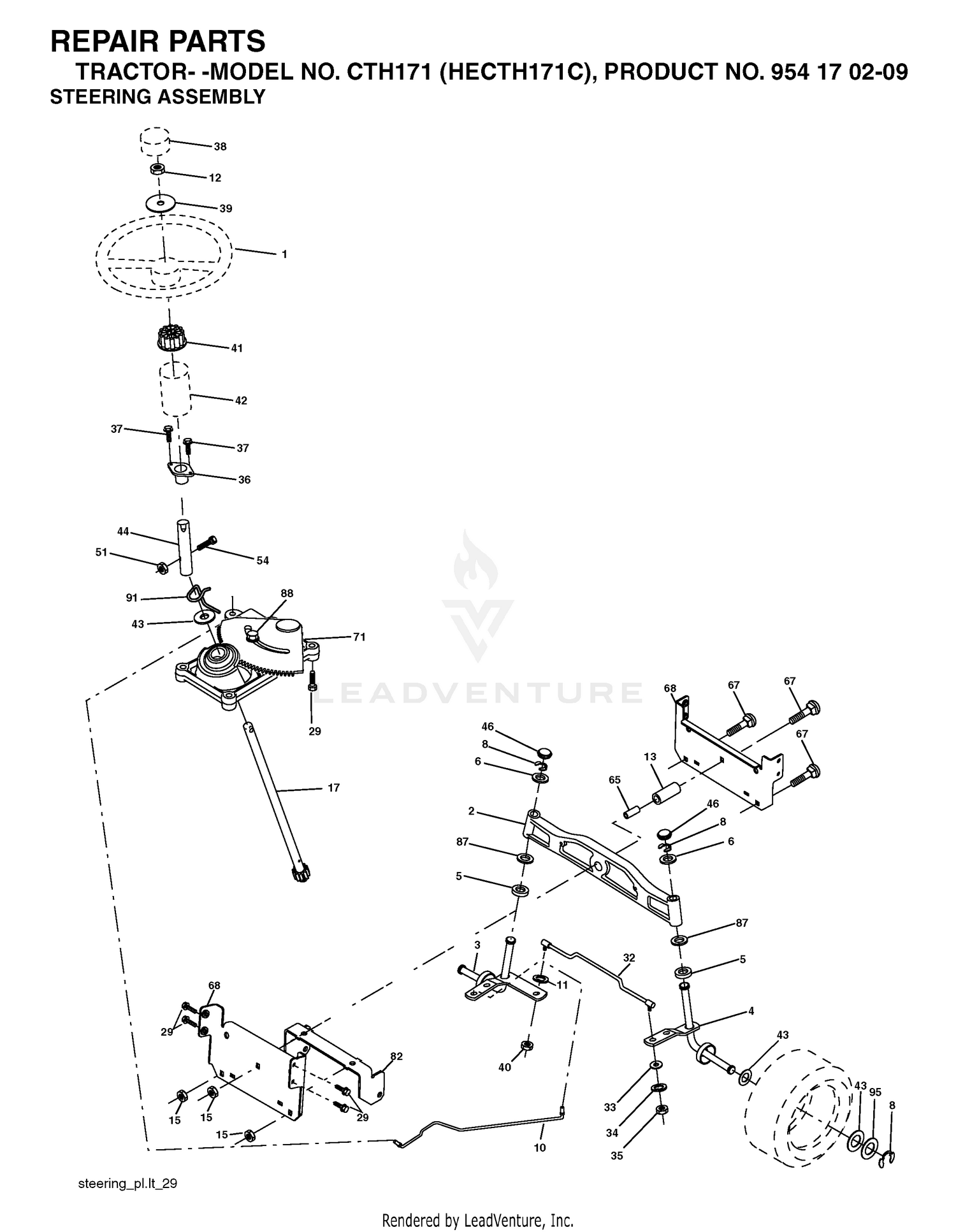

| Ref | Part Number | Description |
|---|
| 1 |
100-4815 |
CABLE-CONTROL, TRACTION Price: $140.70 |
| 1 |
532166627 |
STEERING WHEEL Price: $64.99 |
| 2 |
140-6248 |
DAMPER This part replaces 76-8870. Price: $159.54 |
| 2 |
532193542 |
AXLE.ASM.LT.CAST.LGHTWGHT This part replaces 532184706. Price: $119.99 |
| 3 |
32128-20 |
NUT-HF Price: $0.99 |
| 3 |
596873901 |
KIT SPINDLE ASM.PNT.LH.15 This part replaces 532169840. Price: $14.99 |
| 4 |
322-10 |
SCREW-HH Price: $0.70 |
| 4 |
596873801 |
KIT SPINDLE ASM.PNT.RH.15" This part replaces 532169839. Price: $27.99 |
| 5 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 5 |
532006266 |
WASHER THRUST This part replaces 532124931. Price: $4.99 |
| 6 |
532121748 |
WASHER Price: $3.99 |
| 6 |
93-2092 |
CLAMP-CABLE Price: $3.46 |
| 7 |
2411-41 |
ROD END-BALL JOINT Price: $40.28 |
| 8 |
2412-41 |
CLAMP-R Price: $4.82 |
| 8 |
812000029 |
RING CLIP Price: $3.99 |
| 9 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 10 |
323-6 |
SCREW-HH Price: $0.66 |
| 11 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 11 |
596238701 |
Washers This part replaces 810040600. Price: $3.99 |
| 12 |
140-6255 |
DETENT SLIDER ASM This part replaces 95-8861. Price: $161.79 |
| 12 |
873940800 |
NUT.HEX.1/2-20 Price: $3.99 |
| 13 |
32151-84 |
RING-SHAFT, EXT Price: $1.89 |
| 13 |
532136518 |
TUBE, PIVOT AXLE Price: $7.99 |
| 14 |
41-8440 |
WASHER Price: $1.49 |
| 15 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532145212. Price: $3.99 |
| 15 |
74-9100 |
PAD-PEDAL, FORWARD Price: $27.08 |
| 16 |
140-6263 |
TRACTION PEDAL ASM This part replaces 104-4852-03. Price: $133.16 |
| 17 |
256-243 |
BEARING-FLANGE Price: $9.99 |
| 17 |
532407600 |
KIT.RPLMNT.SHAFT.STRG. This part replaces 532180641. Price: $59.99 |
| 18 |
140-6251 |
REVERSE PEDAL ASM This part replaces 99-3379. Price: $100.06 |
| 19 |
74-9110 |
PAD-PEDAL, REVERSE Price: $13.49 |
| 20 |
75-5470 |
SPACER-BEARING Price: $3.06 |
| 21 |
99-3476 |
SPRING-EXTENSION Price: $7.11 |
| 22 |
251-259 |
BEARING-BALL Price: $13.67 |
| 23 |
322-7 |
SCREW-HH Price: $0.89 |
| 24 |
3296-47 |
NUT-LOCK, NI Price: $3.59 |
| 25 |
32151-3 |
RING-GRIP Price: $6.49 |
| 26 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 27 |
3230-27 |
SCREW-CARR Price: $0.75 |
| 28 |
321-10 |
SCREW-HH Price: $1.29 |
| 29 |
33093-00 |
WASHER-FLAT Price: $0.70 |
| 29 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 30 |
99-3545 |
SPACER Price: $6.45 |
| 31 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 32 |
532170162 |
ROD.ASM.TIE.BALL.JOINT.NOVAN Price: $79.99 |
| 32 |
73-0040 |
WASHER-THRUST Price: $1.29 |
| 33 |
3230-23 |
SCREW-CARR Price: $0.89 |
| 33 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T This part replaces 819111216. Price: $2.99 |
| 34 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 35 |
873540500 |
NUT, CROWNLOCK Price: $3.99 |
| 36 |
532155106 |
KIT.BUSHING.STEERING This part replaces 532155099. Price: $8.99 |
| 37 |
532152927 |
SCREW.TT.#10-32X.5.3/8.FLANGE Price: $3.99 |
| 38 |
532172092 |
INSERT.CAP.STRG.WH (3 2) (L B) This part replaces 532166626. Price: $12.99 |
| 39 |
819182411 |
Washer 9/16 ID x 1 1/2 OD 11 Ga. Zin Price: $4.99 |
| 40 |
873540600 |
NUT CROWNLOCK 3/8-24 Price: $3.99 |
| 41 |
532159945 |
STEERING WHEEL ADAPTOR Price: $6.99 |
| 42 |
532145054 |
STEERING BOOT, GRAY This part replaces 532169634. Price: $11.99 |
| 43 |
532121749 |
WASHER Price: $2.99 |
| 44 |
532407600 |
KIT.RPLMNT.SHAFT.STRG. This part replaces 532180640. Price: $59.99 |
| 46 |
532121232 |
CAP.SPINDLE.BLACK Price: $3.99 |
| 51 |
873540400 |
NUT.CROWNLOCK.1/4-28 Price: $4.99 |
| 54 |
871130420 |
Bolt Hex 1/4-28 unf x 1-1/4 Gr. 8 Price: $4.99 |
| 65 |
532414736 |
SPACER.BRACE.AXLE This part replaces 532160367. Price: $5.99 |
| 67 |
872110618 |
BOLT CARRIAGE This part replaces 872140618. Price: $4.99 |
| 68 |
531167401 |
SERVICE KIT BRACE.AXLE.1 This part replaces 532169827. Price: $19.99 |
| 71 |
531167801 |
SERVICE KIT STEERING ASM This part replaces 532175146. Price: $139.99 |
| 82 |
531170201 |
SERVICE.KIT BRACKET This part replaces 532169835. Price: $19.99 |
| 87 |
532173966 |
WASHER, FLAT .781 X 1 1/2" Price: $4.99 |
| 88 |
532175118 |
BOLT, SHOULDER 7/16-20 Price: $4.99 |
| 91 |
532175553 |
CLIP.STEERING Price: $9.99 |
| 95 |
532188967 |
WASHER.HARDENED Price: $3.99 |
