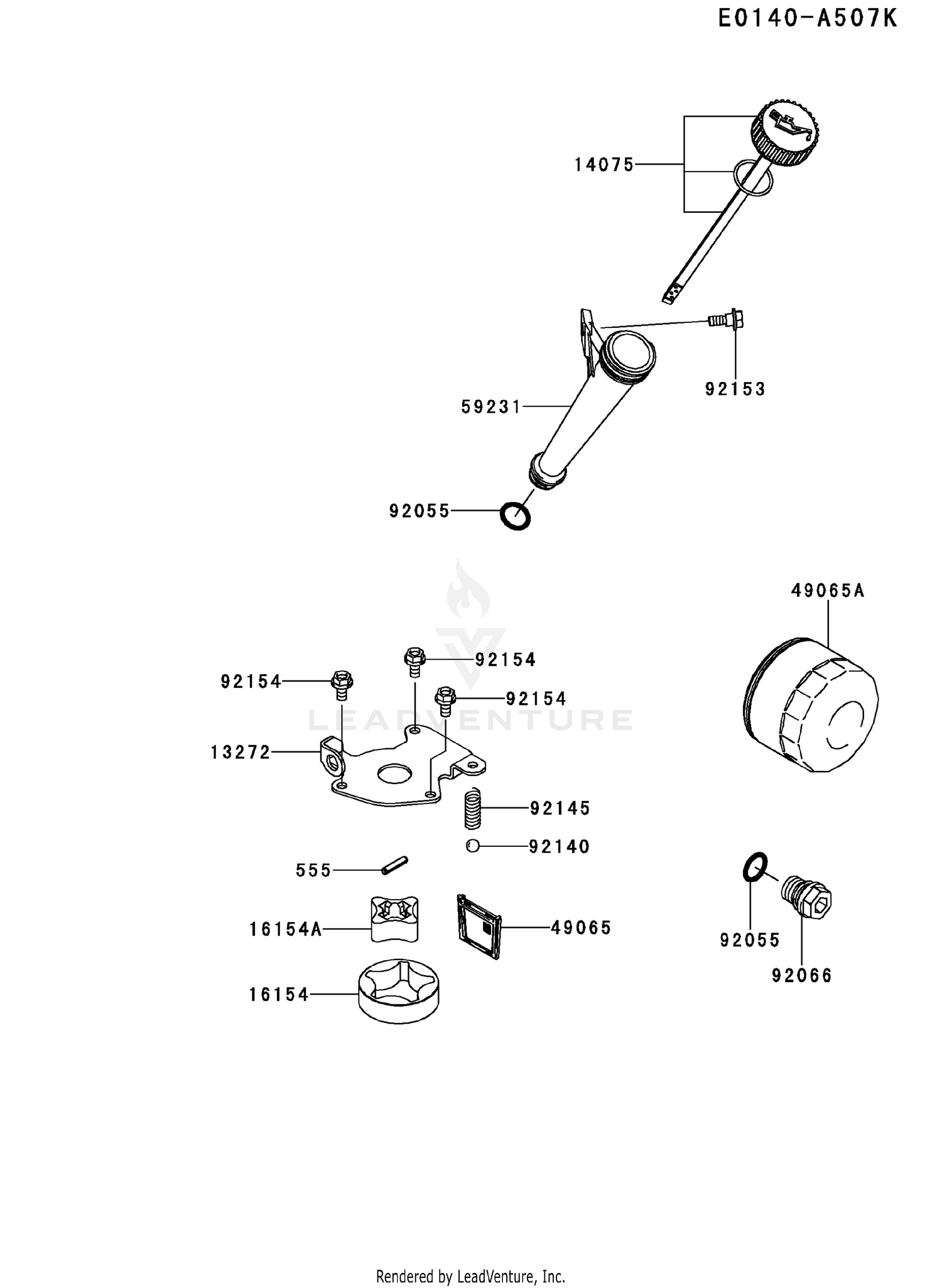

FX730V-AS39 LUBRICATION
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 13272 | KM-13272-7011 | PLATE-OIL PUMP Price: $6.90 |
| 14075 | KM-14075-0707 | OIL CAP W/DIPSTICK Price: $10.09 |
| 16154 | KM-16154-7010 | ROTOR-OIL PMP OUTE Price: $8.35 |
| 16154A | KM-16154-7011 | ROTOR-OIL PMP INNE Price: $7.88 |
| 49065 | KM-49065-0720 | OIL FILTER SCREEN This part replaces KM-49065-7006. Price: $3.30 |
| 49065A | KM-49065-0736 | OIL FILTER This part replaces KM-49065-7007. Price: $19.59 |
| 59231 | KM-59231-0778 | OIL FILLER TUBE This part replaces KM-59231-0746. Price: $7.11 |
| 92055 | KM-92055-0892 | RING-O-15.8X2.4 Price: $0.35 |
| 92066 | KM-92066-0774 | OIL DRAIN PLUG Price: $6.34 |
| 92140 | KM-92140-7003 | BALL Price: $2.51 |
| 92145 | KM-92145-1809 | OIL RELIEF SPRING Price: $0.89 |
| 92153 | KM-92153-7007 | BOLT Price: $3.69 |
| 92154 | KM-92154-2938 | FLANGED BOLT Price: $1.83 |
