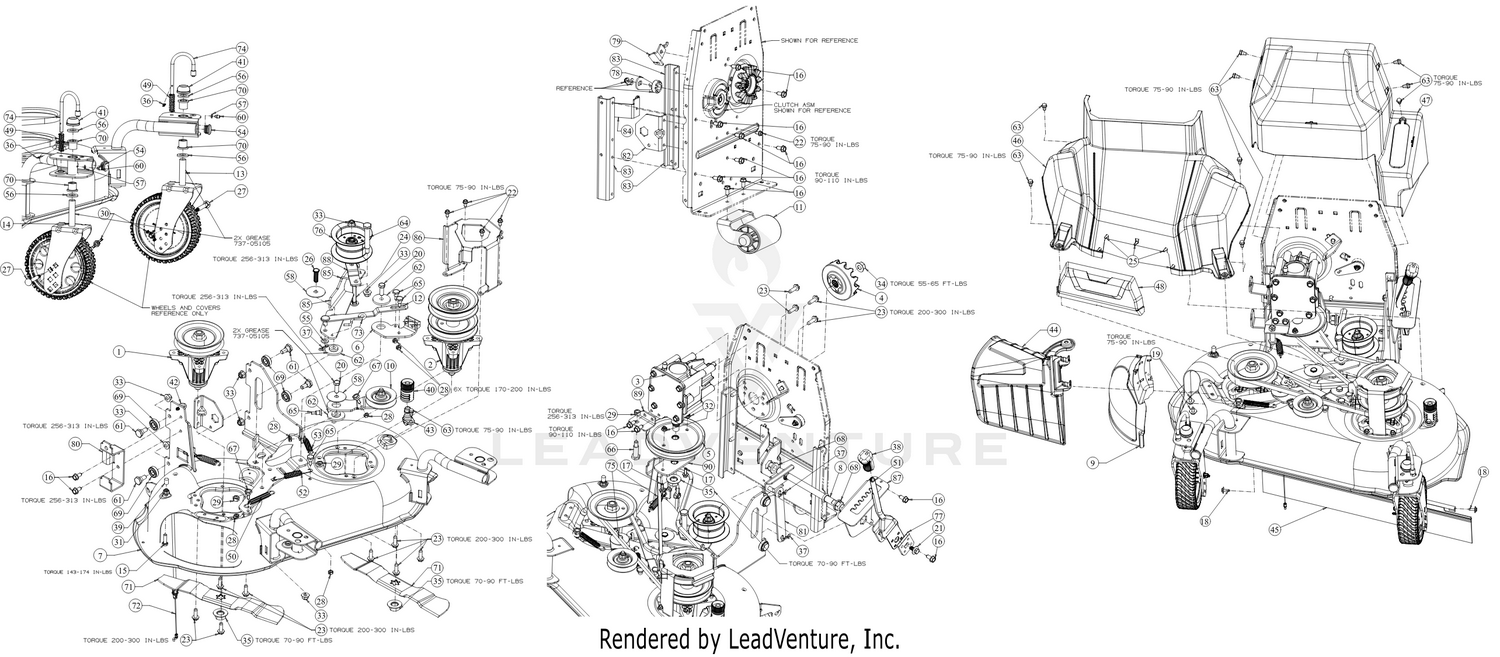

| Ref | Part Number | Description |
|---|
| 1 |
918-07028 |
SPINDLE ASSEMBLY Price: $85.80 |
| 2 |
918-07088A |
SPINDLE ASSEMBLY-W/PULLEY 5.08 DIA This part replaces 618-07088A. Price: $135.40 |
| 3 |
918-07117 |
ANGLE GEARBOX Price: $364.59 |
| 4 |
931-05304 |
DOG CLUTCH ASSEMBLY Price: $73.75 |
| 5 |
956-05005 |
DRIVE PULLEY 6.03 DIA Not Available Price: |
| 6 |
961-05007A |
DECK BRACKET ASSEMBLY Not Available Price: |
| 8 |
687-05111A |
DECK LIFT ASSEMBLY Price: $55.34 |
| 9 |
687-05133C |
MULCH PLUG ASSEMBLY This part replaces 687-05133B. Price: $30.55 |
| 10 |
987-05143 |
PULLEY BRACKET ASSEMBLY Not Available Price: |
| 11 |
987-05144 |
ROLLER BRACKET ASSEMBLY Not Available Price: |
| 12 |
687-05146 |
BRAKE WELD ASSEMBLY Not Available Price: |
| 13 |
687-05216-0638 |
CASTER BRACKET ASSEMBLY (LH) Price: $73.07 |
| 14 |
687-05217-0638 |
CASTER BRACKET ASSEMBLY (RH) Price: $73.07 |
| 15 |
710-0376 |
SCREW 5/16-18 x 1.0 GR5 Price: $3.66 |
| 16 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 17 |
710-04666 |
SCREW 1/4-20 x .75 GR5 Price: $6.04 |
| 18 |
710-04669 |
SCREW 10-16 x .625 Price: $2.98 |
| 19 |
710-05073 |
SCREW 1/4-20 x .50 Price: $3.52 |
| 20 |
710-0514 |
SCREW 3/8-16 x 1 GR5 Price: $3.78 |
| 21 |
710-05339A |
SCREW 5/16-24 x .750 GR5 Price: $3.70 |
| 22 |
710-0599 |
SCREW 1/4-20 X.500 Price: $3.86 |
| 23 |
710-0602 |
SCREW 5/16-18 x 1.00 Price: $4.05 |
| 24 |
710-06072 |
BOLT 3/8-16X2.25 GR5 Price: $5.59 |
| 25 |
710-06147 |
SCREW 1/4-10 x .750 Price: $3.08 |
| 26 |
710-0723 |
SCREW 3/8-16 x 1.25 GR5 Price: $4.04 |
| 27 |
911-1146 |
CASTER AXLE Price: $11.60 |
| 28 |
712-0291 |
Hex Lock Nut, 1/4-20 This part replaces 912-0291. Price: $3.93 |
| 29 |
712-0375 |
HEX NUT Price: $4.02 |
| 30 |
712-0397A |
WING NUT Price: $3.71 |
| 31 |
712-04063 |
FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 32 |
712-04064 |
FLANGE LOCK NUT Price: $3.64 |
| 33 |
712-04065 |
NUT Price: $3.68 |
| 34 |
712-04150 |
NUT Price: $3.74 |
| 35 |
712-05134 |
FLANGE NUT 5/8-18 Price: $5.52 |
| 36 |
714-0104 |
Hairpin Clip This part replaces 914-0104. Price: $3.90 |
| 37 |
714-04040 |
BOW TIE COTTER PIN 1/4-5/16 Price: $1.28 |
| 38 |
720-0311 |
HANDLE GRIP Price: $13.26 |
| 39 |
720-05010 |
VINYL CAP Price: $3.70 |
| 40 |
921-04041 |
WATER NOZZLE Price: $20.19 |
| 41 |
726-0214 |
PUSH CAP Price: $9.11 |
| 42 |
726-3055 |
CABLE RETAINER CLIP Price: $6.06 |
| 43 |
731-07487 |
DECK WASH NOZZLE Price: $3.86 |
| 44 |
731-10510A |
CHUTE DEFLECTOR Price: $32.86 |
| 45 |
731-10534A |
TRAILSHIELD 23.00 Price: $14.74 |
| 46 |
731-10948 |
LOWER COVER DECK 28" Not Available Price: |
| 47 |
731-10949 |
UPPER COVER DECK 28" Not Available Price: |
| 48 |
731-11373 |
LOWER COVER Not Available Price: |
| 49 |
932-0306A |
COMPRESSION SPRING Price: $7.69 |
| 50 |
932-0429A |
EXTENSION SPRING Price: $8.29 |
| 51 |
732-04418C |
DECK HEIGHT LEVER Price: $39.62 |
| 52 |
732-05322 |
EXTENSION SPRING Price: $5.52 |
| 53 |
732-05369 |
EXTENSION SPRING Price: $5.52 |
| 54 |
735-0246A |
END PLUG Price: $5.01 |
| 55 |
736-0185 |
Flat Washer, .375 x .738 x .063 This part replaces 936-0185. Price: $3.43 |
| 56 |
736-0366 |
FLAT WASHER Price: $3.82 |
| 57 |
736-04426 |
FLAT WASHER Price: $5.52 |
| 58 |
736-3040 |
HUB CAP WASHER .406 x 1.92 x .060 Price: $5.52 |
| 59 |
N/A |
GREASE (NOT SERVICEABLE) |
| 60 |
937-3000 |
GREASE FITTING Price: $4.04 |
| 61 |
738-0143 |
SHOULDER SCREW .498 DIA x .340 Price: $3.93 |
| 62 |
738-04162C |
SHOULDER SPACER Price: $12.76 |
| 63 |
738-04502 |
SHOULDER SCREW 1/4-20 x .50 Price: $3.75 |
| 64 |
938-0481A |
SHOULDER SCREW Price: $6.30 |
| 65 |
738-0974 |
Shoulder Screw .375 X .380 X 1/4-20 This part replaces 938-0974. Price: $9.59 |
| 66 |
738-1014 |
SHOULDER SCREW .50 Price: $3.58 |
| 67 |
738-1023A |
SHOULDER SCREW .37 Price: $3.56 |
| 68 |
941-0225 |
FLANGE BEARING Price: $6.55 |
| 69 |
741-04430A |
BALL BEARING Price: $5.52 |
| 70 |
741-0685 |
BEARING:FLANGE .631 ID Price: $3.90 |
| 72 |
946-05176A |
Clutch Cable This part replaces 746-05176A. Price: $36.90 |
| 73 |
747-06506 |
ROD HOOK Price: $5.52 |
| 74 |
747-0924 |
LOCK PIN Price: $18.29 |
| 75 |
954-05103 |
DECK BELT A SEC x 43.10 Price: $33.66 |
| 76 |
756-05117 |
IDLER PULLEY Price: $40.57 |
| 77 |
787-06323-0637 |
PIVOT LEVER BRACKET (POWDER BLACK) This part replaces 787-01521-0637. Price: $7.96 |
| 78 |
787-03175B |
DECK CABLE BRACKET Not Available Price: |
| 79 |
787-03181 |
DECK CABLE BRACKET Not Available Price: |
| 80 |
787-03232B-0637 |
GRASSBAG BRACKET (POWDER BLACK) Not Available Price: |
| 81 |
787-03249A-0637 |
LIFT LINK BRACKET(POWDER BLACK) Not Available Price: |
| 82 |
787-03252A-0637 |
LIFT BRACKET (POWDER BLACK) Not Available Price: |
| 83 |
787-03338 |
BRACKET Price: $28.57 |
| 84 |
787-03382B-0637 |
KEEPER BRACKET (POWDER BLACK) Not Available Price: |
| 85 |
787-03422 |
DRIVE ENGAGEMENT BRACKET Not Available Price: |
| 86 |
787-03424-0637 |
BELT KEEPER BRACKET Price: $46.09 |
| 87 |
787-03425-0638 |
HEIGHT ADJUSTMENT BRACKET Not Available Price: |
| 88 |
787-03428A-0637 |
KEEPER BRACKET (POWDER BLACK) Not Available Price: |
| 89 |
787-03429A-0637 |
KEEPER BRACKET (POWDER BLACK) Not Available Price: |
