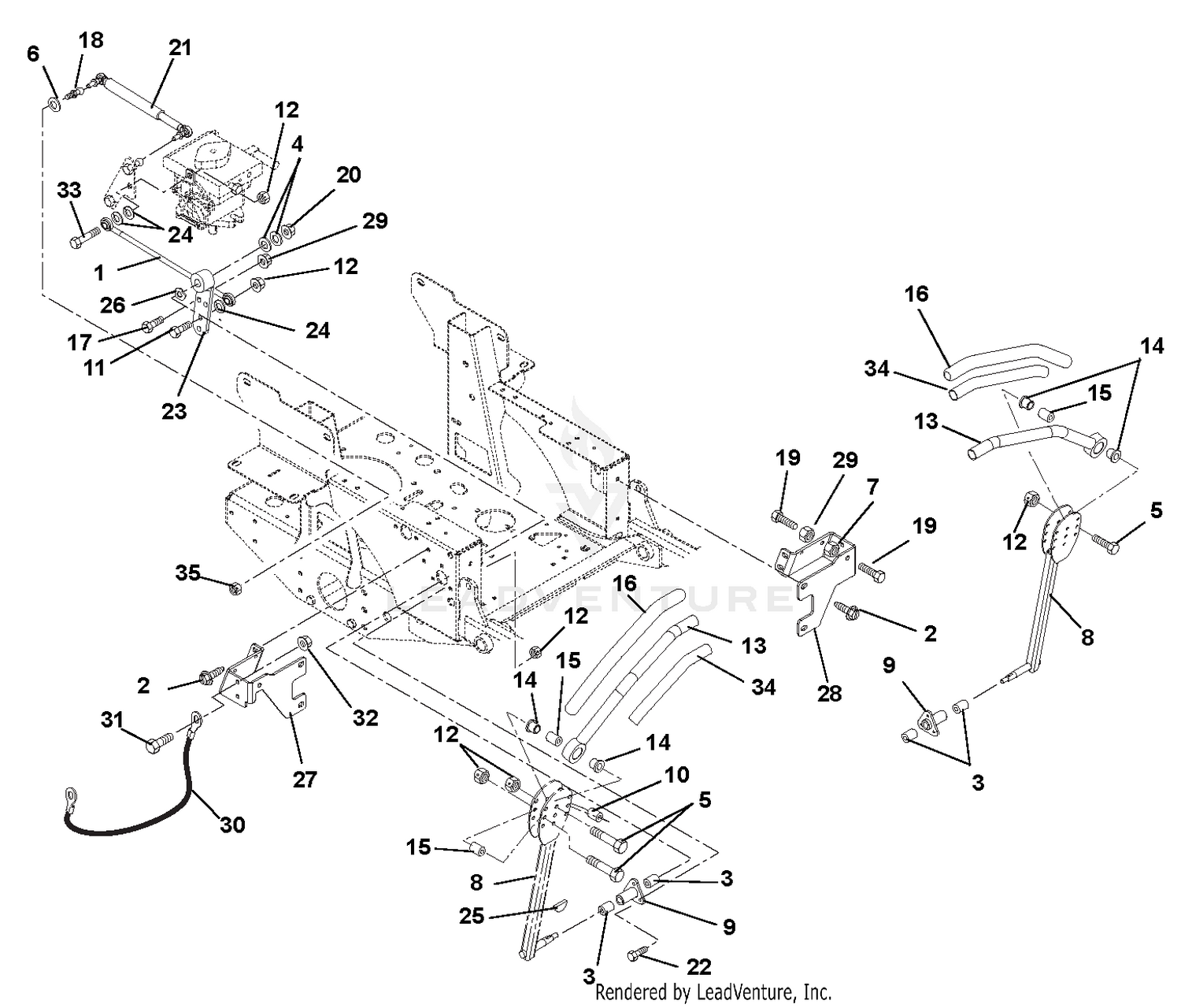

| Ref | Part Number | Description |
|---|
| 1 |
09285300 |
ASSY, STEERING ROD Price: $84.95 |
| 2 |
07400129 |
SCR,TAP .375-16X.75 HWH TR ZCC This part replaces 07415400. Price: $1.45 |
| 3 |
05436800 |
BSHG .625X.750X.500 Price: $8.95 |
| 4 |
06401013 |
WSHR-FLT .406X.812X.065 ZCC This part replaces 06436200. Price: $0.95 |
| 5 |
05901804 |
BLT, HEX .31-18X1.75 G5 ZCC This part replaces 05957400. Price: $2.95 |
| 6 |
06401017 |
WSHR,FLT .344X.688X.065 ZCC This part replaces 06437200. Price: $0.45 |
| 7 |
06500910 |
NUT-JAM .375-16 G2 ZCC This part replaces 06535900. Price: $0.95 |
| 8 |
09285751 |
CONTROL ARM - BLACK Price: $197.95 |
| 9 |
09294600 |
BUSHING, FLANGE Price: $30.95 |
| 10 |
05500932 |
BSHG, ECCENTRIC .328X.750X.970 Price: $1.95 |
| 11 |
05901803 |
BLT, HEX .31-18X1.25 G5 ZCC This part replaces 05947500. Price: $2.45 |
| 12 |
06500809 |
NUT,NYL-FLG .31-18 GF ZCC This part replaces 06545400. Price: $1.45 |
| 13 |
09235500 |
HANDLE WLDMT LH Price: $81.95 |
| 14 |
05501517 |
BSHG, FLANGED .762 X 1.48 X .44 IGLIDER This part replaces 05525200. Price: $2.45 |
| 15 |
09235400 |
SPACER .328 X .76 X 1.01 Price: $18.45 |
| 16 |
03929100 |
GRIP, HANDLEBAR 1.00X1.38X11.3 Price: $14.45 |
| 17 |
05901612 |
BLT, HEX .38-16X1.75F G5 ZCC This part replaces 05974000. Price: $2.95 |
| 18 |
04091700 |
STUD-BALL Price: $3.45 |
| 19 |
05901724 |
BLT- HEX .38-16X1.25 G5 ZCC This part replaces 05958000. Price: $1.45 |
| 20 |
06500726 |
NUT,NYL-FLG .38-16 GF ZCC This part replaces 06545500. Price: $1.45 |
| 21 |
03914100 |
DAMPER, CONTROL Price: $41.95 |
| 22 |
05901701 |
BLT-HEX .31-18X1.00 G5 ZCC This part replaces 05946900. Price: $1.45 |
| 23 |
00163700 |
ARM, PIVOT Price: $23.45 |
| 24 |
06300119 |
WSHR-LK-REG .312X.078 ZCC This part replaces 06308600. Price: $0.95 |
| 25 |
06608400 |
KEY-WDRF .13X.63 HRD#5 Price: $2.45 |
| 26 |
03704900 |
WAVE WASHER .640X.875X.125FH Price: $1.95 |
| 27 |
09287353 |
STOP, STEERING RH Price: $50.95 |
| 28 |
09287453 |
STOP, STEERING LH Price: $37.45 |
| 29 |
06500914 |
NUT-LK-CTR-JAM .375-16 GB ZCC This part replaces 06537200. Price: $0.95 |
| 30 |
06927100 |
CBL,HOOD Price: $13.45 |
| 31 |
05901716 |
BLT- HEX .25-20X.75 G5 ZCC This part replaces 05946800. Price: $0.95 |
| 32 |
06500813 |
NUT,NYL-FLG .25-20 GF ZCC This part replaces 06500012. Price: $1.45 |
| 33 |
05901710 |
BLT, HEX .31-18X1.50 G5 ZCC This part replaces 05952400. Price: $1.45 |
| 34 |
03988300 |
TUBE, .88ID X 1.00OD X 10.25 Price: $13.45 |
| 09235600 |
WLDMT, |
RH HANDLE Price: $73.45 09235600 |
