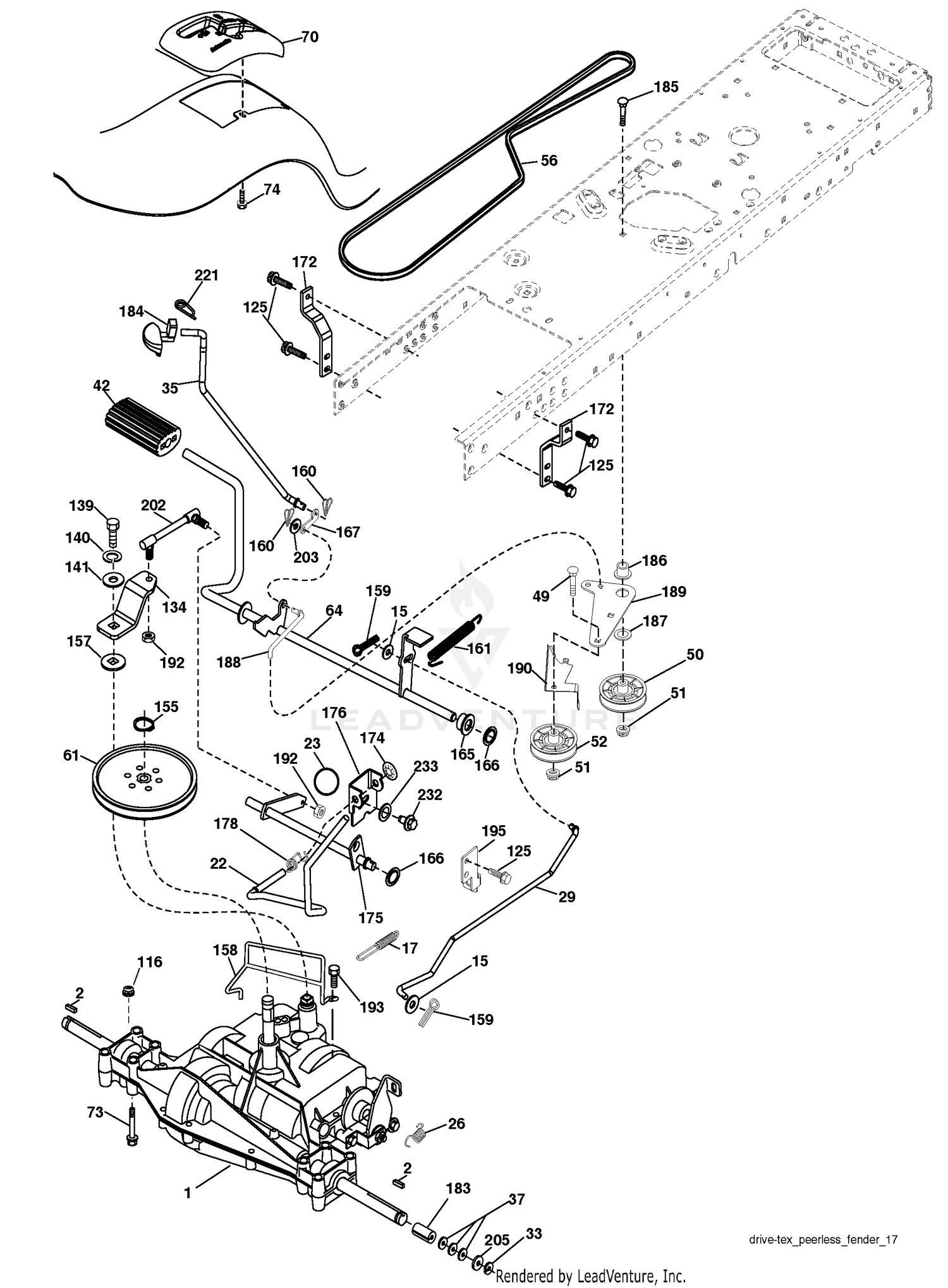

Drive

Drive

Parts (87)

RefPart NumberDescription
1 3253-4 WASHER-LOCK Price: $0.25
2 123583X Key Square Price: Call Us
2 HY3225 DISCONTINUED This part replaces 322-5. Price: Call Us
3 3256-23 WASHER-PLAIN Price: $0.28
4 98-9317-03 DISCONTINUED Price: Call Us
5 93-0005 STRIP-FOAM, RADIATOR TOP Price: $19.96
6 98-4507 RADIATOR Price: $1,279.00
7 66-3240 CAP-RADIATOR Price: $25.30
8 92-2379 CLAMP-HOSE Price: $0.34
9 110-4108 HOSE-FUEL This part replaces 75-2851. Price: $31.16
10 3296-42 NUT-LOCK, NI Price: $0.28
11 98-4571 DISCONTINUED Price: Call Us
12 3290-55 RIVET-POP Price: $0.25
13 98-9335 PLATE-WARNING, FAN Price: $6.17
14 3256-22 WASHER-FLAT Price: $0.39
15 19131316 Washer 13/32 x 13/16 x 16 Ga. Price: Call Us
15 321-4 SCREW-HH Price: $0.99
16 2412-34 CLAMP-HOSE Price: $2.14
17 197297 Spring, Brake Price: Call Us
17 98-4511 HOSE-RADIATOR, UPPER Price: $58.55
18 98-4508 DISCONTINUED Price: Call Us
19 66-3180 TUBE-VENT Price: $18.60
20 32128-20 NUT-HF Price: $0.99
21 2412-103 CLAMP Price: $2.51
22 197660 Rod Shift Price: Call Us
22 304-46 DRAINCOCK Price: $7.55
23 2412-98 CLAMP-HOSE Price: $1.39
23 409154X421 Knob Price: Call Us
25 117-3276 DECAL-DANGER This part replaces 106-5976. Price: $10.70
26 197455 Spring Brake RTN Price: Call Us
26 3290-379 TIE-CABLE Price: $0.31
27 3234-5 SCREW-HHF Price: $0.42
28 99-6991 LH COOLER MOUNT ASM Price: $106.70
29 197267 Rod, Brake Price: Call Us
29 99-6994 RH COOLER MOUNT ASM Price: $106.70
30 104-1448 HOOP-DRIVELINE Price: $23.07
31 3256-55 WASHER-FLAT Price: $3.69
33 12000001 Ring E Price: Call Us
35 197722 Rod, Brake, Park Price: Call Us
37 121749X Washer 25/32 x 1-1/4 x 16 Ga. Price: Call Us
42 8883R Cover, Foot Pedal Price: Call Us
49 72110614 Bolt Price: Call Us
50 194327 Pulley Idler Flat Price: Call Us
51 73900600 Lock Nut 3/8-16 Price: Call Us
52 194326 Idler V-Groove Price: Call Us
56 194346 V-Belt, Drive Price: Call Us
61 123666X Pulley Transaxle Price: Call Us
64 196200 Shaft Asm. Pedal Brake Control Price: Call Us
70 193225X428 Console Price: Call Us
73 74490544 Bolt 5/16-18 Gr. 5 Price: Call Us
74 142432 Screw 1/4 x 1/2 Price: Call Us
116 73900500 Nut Lock Hex Flange 5/16-18 Price: Call Us
125 17000512 Screw 5/16-18 x 3/4 Price: Call Us
134 197857 Arm Shift Price: Call Us
139 74550412 Bolt 1/4-20 unf Gr. 8 w/Patch Price: Call Us
140 10040400 Washer Lock Hvy Helical 1/4 Price: Call Us
141 19091210 Washer 9/32 x 3/4 x 10 Ga. Price: Call Us
155 12000028 Ring Retainer Price: Call Us
157 105701X Washer Plate Shf Price: Call Us
158 194352 Keeper T/A Price: Call Us
159 76020412 Pin Cotter 1/8 x 3/4 Price: Call Us
160 169484 Retainer Clip Price: Call Us
161 105709X Spring, Return, Clutch Price: Call Us
165 196212 Busing Shaft Brake Hand Control Price: Call Us
166 197290 Nut Push .625 Price: Call Us
167 405257 Latch Brake Parking Price: Call Us
172 197657 Strap Torque LH Price: Call Us
174 197289 Nut Push Price: Call Us
175 198981 Shaft Asm Shift Price: Call Us
176 196214 Arm Clevis Rod Shift Price: Call Us
178 197456 Spring Shift Price: Call Us
183 137057 Spacer, Axle Price: Call Us
184 198403X505 Handle Parking Brake Price: Call Us
185 72110622 Bolt Price: Call Us
186 194321 Spacer Retainer Price: Call Us
187 19133210 Washer Price: Call Us
188 194323 Link Clutch Ground Drive Price: Call Us
189 194317 Bellcrank Ground Drive Price: Call Us
190 194318 Keeper Bellcrank Ground Drive Price: Call Us
192 150360 Nut Lock Center 1/4-28 Price: Call Us
193 17060512 Screw 5/16-18 x 3/4 Price: Call Us
195 197332 Bracket Brake Rod Price: Call Us
202 197859 Link Shift Price: Call Us
203 19111116 Washer 11/32 x 11/16 x 16 Ga. Price: Call Us
205 121748X Washer 25/32 x 1-5/8 x 16 Ga. Price: Call Us
221 403187 Retainer Spring Clip Handle Price: Call Us
232 74780716 Bolt 7/16-14 x 1 Gr. 5 Price: Call Us
