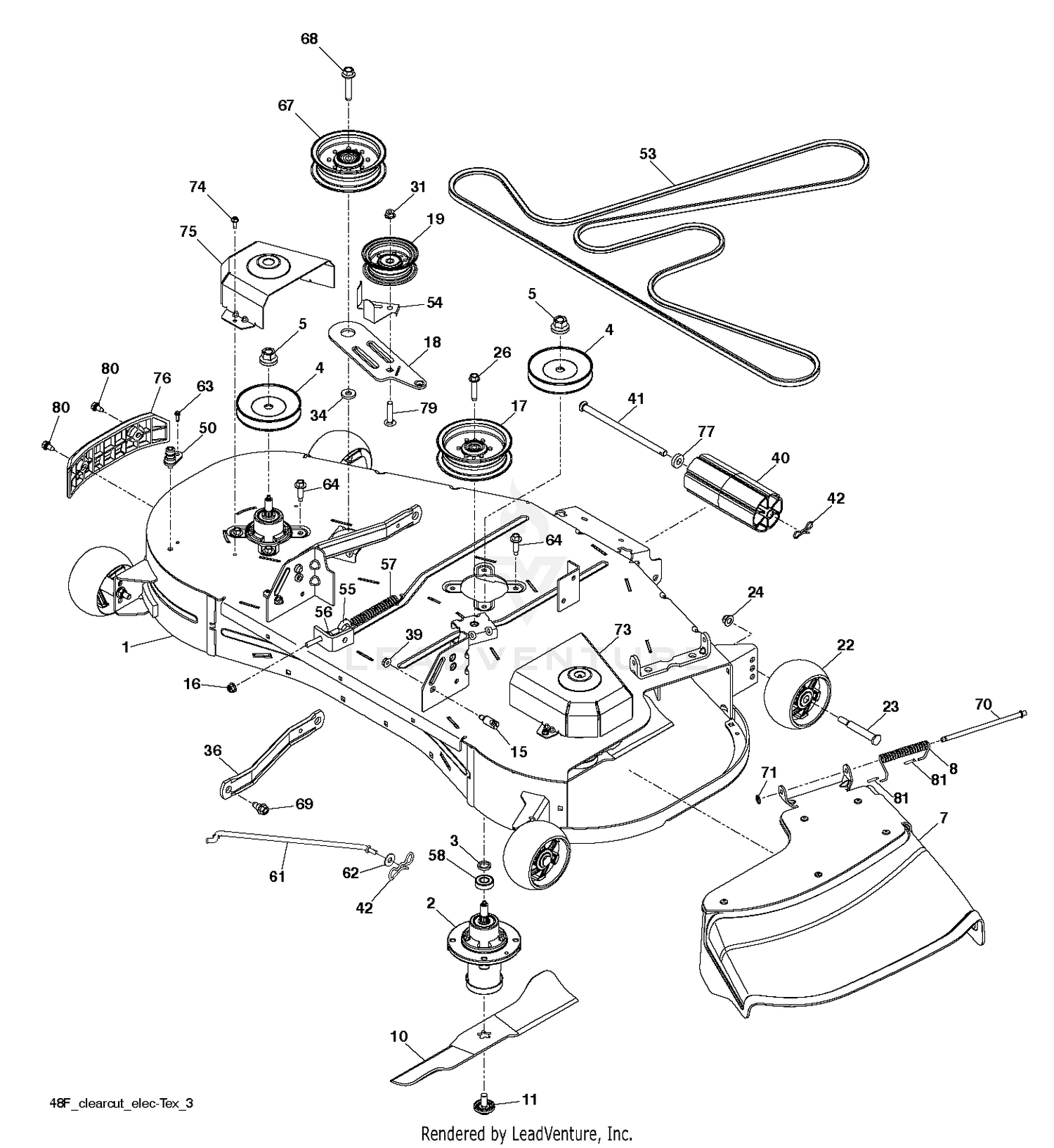

| Ref | Part Number | Description |
|---|
| 1 |
583810003 |
DECK.SVCX.48.CC.DCKSHELL.AU. Price: $799.99 |
| 1 |
93-9404 |
DECAL-ONLY, COOLANT Price: $17.21 |
| 2 |
539112170 |
MANDREL.DECK.ASSEMBLY Price: $69.99 |
| 2 |
92-5655 |
TUBE-CANOPY Price: $15.47 |
| 3 |
532187690 |
WASHER.SPACER.MANDREL Price: $3.99 |
| 3 |
58-3930 |
BUSHING-OILITE Price: $15.24 |
| 4 |
532173434 |
MANDREL PULLEY Price: $14.99 |
| 4 |
58-5330 |
SPACER-HINGE, CANOPY Price: $21.23 |
| 5 |
58-1970-01 |
PLATE-HINGE, LEFT Price: $199.89 |
| 5 |
596134801 |
Nuts This part replaces 532400234. Price: $1.00 |
| 6 |
92-6086 |
REAR SCREEN ASM Price: $2,609.76 |
| 7 |
593649703 |
Deflectors This part replaces 588980703. Price: $99.99 |
| 7 |
92-5253 |
STRIP-SEALING Price: $59.20 |
| 8 |
3290-355 |
PIN-HAIR Price: $2.09 |
| 8 |
587354701 |
SPRING.42.FCS.DEFLECTOR Price: $5.99 |
| 9 |
58-3910 |
PIN-HINGE, CANOPY Price: $70.69 |
| 10 |
588811002 |
BLADE.BAGGER.RES.CLRCT.48".BLK Price: $29.99 |
| 10 |
77-3620 |
KNOB-RETAINER Price: $15.13 |
| 11 |
532193003 |
BOLT.WASHER.ASM.7/16-2 Price: $6.99 |
| 11 |
93-6680 |
DECAL-DIESEL Price: $19.31 |
| 12 |
86-6130 |
BALL-STUD Price: $7.46 |
| 13 |
3234-13 |
SCREW-HHF Price: $0.77 |
| 14 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 15 |
593824001 |
STUD.W/"D"ANTI-ROTATION This part replaces 532195161. Price: $3.99 |
| 15 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 16 |
3296-56 |
NUT-LOCK, NI Price: $2.09 |
| 16 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST This part replaces 539112899. Price: $5.99 |
| 17 |
532196104 |
PULLEY.IDLER.MWR.STATI.LH Price: $37.99 |
| 17 |
88-6760 |
SPRING-GAS Price: $143.68 |
| 18 |
529470302 |
IDLER ARM This part replaces 588812202. Price: $6.99 |
| 18 |
92-5270-01 |
Baffle-Lower Body Price: Call Us |
| 19 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 19 |
532177968 |
PULLEY.IDLER.FLAT This part replaces 532193197. Price: $27.99 |
| 20 |
3250-25 |
SCREW-PPH Price: $0.23 |
| 21 |
3253-2 |
WASHER-LOCK Price: $0.25 |
| 22 |
58-5380 |
LATCH-DRAW Price: $43.60 |
| 22 |
589527301 |
WHEEL.GAUGE.RALLY Price: $8.99 |
| 23 |
58-7070-03 |
SPACER-LATCH, RH Price: $17.58 |
| 23 |
596434404 |
Bolts This part replaces 532193406. Price: $4.99 |
| 24 |
322-3 |
SCREW-HH Price: $0.79 |
| 24 |
521996502 |
GSPW Nuts This part replaces 521996501. Price: $2.99 |
| 25 |
3250-31 |
SCREW-PPH Price: $0.25 |
| 26 |
588438301 |
SCREW.7/16-14 X 2.125.WASHER Price: $5.99 |
| 26 |
68-6040 |
BRACKET Price: $13.03 |
| 27 |
237-141 |
GROMMET-RUBBER Price: $2.39 |
| 28 |
3256-51 |
WASHER-FLAT Price: $0.19 |
| 29 |
3296-27 |
NUT-LOCK, NI Price: $0.27 |
| 30 |
92-5681 |
FOAM-HOOD, LH Price: $187.22 |
| 31 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 31 |
98-3822 |
DECAL Price: $78.44 |
| 32 |
92-4713 |
CANOPY-FRONT Price: $3,149.95 |
| 33 |
92-5673-03 |
SUPPORT-FOAM, FRONT Price: $46.11 |
| 34 |
532178515 |
WASHER Price: $5.99 |
| 34 |
92-5679 |
FOAM-HOOD, FRONT Price: $166.50 |
| 35 |
92-5672-03 |
SUPPORT-FOAM, CANOPY Price: $198.05 |
| 36 |
536050602 |
LINK FIXED MOWER DRAWBAR BLACK This part replaces 587140502. Price: $5.99 |
| 36 |
92-5678 |
FOAM-HOOD, TOP Price: $239.26 |
| 37 |
33024-00 |
NUT-LOCK, NI This part replaces 48-9510. Price: $0.75 |
| 38 |
92-5652-03 |
BRACKET Price: $10.46 |
| 39 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 39 |
92-6060 |
STRIP-SEALING Price: $59.20 |
| 40 |
33114-025 |
SCREW-HH Price: $0.70 |
| 40 |
532176066 |
NOSE ROLLER 48" Price: $11.99 |
| 41 |
3253-4 |
WASHER-LOCK This part replaces 42-9850. Price: $0.25 |
| 42 |
33094-00 |
WASHER-PLAIN Price: $0.25 |
| 42 |
532194208 |
PIN.COTTER.5/16.BOW TI Price: $2.99 |
| 43 |
94-8241 |
CANOPY-CENTER Price: $1,863.87 |
| 44 |
322-4 |
SCREW-HH Price: $0.35 |
| 45 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 46 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 47 |
321-2 |
SCREW-HH Price: $2.79 |
| 48 |
32122-42 |
SCREW Price: $1.69 |
| 49 |
94-8226-03 |
BRACKET-CLEANER, AIR Price: $55.22 |
| 50 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 50 |
532415598 |
PORT.WASHOUT Price: $6.99 |
| 51 |
321-3 |
SCREW-HH Price: $0.28 |
| 52 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 53 |
599275701 |
Belts This part replaces 588814301. Price: $54.99 |
| 54 |
531165901 |
SERVICE KIT GUARD This part replaces 532141043. Price: $4.99 |
| 54 |
98-1293-01 |
Bracket Price: Call Us |
| 55 |
596240801 |
GSPW Bolts This part replaces 539115574. Price: $3.99 |
| 56 |
596039201 |
GSPW Hardware This part replaces 539990585. Price: $2.99 |
| 57 |
596645601 |
Springs This part replaces 539106850. Price: $8.99 |
| 58 |
532110485 |
BEARING Price: $11.99 |
| 61 |
583568101 |
ROD.SWAY.97&107.CRDI&II This part replaces 532443237. Price: $17.99 |
| 62 |
596134901 |
GSPH This part replaces 819131312. Price: $2.99 |
| 64 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 Price: $3.99 |
| 67 |
532196106 |
PULLEY.IDLER.2006 Price: $34.99 |
| 68 |
599972501 |
BOLT This part replaces 817490628. Price: $2.99 |
| 69 |
532196539 |
BOLT.SHOULDER Price: $5.99 |
| 70 |
595297001 |
Rods This part replaces 532131491. Price: $4.99 |
| 71 |
532110452 |
NUT PUSH M Price: $2.99 |
| 73 |
588812402 |
COVER.PNT.MANDREL.RH.GREY Price: $34.99 |
| 74 |
532137729 |
SCREW.1/4-20X5/8 Price: $3.99 |
| 75 |
588813102 |
COVER.PNT.MANDREL.LH.TR.GREY Price: $17.99 |
| 76 |
582541103 |
BUMPER 48 CLEARCUT TRIM SIDE A Price: $11.99 |
| 77 |
582360501 |
BUSHING.NOSE.ROLLER Price: $3.99 |
| 79 |
596136201 |
Bolts This part replaces 872110614. Price: $3.99 |
| 80 |
532170165 |
SHOULDER BOLT 5/16-18TT Price: $3.99 |
| 81 |
532105304 |
CAP-SLEEVE LT Price: $3.99 |
