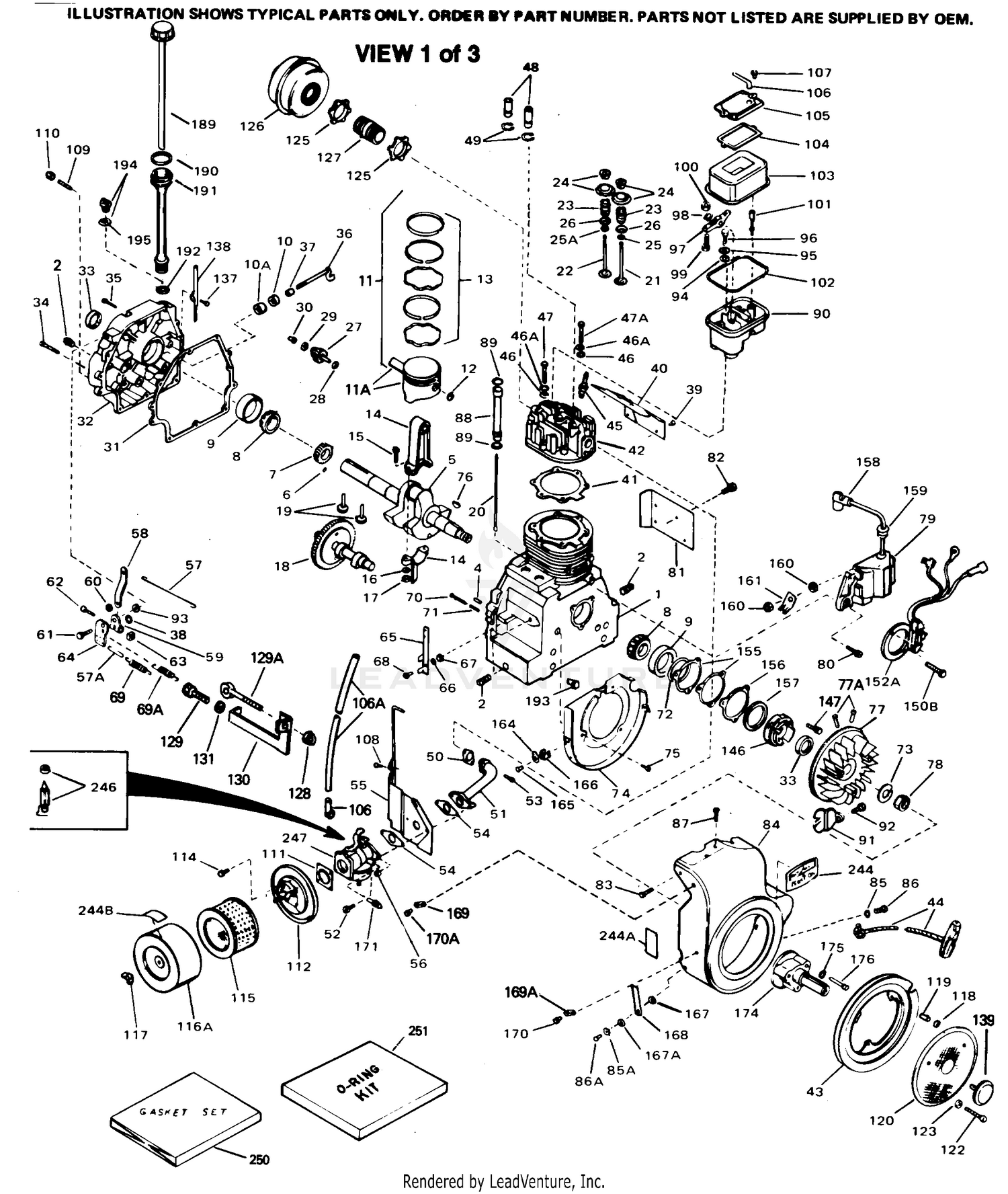

| Ref | Part Number | Description |
|---|
| 1 |
34648A |
CYLINDER Price: Call Us |
| 2 |
28483 |
PIPE PLUG Price: $1.26 |
| 2 |
28534 |
PIPE PLUG This part replaces 9556. Price: $1.22 |
| 2 |
31927 |
PIPE PLUG Price: $1.26 |
| 4 |
27652 |
PIN Price: $1.58 |
| 5 |
33390B |
CRANKSHAFT Price: $305.12 |
| 6 |
29783 |
GROOVE PIN Price: $1.26 |
| 7 |
34692 |
GEAR Price: $18.40 |
| 8 |
31932 |
BEARING Price: $43.55 |
| 9 |
31928 |
BEARING CUP Price: $16.13 |
| 11 |
34624 |
PISTON ASSY STD Price: Call Us |
| 11 |
34625 |
PISTON ASSY 010 Price: Call Us |
| 11 |
34626 |
PISTON ASSY 020 Price: Call Us |
| 11A |
34629 |
PISTON & PIN ST Price: $105.18 |
| 11A |
34630 |
PISTON & PIN 10 Price: Call Us |
| 11A |
34631 |
PISTON & PIN 20 Price: Call Us |
| 12 |
34634 |
RET RING Price: $1.08 |
| 13 |
34635 |
RING SET STD Price: Call Us |
| 13 |
34636 |
RING SET 010 Price: $40.43 |
| 13 |
34637 |
RING SET 020 Price: Call Us |
| 14 |
34640 |
CONN ROD Price: $74.55 |
| 14 |
35243 |
CONN ROD Price: $126.94 |
| 14 |
35244 |
CONN ROD Price: $141.64 |
| 15 |
32077 |
SCREW Price: $2.62 |
| 16 |
26073 |
WASHER Price: Call Us |
| 17 |
28264 |
NUT Price: $2.62 |
| 18 |
34752 |
CAMSHAFT Price: $106.62 |
| 19 |
33472 |
VALVE LIFTER Price: $10.22 |
| 20 |
33471 |
PUSH ROD Price: $9.22 |
| 21 |
34643 |
INT VALVE ST Price: $38.42 |
| 21 |
34644 |
INT VALVE OS Price: $42.62 |
| 22 |
33506 |
EXH VALVE STD Price: $63.97 |
| 22 |
33646 |
EX VALVE OS Price: Call Us |
| 23 |
33507 |
VALVE SPRING Price: $2.62 |
| 24 |
33508 |
VALVE RET Price: $6.54 |
| 25 |
33509 |
O RING Price: $2.62 |
| 25A |
34410 |
O RING Price: $2.62 |
| 26 |
33510 |
VALVE CAP Price: $1.26 |
| 27 |
34751 |
GEAR & SHAFT Price: $58.53 |
| 28 |
650745 |
FLAT WASHER Price: $1.25 |
| 29 |
651080 |
WASHER This part replaces 35479. Price: $1.24 |
| 30 |
31948A |
GOV SPOOL This part replaces 31948. Price: $9.22 |
| 31 |
31956B |
GASKET Price: $7.00 |
| 32 |
32580A |
CYL COVER Price: Call Us |
| 33 |
31950 |
OIL SEAL Price: $14.00 |
| 34 |
650451 |
SCREW Price: $1.25 |
| 35 |
650588 |
SCREW Price: $1.25 |
| 36 |
32425 |
GOVERNOR ROD--NLA Price: Call Us |
| 37 |
32426 |
SPACER Price: $1.23 |
| 38 |
29193 |
RET RING Price: $1.26 |
| 39 |
650736 |
SCREW Price: $1.20 |
| 40 |
33495 |
COVER Price: $5.21 |
| 41 |
34641A |
GASKET Price: $11.58 |
| 42 |
34771 |
CYL HEAD Price: $182.23 |
| 43 |
31980 |
PULLEY Price: $27.32 |
| 44 |
32046 |
STARTER ROPE Price: $7.26 |
| 45 |
34645 |
SPARK PLUG Price: $2.34 |
| 46 |
730324 |
WASHER KIT This part replaces 650690. Price: $6.86 |
| 46A |
650691 |
WASHER Price: $1.25 |
| 47 |
650692 |
SCREW--NLA Price: Call Us |
| 47A |
650746 |
SCREW Price: $1.25 |
| 48 |
730218 |
VALVE GUIDE Price: $17.26 |
| 49 |
792035 |
Ring, Retaining Price: Call Us |
| 50 |
33515A |
GASKET Price: $1.26 |
| 51 |
33475 |
INTAKE PIPE Price: $37.10 |
| 52 |
650378 |
SCREW Price: $1.25 |
| 53 |
792028 |
Screw, 5/16-18 x 7/8" Price: Call Us |
| 54 |
33476A |
GASKET Price: $1.26 |
| 55 |
33477A |
BAFFLE Price: $22.20 |
| 56 |
792075 |
Nut, Lock 5/16-24 Used in early produ ction Price: Call Us |
| 57 |
33478 |
GOV LINK Price: $1.26 |
| 58 |
31963 |
GOV LEVER Price: $1.26 |
| 59 |
31964 |
CLAMP Price: $2.62 |
| 60 |
650518 |
WASHER Price: $1.25 |
| 61 |
30312 |
SCREW Price: $1.19 |
| 62 |
650544 |
SCREW Price: $1.20 |
| 63 |
7975 |
NUT Price: $1.23 |
| 64 |
31965 |
PLATE Price: $2.62 |
| 65 |
31984A |
CONT LEVER Price: $13.55 |
| 66 |
28558 |
WASHER Price: $1.26 |
| 67 |
31966 |
BUSHING Price: $2.62 |
| 68 |
650597 |
SCREW Price: $1.20 |
| 69 |
31967 |
GOV SPRING Price: $2.62 |
| 70 |
650591 |
SCREW Price: $1.20 |
| 71 |
33099 |
SPRING Price: $1.26 |
| 72 |
32599 |
O RING Price: $6.00 |
| 73 |
651082 |
WASHER This part replaces 650666. Price: $3.86 |
| 74 |
32579 |
BAFFLE Price: $15.22 |
| 75 |
650561 |
SCREW Price: $1.25 |
| 76 |
650592 |
KEY Price: $1.17 |
| 77 |
610967 |
FLYWHEEL Price: $261.33 |
| 77A |
730201 |
KIT Price: $5.83 |
| 78 |
650594 |
NUT Price: $2.60 |
| 79 |
610906 |
MAGNETO-Discontinued Price: Call Us |
| 80 |
650661 |
SCREW Price: $1.25 |
| 81 |
33479 |
EXTENSION Price: $5.21 |
| 82 |
30063 |
SCREW Price: $1.26 |
| 83 |
650751 |
SCREW Price: $1.25 |
| 84 |
33775A |
BLOWER HSG Price: Call Us |
| 85 |
8274 |
WASHER Price: $1.26 |
| 86 |
650595 |
SCREW Price: $1.25 |
| 86A |
650624 |
SCREW Price: $2.49 |
| 87 |
650751 |
SCREW This part replaces 650752. Price: $1.25 |
| 88 |
35475 |
ROD TUBE Price: Call Us |
| 89 |
33481 |
O RING Price: $1.26 |
| 90 |
34754 |
ROCKER HSG Price: $71.57 |
| 94 |
33484 |
O RING Price: $1.26 |
| 95 |
650168 |
WASHER Price: $1.25 |
| 96 |
32610A |
SCREW Price: $1.26 |
| 97 |
33485 |
ROCKER ARM Price: $46.13 |
| 98 |
33486 |
RET RING Price: $1.23 |
| 99 |
650755 |
SCREW Price: $2.60 |
| 100 |
650864 |
NUT Price: $1.20 |
| 101 |
650756 |
STUD Price: $3.86 |
| 102 |
33487 |
O RING Price: $4.50 |
| 103 |
33488 |
COVER Price: $8.15 |
| 104 |
31958A |
GASKET Price: $1.71 |
| 105 |
33489 |
BREATHER Price: $31.59 |
| 106 |
33490 |
TUBE Price: Call Us |
| 107 |
30102 |
SCREW Price: $1.22 |
| 108 |
650738 |
SCREW Price: $2.60 |
| 111 |
35471 |
GASKET Price: $1.18 |
| 112 |
35472 |
BRACKET Price: $22.52 |
| 114 |
650399 |
SCREW Price: $1.20 |
| 115 |
32008 |
AIR CLEANER Price: $10.58 |
| 116A |
32810 |
CLEANER COV Price: $71.43 |
| 117 |
650825 |
NUT This part replaces 650513. Price: $1.25 |
| 119 |
31992 |
SPACER Price: $2.62 |
| 120 |
33776 |
SCREEN Price: Call Us |
| 122 |
650680 |
SCREW Price: $1.25 |
| 123 |
27070 |
WASHER Price: $1.23 |
| 125 |
650590 |
NUT Price: Call Us |
| 127 |
32143 |
PIPE NIPPLE Price: Call Us |
| 146 |
32577 |
CYL COVER Price: $36.97 |
| 147 |
792028 |
Screw, 5/16-18 x 7/8" Price: Call Us |
| 150B |
650399 |
SCREW Price: $1.20 |
| 152A |
610965 |
STATOR ASSY Price: $105.48 |
| 155 |
31971 |
GASKET Price: $3.00 |
| 156 |
31972 |
GASKET Price: $1.74 |
| 157 |
32031 |
SPACER Price: $2.62 |
| 158 |
610118 |
PLUG COVER Price: $4.45 |
| 159 |
610750 |
GROMMET Price: $1.18 |
| 160 |
610408 |
NUT Price: Call Us |
| 161 |
610908 |
TERMINAL Price: Call Us |
| 164 |
33356 |
TERMINAL Price: $1.26 |
| 165 |
650760 |
SCREW Price: $1.17 |
| 166 |
28545 |
GROMMET Price: $1.26 |
| 167 |
650890 |
WASHER Price: $1.25 |
| 167A |
26073 |
WASHER Price: Call Us |
| 168 |
32039 |
STOP LEVER Price: Call Us |
| 169A |
27793 |
CLIP Price: $1.26 |
| 170 |
28942 |
SCREW Price: $0.88 |
| 171 |
29634 |
FUEL FITTING Price: $3.89 |
| 189 |
33069 |
DIPSTICK Price: $6.54 |
| 190 |
29673 |
GASKET Price: $1.26 |
| 193 |
29443 |
CLIP Price: $1.26 |
| 244 |
36261 |
DECAL This part replaces 34346. Price: Call Us |
| 244A |
34768 |
DECAL Price: Call Us |
| 244B |
31752 |
DECAL Price: Call Us |
| 246 |
631687 |
INLET NEEDLE Price: $17.46 |
| 247 |
632159C |
CARBURETOR This part replaces 632159. Price: $135.78 |
| 250 |
33516G |
GASKET SET Price: $75.00 |
