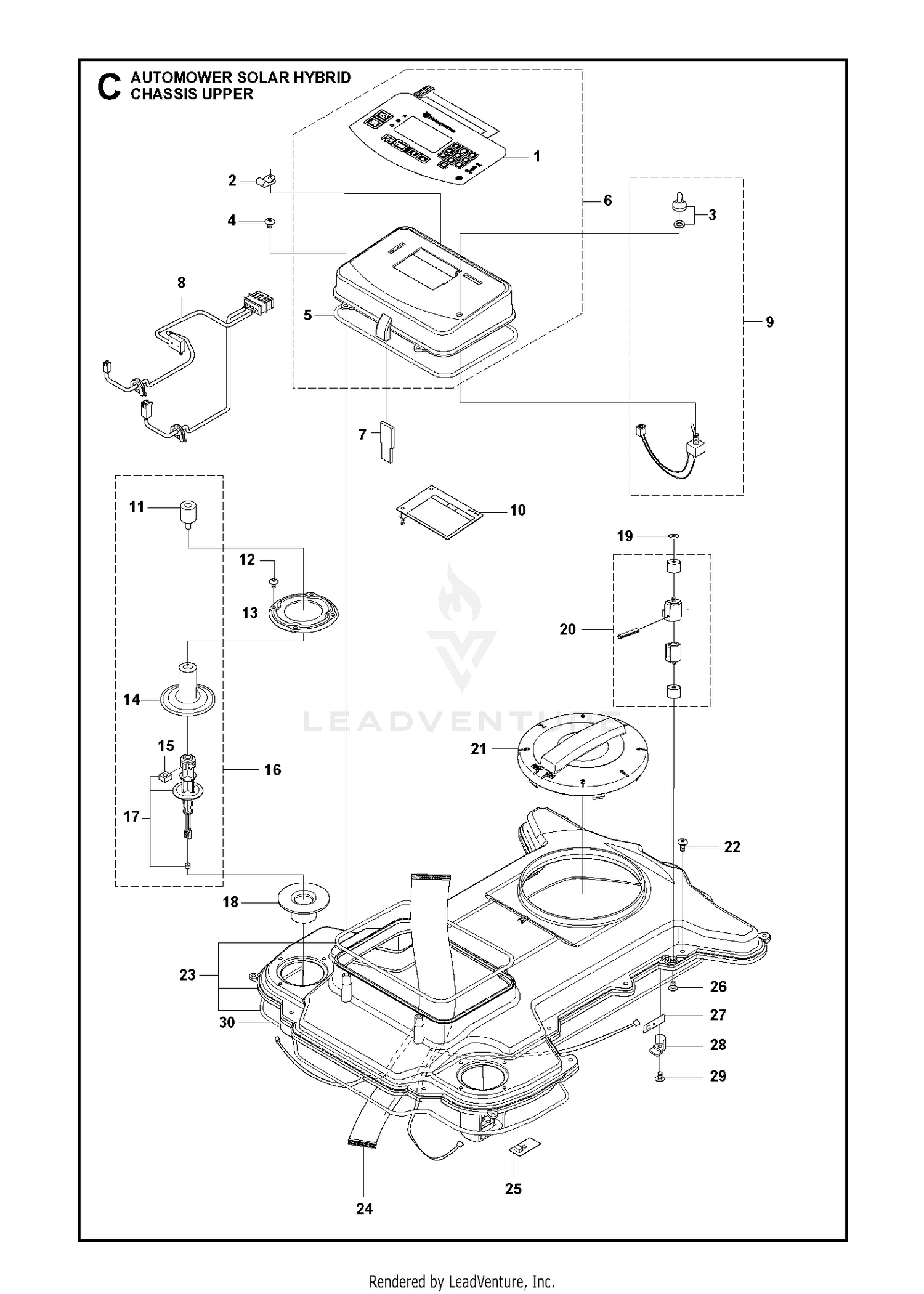

CHASSIS UPPER
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 544900101 | KEYPAD Price: $37.99 |
| 2 | 577527201 | CABLE CLAMP Price: $2.99 |
| 3 | 535101701 | RUBBER HOOD ON/OFF SWITCH Price: $11.99 |
| 4 | 574450101 | SCREW ITXPANT Price: $3.99 |
| 6 | 575944204 | Price: Call Us |
| 7 | 535144701 | FILTER Price: $2.99 |
| 8 | 505457903 | Price: Call Us |
| 9 | 535123901 | BRAKER Price: $27.99 |
| 10 | 540060303 | DISPLAY Price: $139.99 |
| 11 | 577670601 | DAMPER RUBBER Price: $6.99 |
| 12 | 575543314 | SCREW 14MM Price: $3.99 |
| 13 | 505174301 | RING FASTENER Price: $6.99 |
| 14 | 577525801 | RUBBER GAITERS Price: $17.99 |
| 15 | 503226601 | NUT Price: $3.99 |
| 16 | 577598403 | COLUMN REAR COLLISION COLUMN Price: $29.99 |
| 17 | 501122602 | JOYSTICK KIT REAR This part replaces 579248801. Price: $14.99 |
| 18 | 535143201 | MOVEMENT LIMITER Price: $9.99 |
| 19 | 510747000 | LOCKWASHER Price: $2.99 |
| 20 | 544141501 | LIFT SENSOR COMP Price: $24.99 |
| 21 | 535122201 | STEERING WHEEL Price: $17.99 |
| 22 | 574450101 | SCREW ITXPANT Price: $3.99 |
| 23 | 575943801 | CHASSIS UPPER Price: $49.99 |
| 24 | 544126901 | MAIN RIBBON HARNESS Price: $32.99 |
| 25 | 578789003 | PRINTED CIRCUIT ASSY This part replaces 578789001. Price: $11.99 |
| 26 | 535076002 | SCREW Price: $2.99 |
| 27 | 578789003 | PRINTED CIRCUIT ASSY This part replaces 578789001. Price: $11.99 |
| 28 | 535127901 | BRACKET Price: $6.99 |
| 29 | 575543314 | SCREW 14MM Price: $3.99 |
