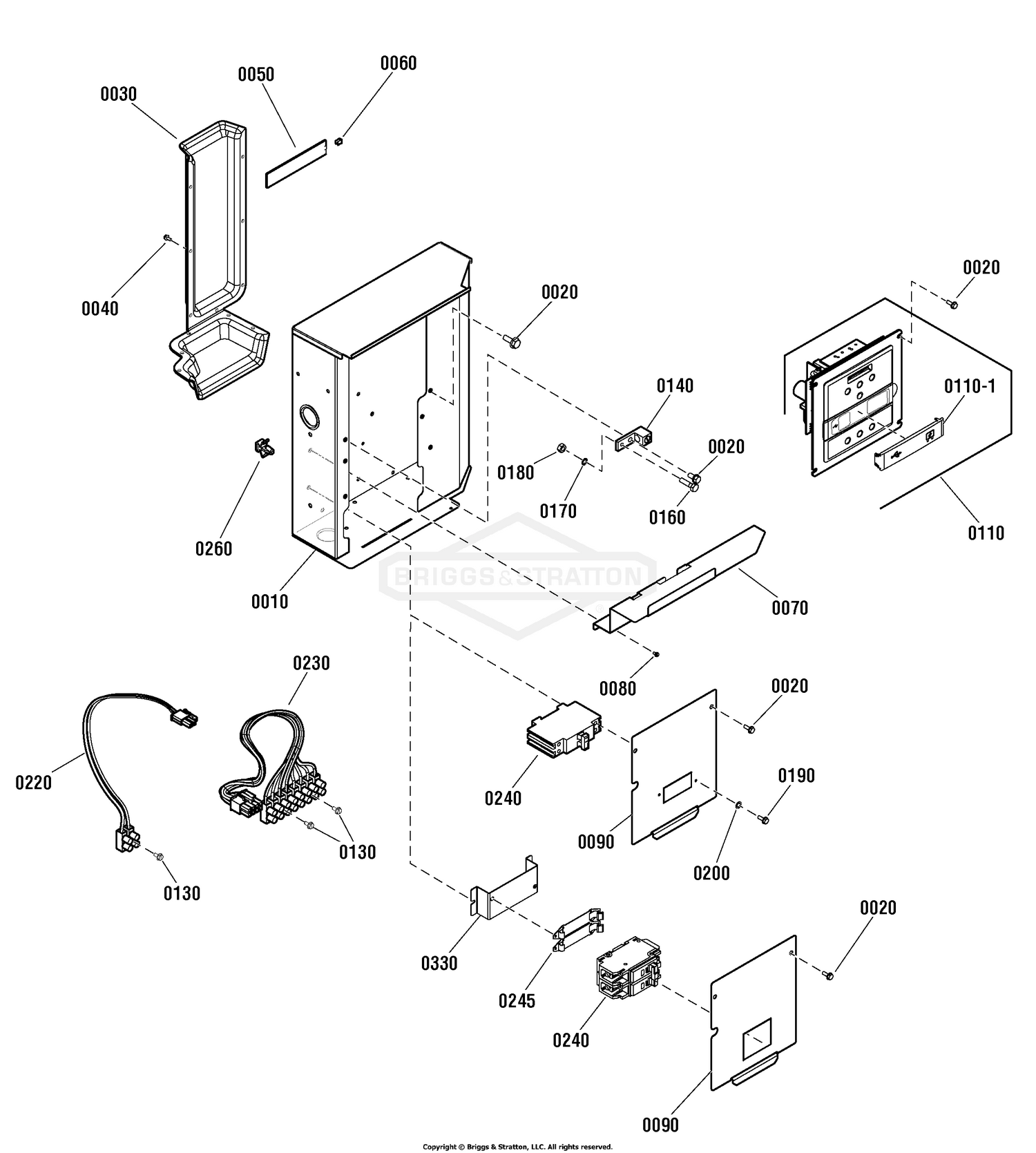

Control Panel Group

Control Panel Group

Parts (14)

RefPart NumberDescription
0010 706026 BOX-CONTROL PANEL This part replaces 316852GS. Price: $190.86
0020 200020GS SCREW, Trilobular, #10-32 x 1/2 Price: $3.81
0030 316861GS DUCT, Control Box Price: $88.38
0040 704130 SCREW, HEX, 1/4-20X.5 This part replaces B4300GS. Price: $3.28
0050 316862GS PANEL, Duct Price: $8.19
0060 314661GS CLIP Price: $4.60
0070 316853GS DIVIDER-CONTROL BOX Price: $40.99
0080 194561GS HHS, Trilobular, #10-32 x 3/8 Price: $2.79
0130 314691GS SCREW, Taptite, M2.5-.45 X 12 Price: $3.48
0140 199011GS LUG, Ground Connect Price: $7.39
0170 26850GS WASHER, Ext. M6 - 1/4" Shakeproof Price: $2.60
0220 316812GS HARNESS, Wiring Price: $25.62
0230 316813GS HARNESS, Wiring, Control Panel Price: $67.22
0260 195733GS MOUNT, Tie Wrap Price: $2.79
