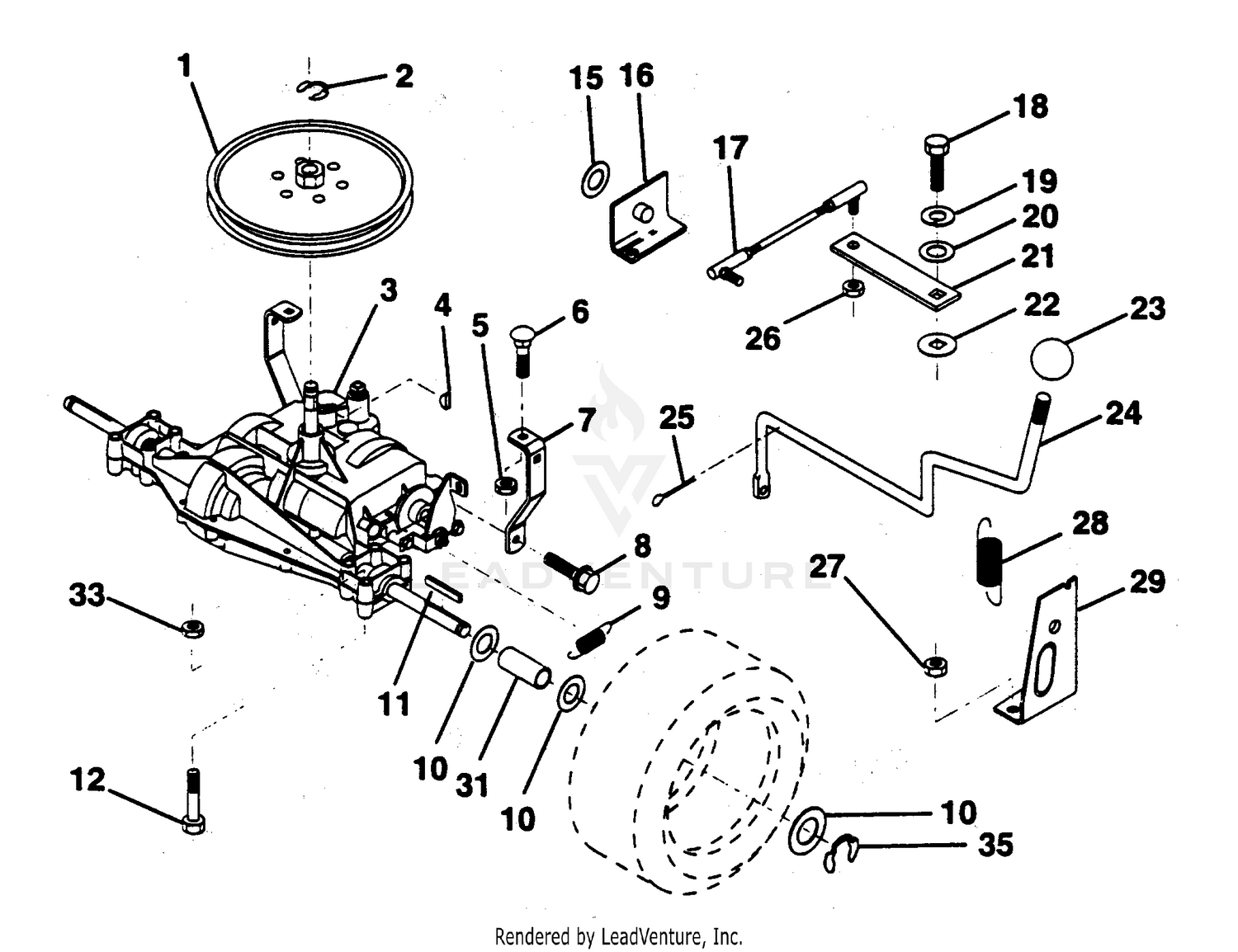

| Ref | Part Number | Description |
|---|
| 1 |
32128-20 |
NUT-HF Price: $0.99 |
| 1 |
532123385 |
Pulley Price: $22.99 |
| 2 |
532002267 |
Ring, Retaining This part replaces 812000028. Price: $3.99 |
| 2 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 3 |
323-9 |
SCREW-HH Price: $1.29 |
| 3 |
532142602 |
Transaxle, Dana 5 Spd. Model No. 4360-78 Price: $739.50 |
| 4 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 4 |
532125096 |
Key, Woodruff #9 Price: $3.99 |
| 5 |
138-6335 |
RETAINER-BATTERY This part replaces 66-2490. Price: $10.49 |
| 5 |
873800500 |
Locknut, Hex W/Ins. 5/16-18 Price: $2.69 |
| 6 |
145-2823 |
BATTERY - CORROSIVE This part replaces 106-5187. Price: $195.94 |
| 6 |
539990316 |
RHSNB.5/16-18.X3/4.GR.5.ZD This part replaces 872140506. Price: $1.49 |
| 7 |
532123378 |
Strap, Torque Price: $2.99 |
| 7 |
94-7343 |
BASE-BATTERY Price: $118.61 |
| 8 |
539976934 |
HCS.5/16-18X3/4 This part replaces 817490512. Price: $1.99 |
| 8 |
95-1592-03 |
BRACKET-BASE, BATTERY Price: $34.16 |
| 9 |
532146682 |
Spring Return Brake This part replaces 532110422. Price: $4.99 |
| 9 |
95-6270-03 |
BRACKET-MOUNT, ENGINE Price: $107.07 |
| 10 |
532121749 |
Washer 25/32 x 1-1/4 x 16 Ga. Price: $1.99 |
| 10 |
63-7141 |
MOUNT-SHOCK, ENGINE Price: $61.74 |
| 11 |
532123583 |
Key, Square Price: $2.69 |
| 11 |
95-1599-03 |
BRACKET-BASE, BATTERY Price: $36.74 |
| 12 |
322-6 |
SCREW-HH Price: $0.45 |
| 12 |
874760644 |
Bolt, Fin Hex 3/8-16 UNC 2-3/4 Price: $3.99 |
| 13 |
104-0086 |
CABLE-BATTERY, POSITIVE Price: $78.07 |
| 14 |
105-0040 |
CABLE-BATTERY, NEGATIVE Price: $51.76 |
| 15 |
532052160 |
Washer This part replaces 819171616. Price: $3.99 |
| 16 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 16 |
532124600 |
Support Handle Shift LH Price: $2.38 |
| 17 |
3213-2 |
SCREW-HH Price: $1.90 |
| 17 |
532123632 |
Link, Shift Price: $14.99 |
| 18 |
871040412 |
Bolt, Fin Hex 1/4-28 UNF x 3/4 Gr. 8 Price: $3.99 |
| 18 |
93-7276 |
DECAL-DANGER Price: $15.13 |
| 19 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 19 |
810040400 |
Washer, Lock 1/4 Price: $3.99 |
| 20 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 20 |
734115201 |
WASHER - M6 This part replaces 819091210. Price: $1.99 |
| 21 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 21 |
532123484 |
Arm, Shift Price: $2.38 |
| 22 |
532105701 |
Washer, Shift Plate Price: $3.99 |
| 22 |
95-6271-03 |
BRACKET-MOUNT, ENGINE Price: $132.62 |
| 23 |
532106933 |
Knob, Rd 1/2-13 Price: $3.99 |
| 23 |
63-7142 |
MOUNT-SHOCK, ENGINE Price: $86.11 |
| 24 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 24 |
532128215 |
Rod Shift Price: $20.99 |
| 25 |
323-11 |
SCREW-HH Price: $1.08 |
| 25 |
876020416 |
Pin, Cotter 1/8 x 1 Price: $3.99 |
| 26 |
63-7400 |
WASHER-REBOUND Price: $1.70 |
| 26 |
873610500 |
NUT This part replaces 873810500. Price: Call Us |
| 27 |
3274-96 |
SCREW-HSBH Price: $2.37 |
| 27 |
873800500 |
Nut Lock Hex W/Ins. 5/16-18 Unc P This part replaces 873510500. Price: $2.69 |
| 28 |
3234-30 |
SCREW-HHF Price: $0.41 |
| 28 |
532128085 |
Extension, Spring Price: $4.99 |
| 29 |
532128084 |
Support Handle Shift RH Price: $2.38 |
| 30 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 31 |
532109502 |
Spacer Axle Price: $3.99 |
| 31 |
98-3883 |
CLAMP-WIRE Price: $0.81 |
| 32 |
105-2513-03 |
MOUNT-AIR CLEANER Price: $138.20 |
| 33 |
105-7848-03 |
BRACKET-MOUNT, ENGINE Price: $110.60 |
| 33 |
873680600 |
Nut This part replaces 873800600. Price: $1.99 |
| 34 |
80-7730 |
SPACER Price: $1.97 |
| 36 |
43-4300 |
TRIM-FRAME, REAR Price: $13.54 |
