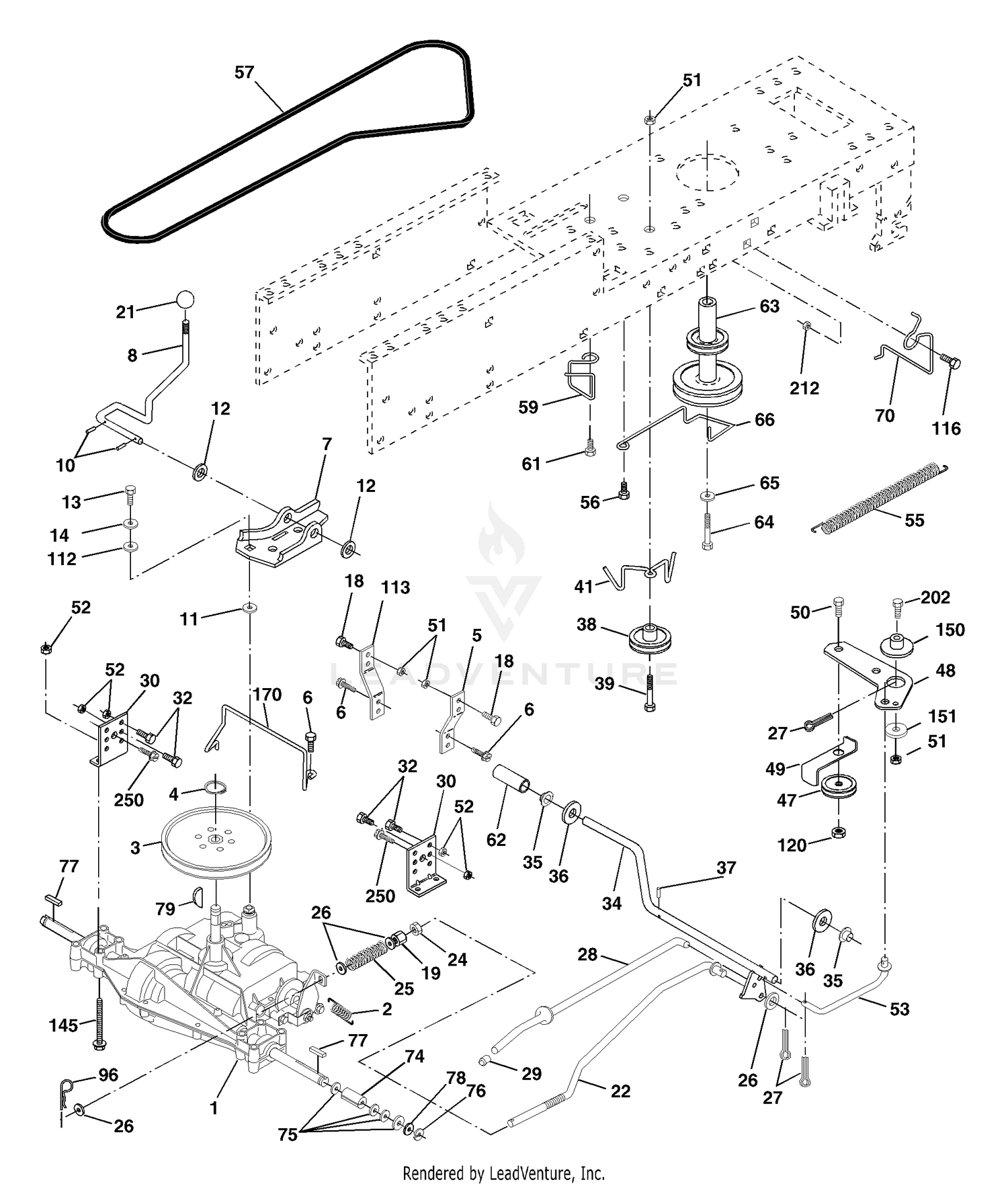

| Ref | Part Number | Description |
|---|
| 2 |
146682 |
Spring Return Brake Price: Call Us |
| 3 |
123666X |
Pulley Transaxle 18" tires Price: Call Us |
| 4 |
12000028 |
Ring Retainer # 5100-62 Price: Call Us |
| 5 |
121520X |
Strap Torque 30 Degrees RH Price: Call Us |
| 6 |
17060512 |
Screw 5/16-18 x 3/4 Price: Call Us |
| 7 |
162240 |
Plate Rod Shift T/a Price: Call Us |
| 8 |
131679 |
Rod Shifter Blk Price: Call Us |
| 010 |
112-8417 |
GEARCASE ASM This part replaces 100-9161. Price: $1,717.33 |
| 10 |
76020416 |
Pin Cotter 1/8 X 1 Cad Price: Call Us |
| 11 |
105701X |
Washer Plate Shf 388 Sq Hole Price: Call Us |
| 12 |
19151216 |
Washer 15/32 X 3/4 X 16 Ga Price: Call Us |
| 13 |
74550412 |
Bolt 1/4-28 unf Gr. 8 w/Patch Price: Call Us |
| 14 |
10040400 |
Washer Lock Hvy Helical 1/4 Price: Call Us |
| 18 |
74780616 |
Bolt Fin Hex 3/8-16unc X 1 Gr. 5 Price: Call Us |
| 19 |
73800600 |
Nut lock Hex w/Ins 3/8-16 Unc Price: Call Us |
| 020 |
107-0108 |
PLUG This part replaces 98-7546. Price: $2.84 |
| 21 |
106933X |
Knob Rd 1/2-13 Plstc Thds Blk Price: Call Us |
| 22 |
130804 |
Rod Brake LT Price: Call Us |
| 24 |
73350600 |
Nut Hex Jam 3/8-16 Unc Price: Call Us |
| 25 |
106888X |
Spring Rod Brake 2 00 Zinc Price: Call Us |
| 26 |
19131316 |
Washer 13/32 X 13/16 X 16 Ga Price: Call Us |
| 27 |
76020412 |
Pin Cotter 1/8 X 3/4 Cad Price: Call Us |
| 28 |
175765 |
Rod Brake Parking LT/YT Price: Call Us |
| 29 |
71673 |
Cap Brake Parking Black Price: Call Us |
| 030 |
98-7547 |
O-RING Price: $0.92 |
| 30 |
174973 |
Bracket Transmission Price: Call Us |
| 32 |
74760512 |
Bolt Fin Hex 5/16-18 x 3/4 Price: Call Us |
| 34 |
175578 |
Shaft Asm Pedal Foot Nibbed Price: Call Us |
| 35 |
120183X |
Bearing Nylon Blk 629 Id Price: Call Us |
| 36 |
19211616 |
Washer 21/32 X 1 X 16 Ga Price: Call Us |
| 37 |
1572H |
Pin Roll 3/16 X 1" Price: Call Us |
| 38 |
179114 |
Pulley Composite Flat Price: Call Us |
| 39 |
74760648 |
Bolt Fin Hex 3/8-16 x 3 Price: Call Us |
| 040 |
98-7548 |
O-RING Price: $1.09 |
| 41 |
175556 |
Keeper Belt Idler Price: Call Us |
| 47 |
127783 |
Pulley Idler V Groove Plastic Price: Call Us |
| 48 |
154407 |
Bellcrank Clutch Grnd Drv STL Price: Call Us |
| 49 |
123205X |
Retainer Belt Style Spring Price: Call Us |
| 050 |
98-7549 |
O-RING Price: $1.50 |
| 50 |
72110612 |
Bolt Carr Sh 3/8-16 x 1-1/2 Gr. 5 Price: Call Us |
| 51 |
73680600 |
Nut Crownlock 3/8-16 Unc Price: Call Us |
| 52 |
73680500 |
Nut Crownlock 5/16-18 unc Price: Call Us |
| 53 |
105710X |
Link Clutch 7 66 Price: Call Us |
| 55 |
105709X |
Spring Return Clutch 6 75 Price: Call Us |
| 56 |
17060620 |
Screw 3/8-16 x 1-1/4 Price: Call Us |
| 57 |
130801 |
V-Belt Ground Drive 95 Price: Call Us |
| 59 |
169691 |
Keeper Belt Chassis Span Ctr Price: Call Us |
| 060 |
98-7550 |
PIN-SPRING, START Price: $7.65 |
| 61 |
17120614 |
Screw 3/8-16 x .875 Price: Call Us |
| 62 |
8883R |
Cover Pedal Blk Round Price: Call Us |
| 63 |
175410 |
Engine Pulley LT/YT Price: Call Us |
| 64 |
71170764 |
Bolt Hex 7/16-20x4 Gr 5 Price: Call Us |
| 65 |
10040700 |
Washer Lock Hvy Hlcl Spr 7/16 Price: Call Us |
| 66 |
154778 |
Keeper Belt Engine Price: Call Us |
| 070 |
98-7504 |
PIN-STRAIGHT Price: $0.72 |
| 70 |
134683 |
Guide Belt Mower Drive RH Price: Call Us |
| 74 |
137057 |
Spacer Axle Price: Call Us |
| 75 |
121749X |
Washer 25/32 X 1 1/4 X 16 Ga Price: Call Us |
| 76 |
12000001 |
E-ring #5133-75 Price: Call Us |
| 77 |
123583X |
Key Square 2 0 X 1845/ 1865 Price: Call Us |
| 78 |
121748X |
Washer 25/32 X 1-5/8 X 16 Ga Price: Call Us |
| 79 |
2228M |
Key Woodruff Price: Call Us |
| 080 |
98-7552 |
PACKING-CASE, GEAR Price: $44.07 |
| 090 |
98-7553 |
BOLT Price: $0.73 |
| 96 |
4497H |
Retainer Spring 1" Price: Call Us |
| 100 |
99-8336 |
BOLT Price: $3.41 |
| 110 |
98-7555 |
BOLT Price: $4.93 |
| 112 |
19091210 |
Washer 9/32 X 3/4 X 10 Ga Price: Call Us |
| 113 |
127285X |
Strap Torque 90 Degrees LH Price: Call Us |
| 116 |
72140608 |
Bolt Rdhd Sq Neck 3/8-16 x 1 Price: Call Us |
| 120 |
73900600 |
Nut Lock Flg 3/8-16 Price: Call Us |
| 120 |
98-7556 |
BOLT Price: $2.07 |
| 130 |
98-7557 |
BOLT Price: $3.62 |
| 140 |
98-7558 |
BOLT Price: $1.60 |
| 145 |
74490540 |
Bolt Hex Flg.Hd. 5/16-18 x Gr.5 Price: Call Us |
| 150 |
175456 |
Spacer Retainer Lt Price: Call Us |
| 150 |
3253-4 |
WASHER-LOCK This part replaces 99-8339. Price: $0.25 |
| 151 |
19133210 |
Washer 13/32 x 2 x 10 Ga. Price: Call Us |
| 160 |
98-7536 |
WASHER-PLAIN Price: $0.28 |
| 170 |
178394 |
Keeper, Belt Transaxle Price: Call Us |
| 190 |
98-7563 |
SPRING Price: $2.74 |
| 200 |
98-7564 |
SEAT-VALVE Price: $9.15 |
| 202 |
72110614 |
Bolt Carr Sh 3/8-16 x 1-3/4 Gr.5 Price: Call Us |
| 210 |
98-7565 |
BALL Price: $0.33 |
| 212 |
145212 |
Nut Hex Flg Lock Price: Call Us |
| 220 |
98-7566 |
FLANGE-RETURN, WATER Price: $59.56 |
| 230 |
115-8521 |
GASKET-FLANGE, RETURN This part replaces 98-7567. Price: $2.63 |
| 240 |
98-7568 |
BOLT Price: $0.84 |
| 250 |
98-7569 |
COVER Price: $6.40 |
| 260 |
98-7570 |
GASKET-METER, HOUR Price: $12.56 |
| 270 |
98-7571 |
STUD Price: $2.00 |
| 280 |
98-7572 |
NUT Price: $0.32 |
| 290 |
98-7699 |
WASHER-SPRING Price: $0.44 |
| 300 |
100-9162 |
FLANGE-FILTER, OIL Price: $27.60 |
| 310 |
100-9163 |
GASKET Price: $3.22 |
| 320 |
98-7571 |
STUD Price: $2.00 |
| 330 |
100-9164 |
STUD Price: $1.45 |
| 340 |
100-9165 |
COLLAR Price: $6.97 |
| 350 |
100-1765 |
BOLT This part replaces 98-7496. Price: $1.59 |
| 360 |
98-7699 |
WASHER-SPRING Price: $0.44 |
| 370 |
98-7572 |
NUT Price: $0.32 |
| 380 |
107-9075 |
PLUG-FILLER, OIL This part replaces 98-7429. Price: $7.25 |
